Mobile Telephone Microphone Replacement
WARNING: This page is about a different car, the 2010 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

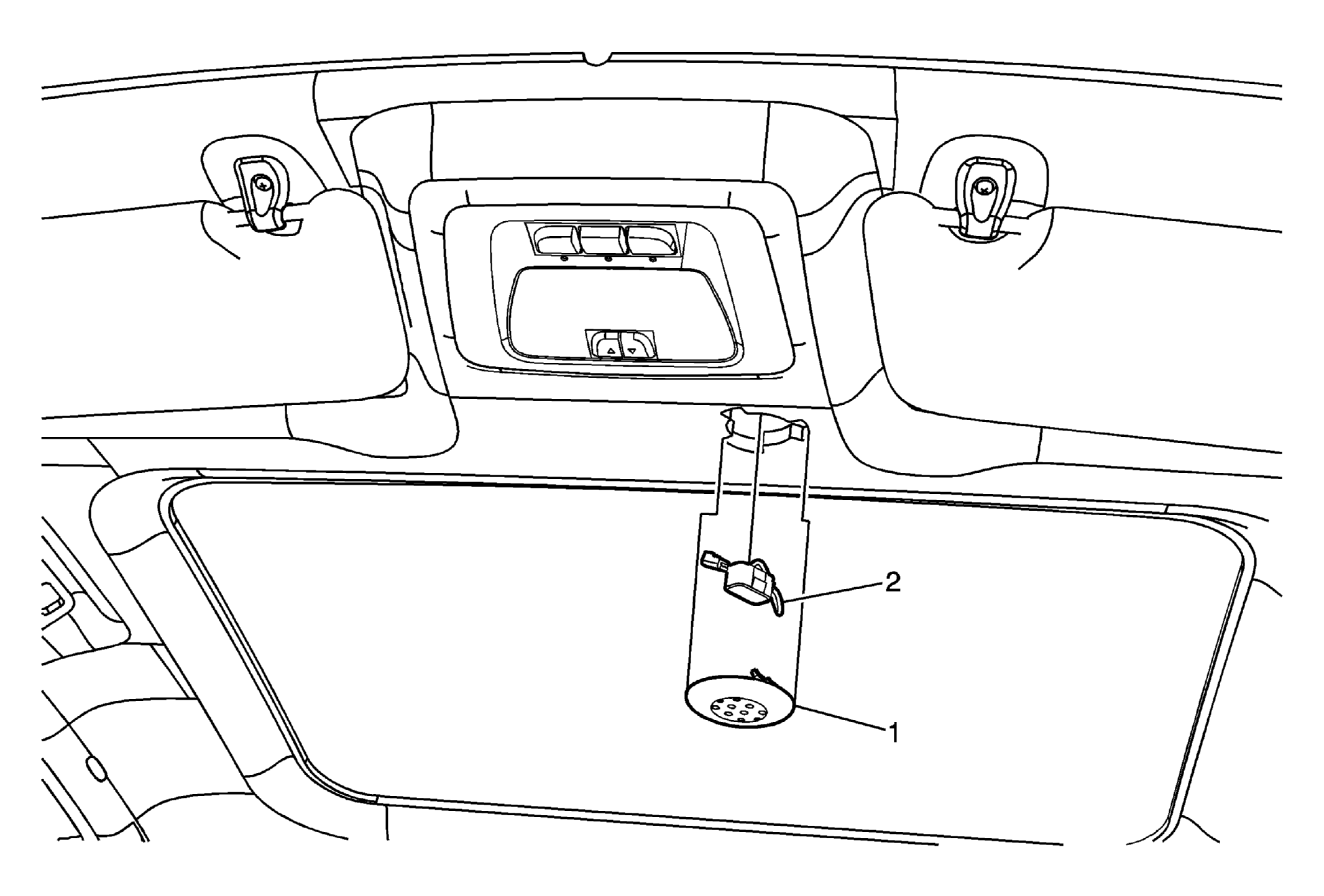

| Callout |
Component Name |
| 1 |
Mobile Telephone Microphone Bezel
Procedure:
Snap the bezel out of the headliner. |
| 2 |
Mobile Telephone Microphone
Procedure:
Disconnect the electrical connector. |
