Shift Lock Control System
›
Schematic Wiring Diagrams
›
Shift Lock Control Wiring Schematics
Shift Lock Control Wiring Schematics

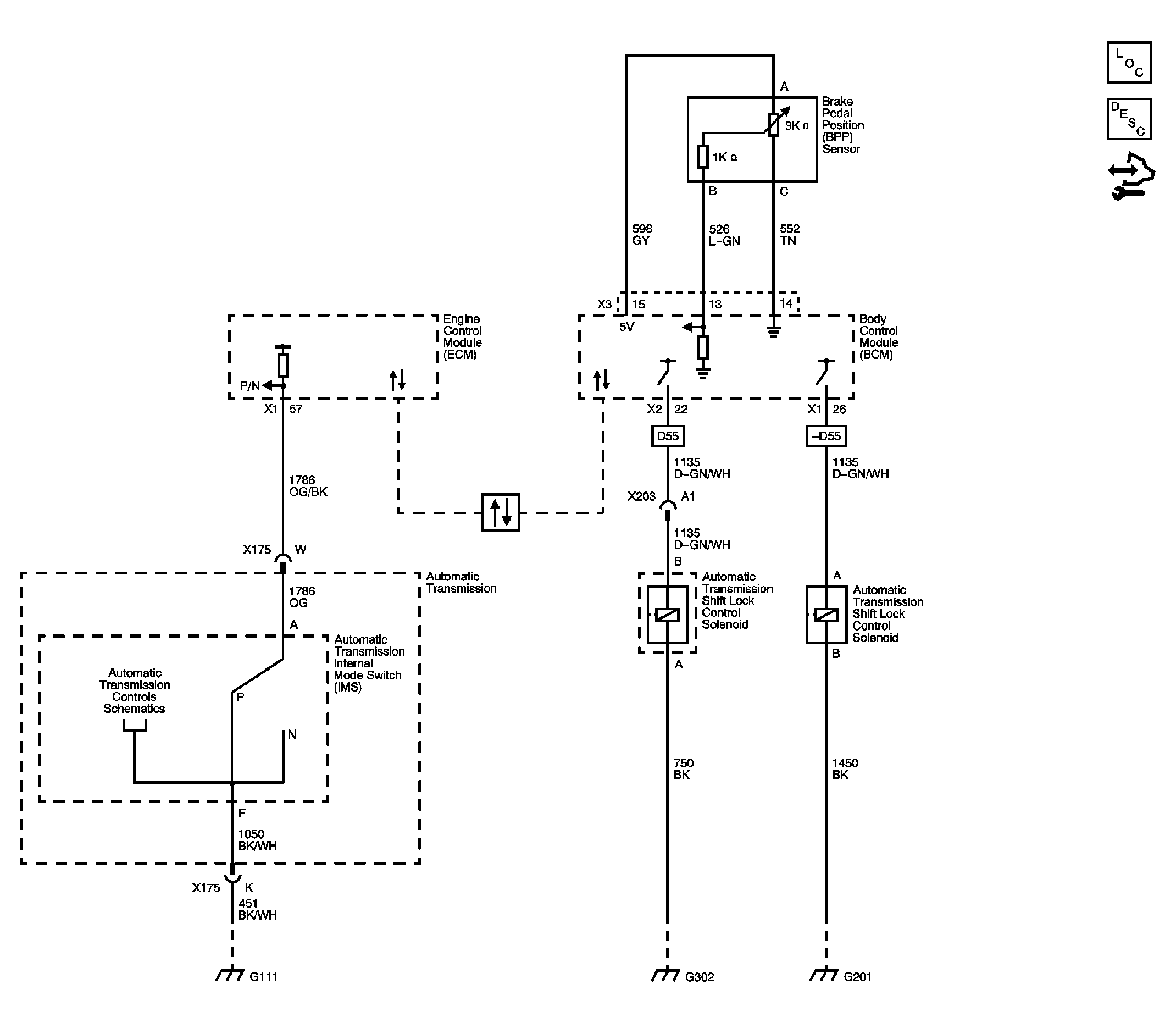

Fig 1: Shift Lock Control Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
