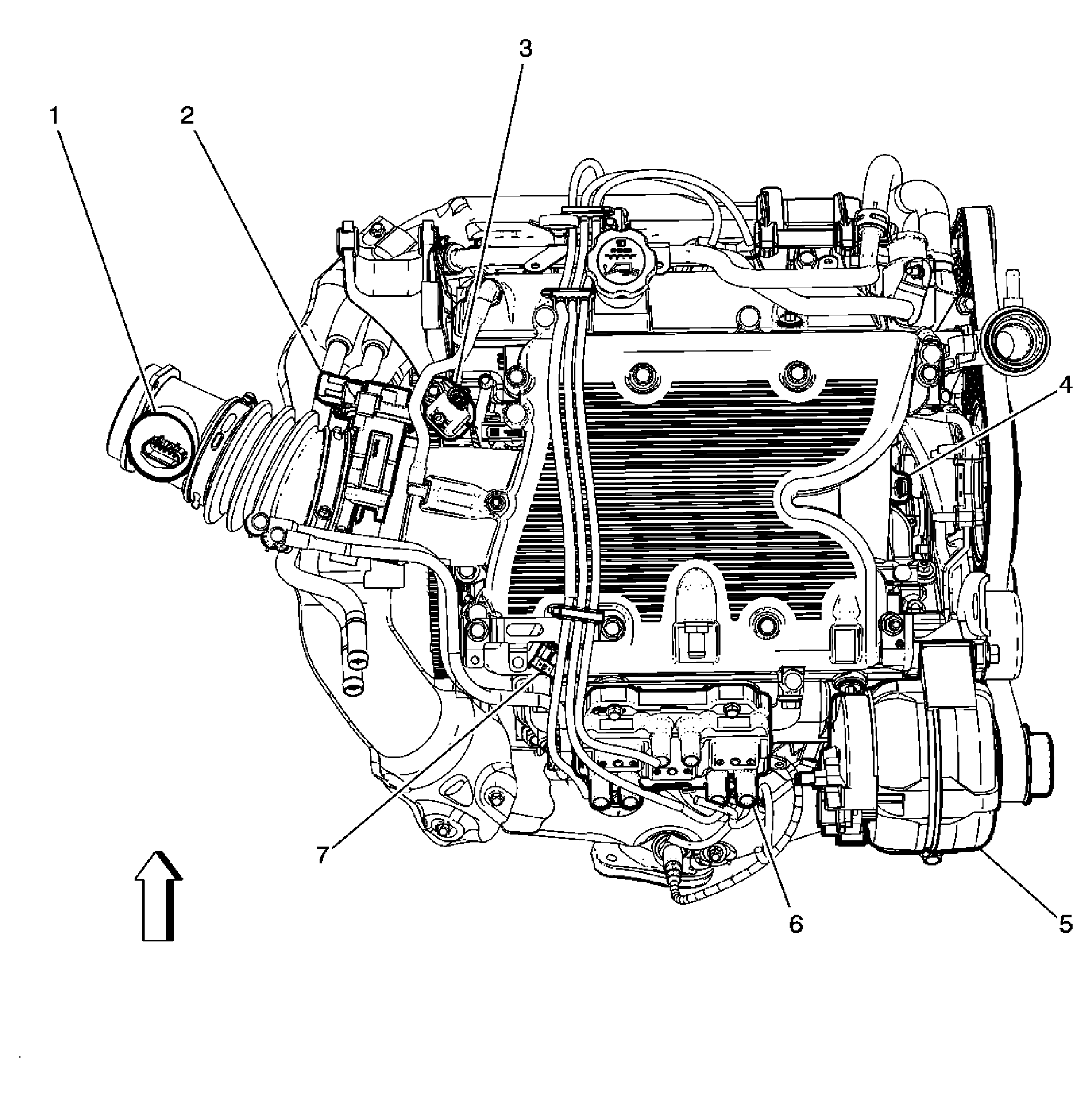

Top of the Engine Components
Top of the Engine Components
| Component Name | Callout |
|---|---|
| Mass Airflow (MAF)/Intake Air Temperature (IAT) Sensor | 1 |
| Throttle Body | 2 |
| Evaporative Emission (EVAP) Canister Purge Solenoid Valve | 3 |
| Camshaft Position (CMP) Sensor | 4 |
| Generator | 5 |
| Ignition Control Module (ICM) | 6 |
| Manifold Absolute Pressure (MAP) Sensor | 7 |
