KA1 and KB6 Subsystem References

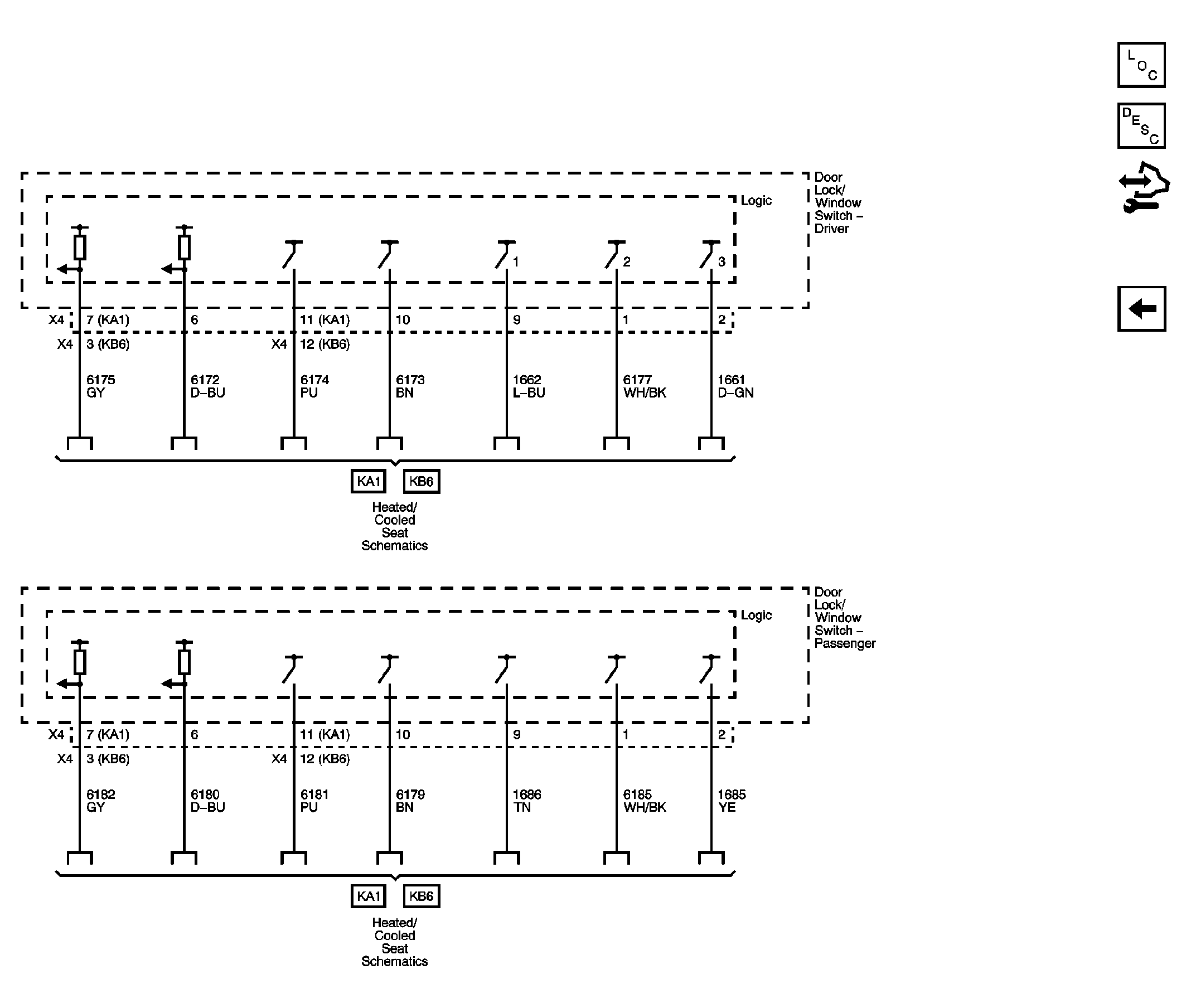

Fig 1: KA1 and KB6 Subsystem References Wiring Schematic
GM2381637Courtesy of GENERAL MOTORS CORP.
