Installation Procedure

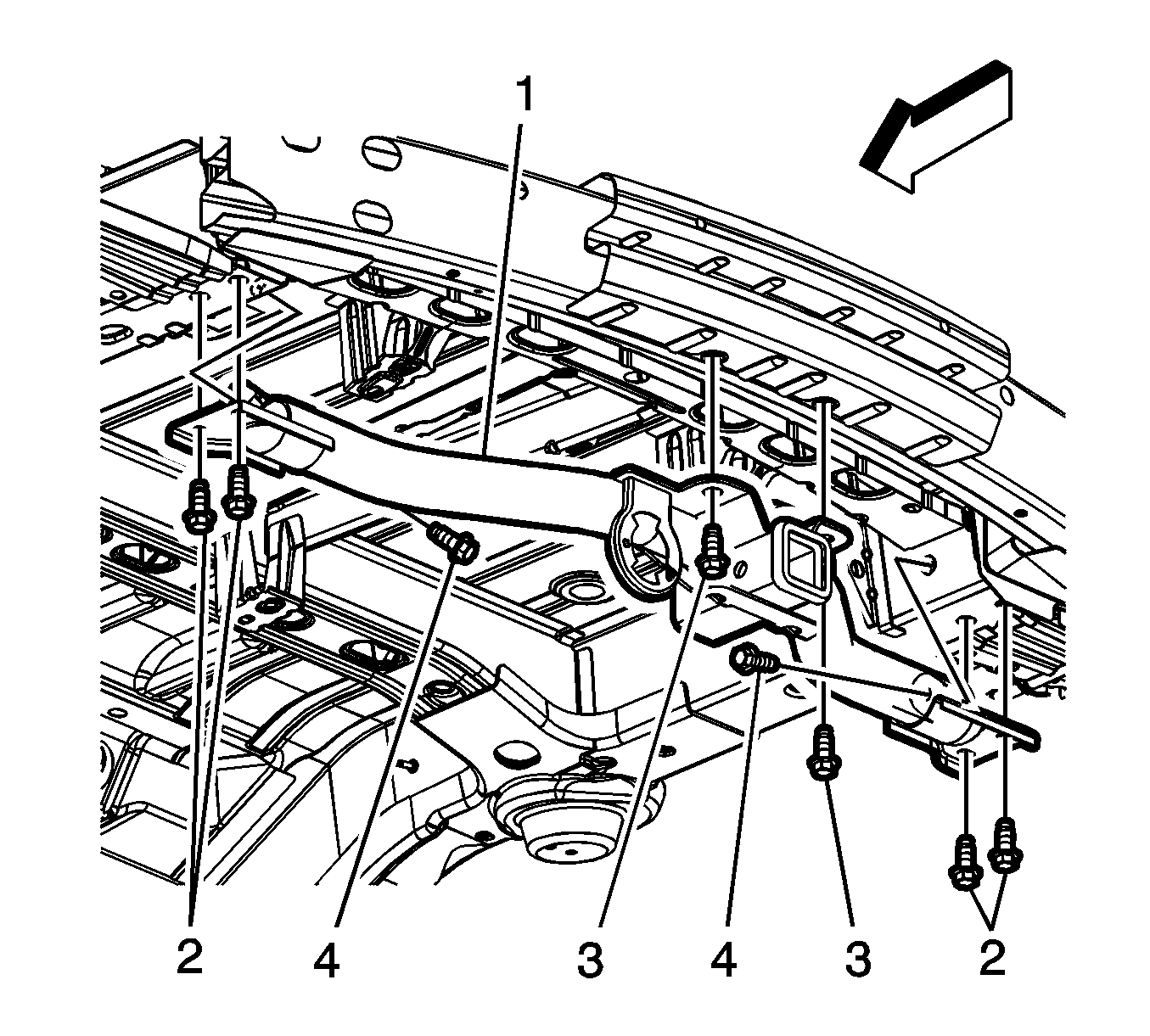

    Fig 1: View Of Trailer Hitch Bolts & Trailer Hitch
    GM1852429Courtesy of GENERAL MOTORS CORP.
  1. Install the trailer hitch (1).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the trailer hitch bolts (2-4).

    Tighten

    Tighten the bolts to 100 N.m (74 lb ft).

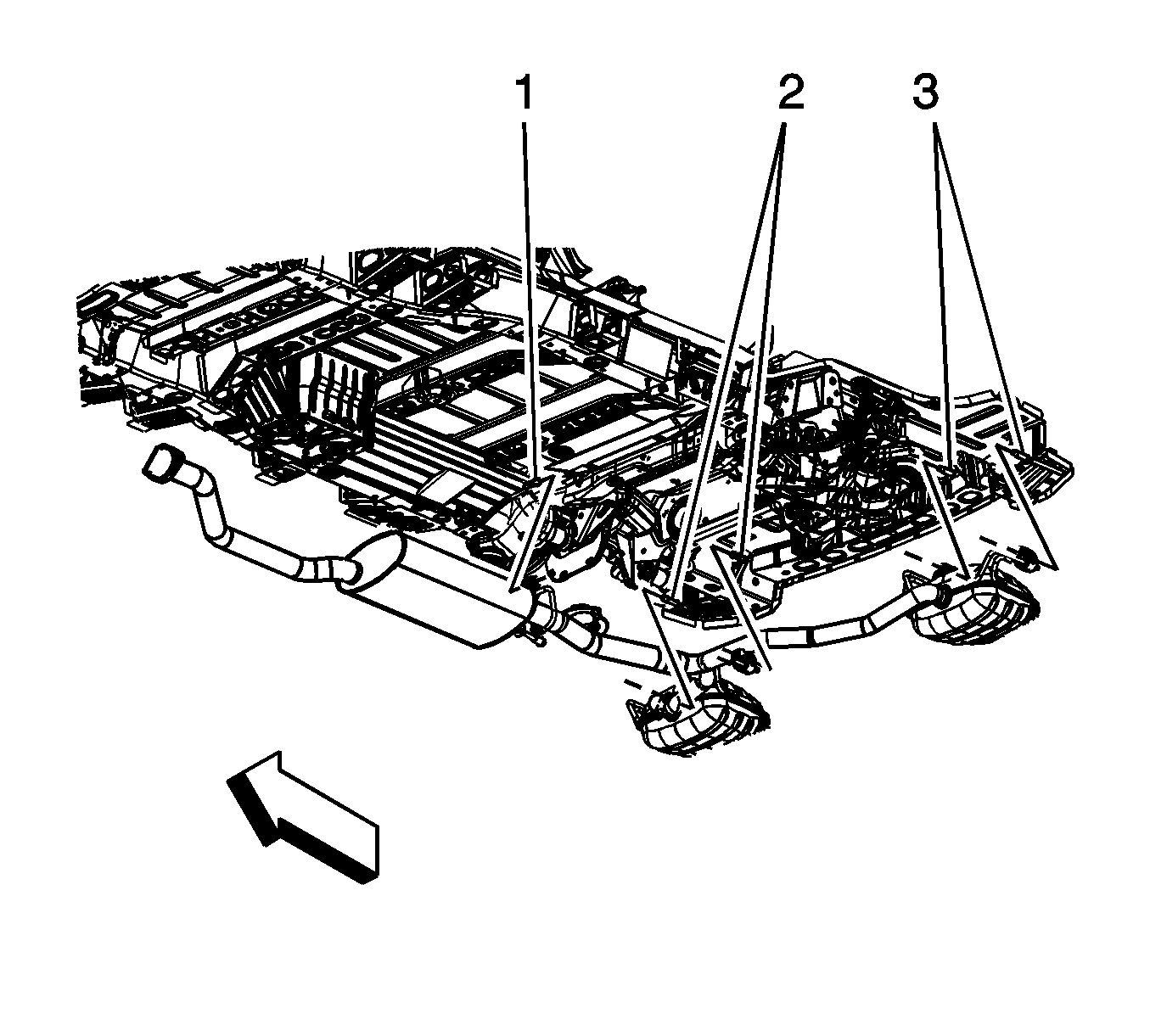

    3. Fig 2: Identifying Exhaust Underbody Hangers
    GM1861487Courtesy of GENERAL MOTORS CORP.
  3. If necessary raise the exhaust system by installing the rubber insulators to the exhaust underbody hangers (1. 2, and 3).

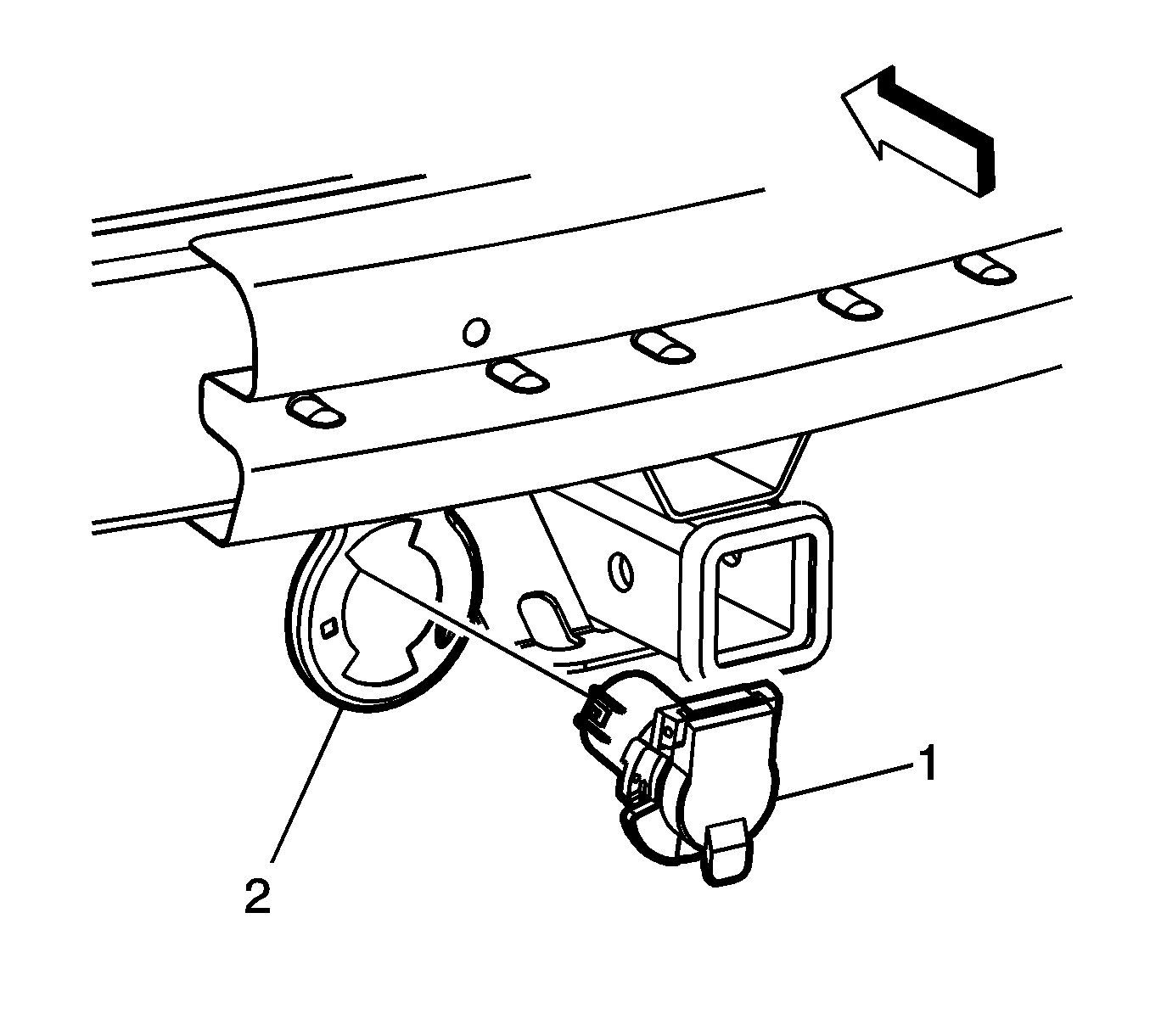

    4. Fig 3: View Of Trailer Wire Harness Connector & Trailer Hitch
    GM1852428Courtesy of GENERAL MOTORS CORP.
  4. If previously removed, install the trailer wire harness connector (1) to the trailer hitch (2).

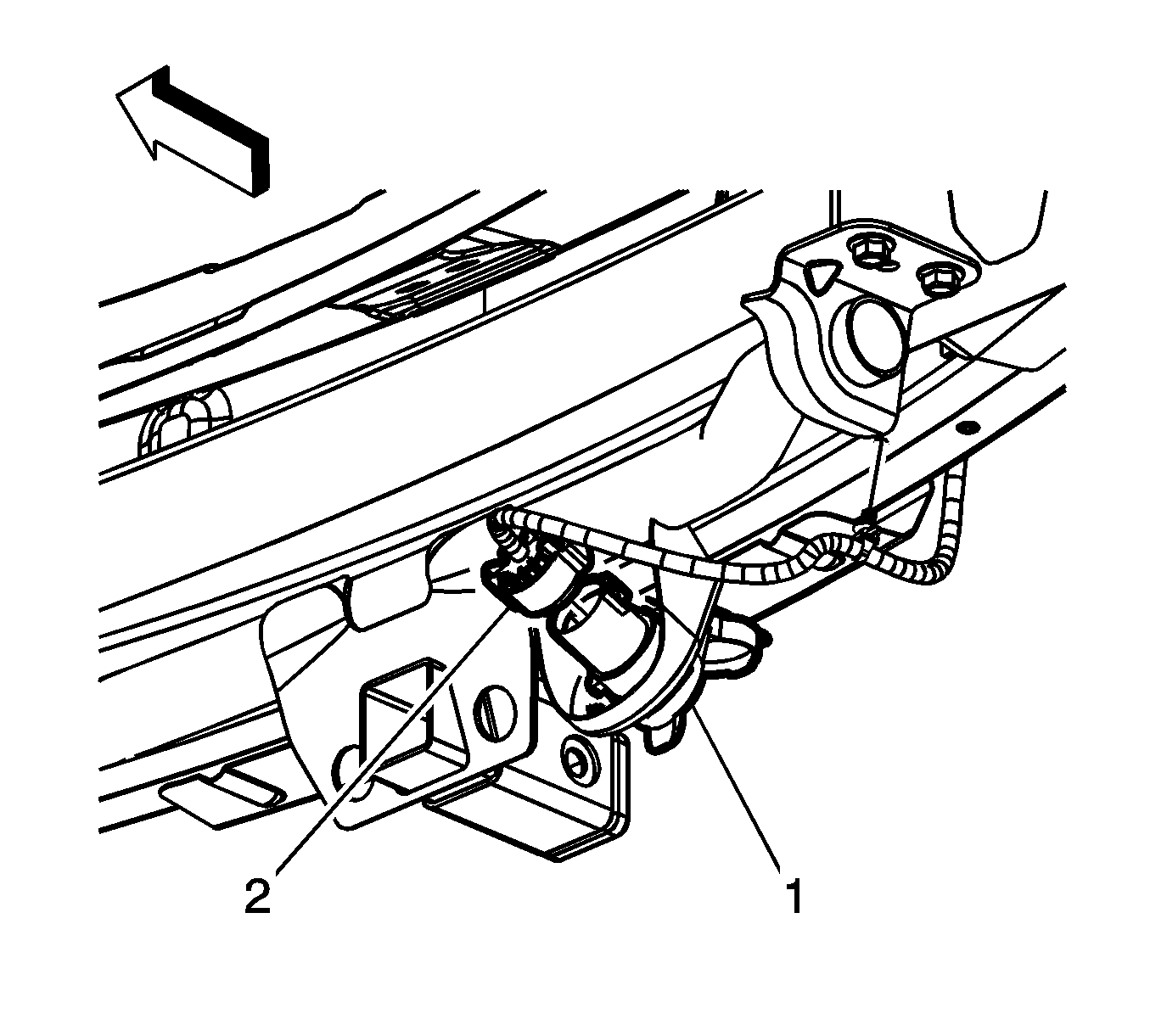

    5. Fig 4: Identifying Body Wire Harness & Trailer Wire Harness Connector
    GM1852427Courtesy of GENERAL MOTORS CORP.
  5. Connect the body wire harness (2) to the trailer wire harness connector (1).
  6. lower the vehicle.
