Traverse LS, AWD
›
Repair and Diagnosis
›
Electrical
›
Charging Systems
›
Battery, Charging System And Starting System
›
Wiring Schematics
›
Starting System and Charging System Wiring Schematics
›
Charging
Starting System and Charging System Wiring Schematics: Charging

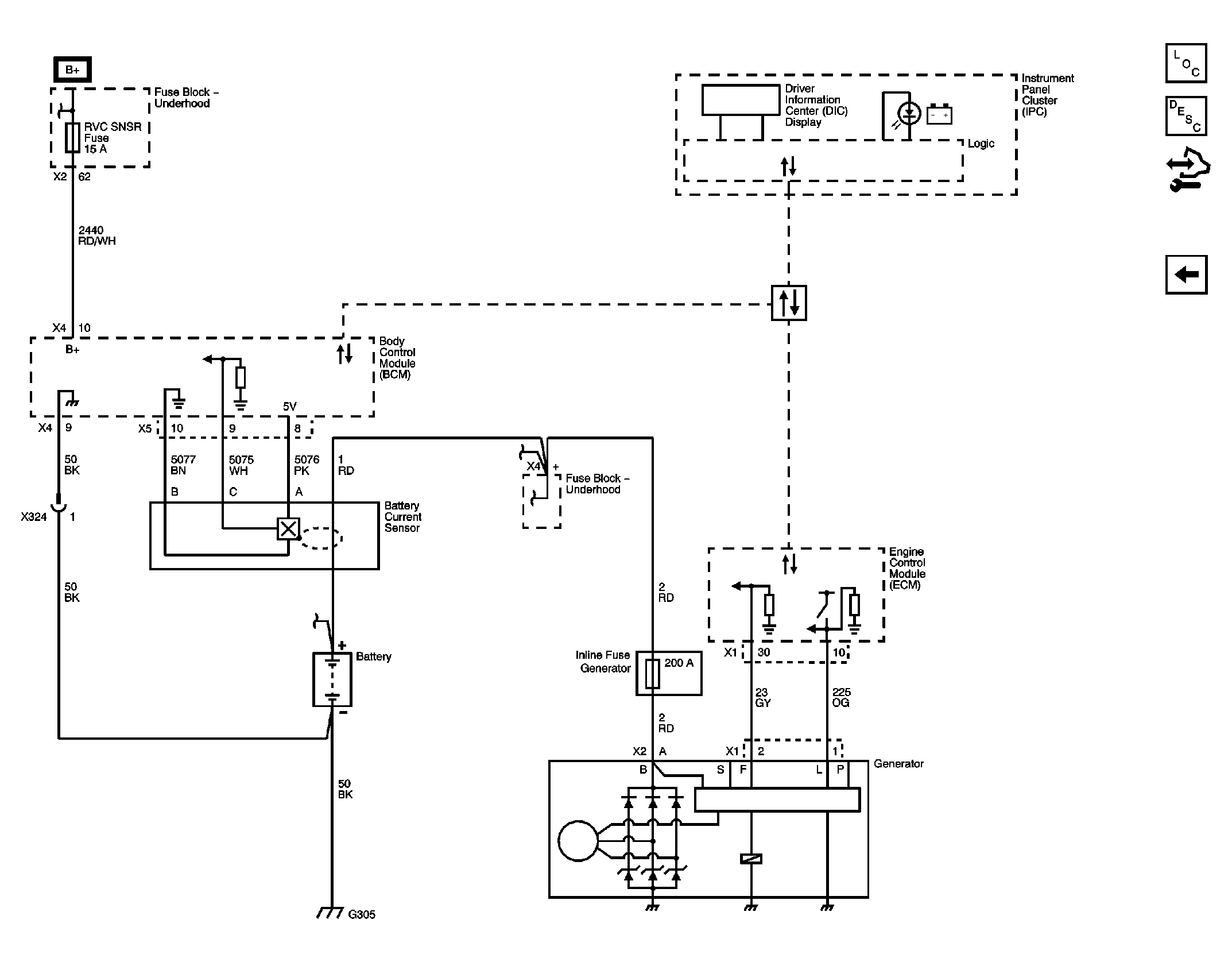

Fig 1: Charging System Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
