Starting System and Charging System Wiring Schematics: Starting

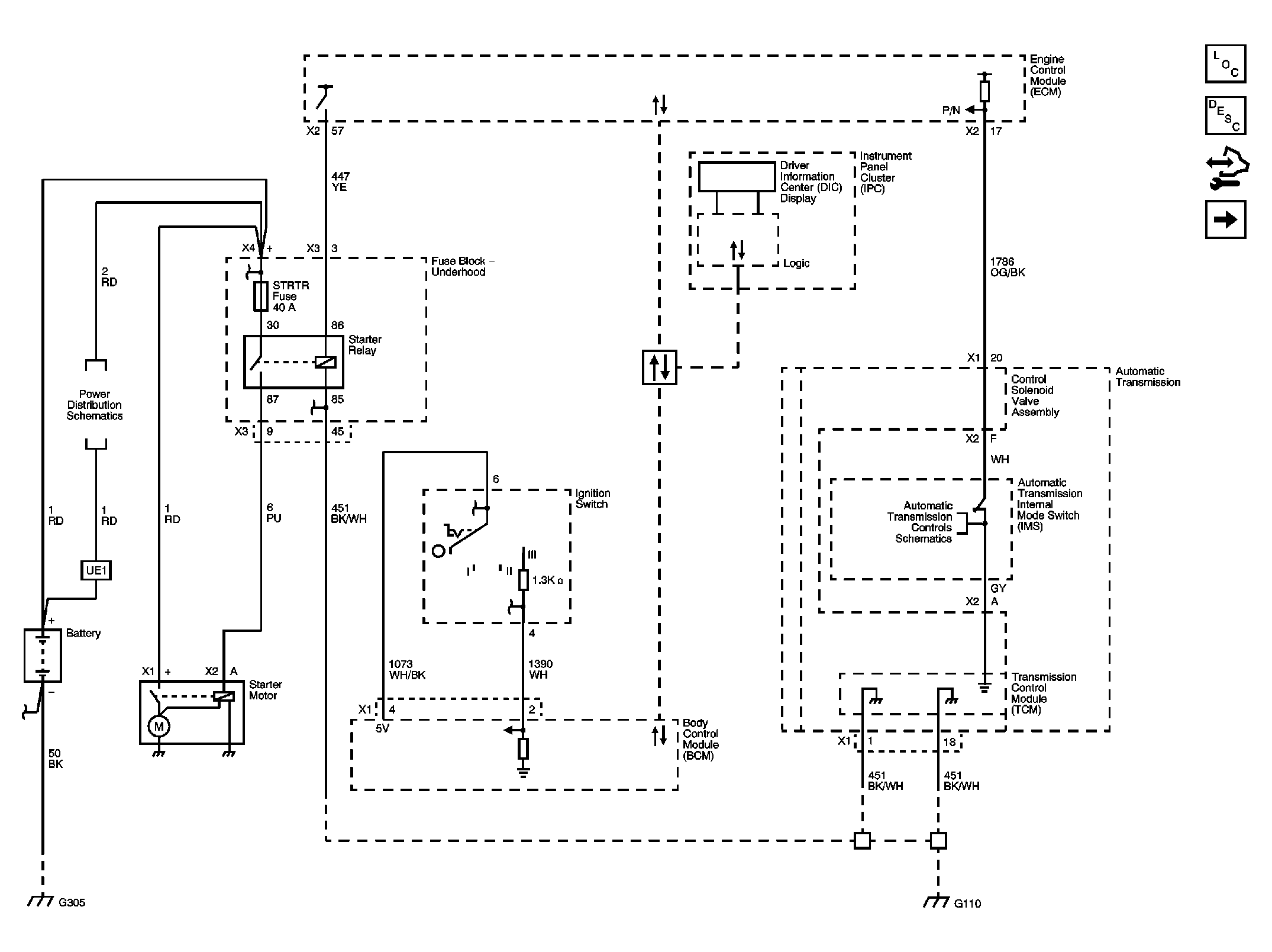

Fig 1: Starting System Wiring Schematic
GM2381819Courtesy of GENERAL MOTORS CORP.
