Installation Procedure

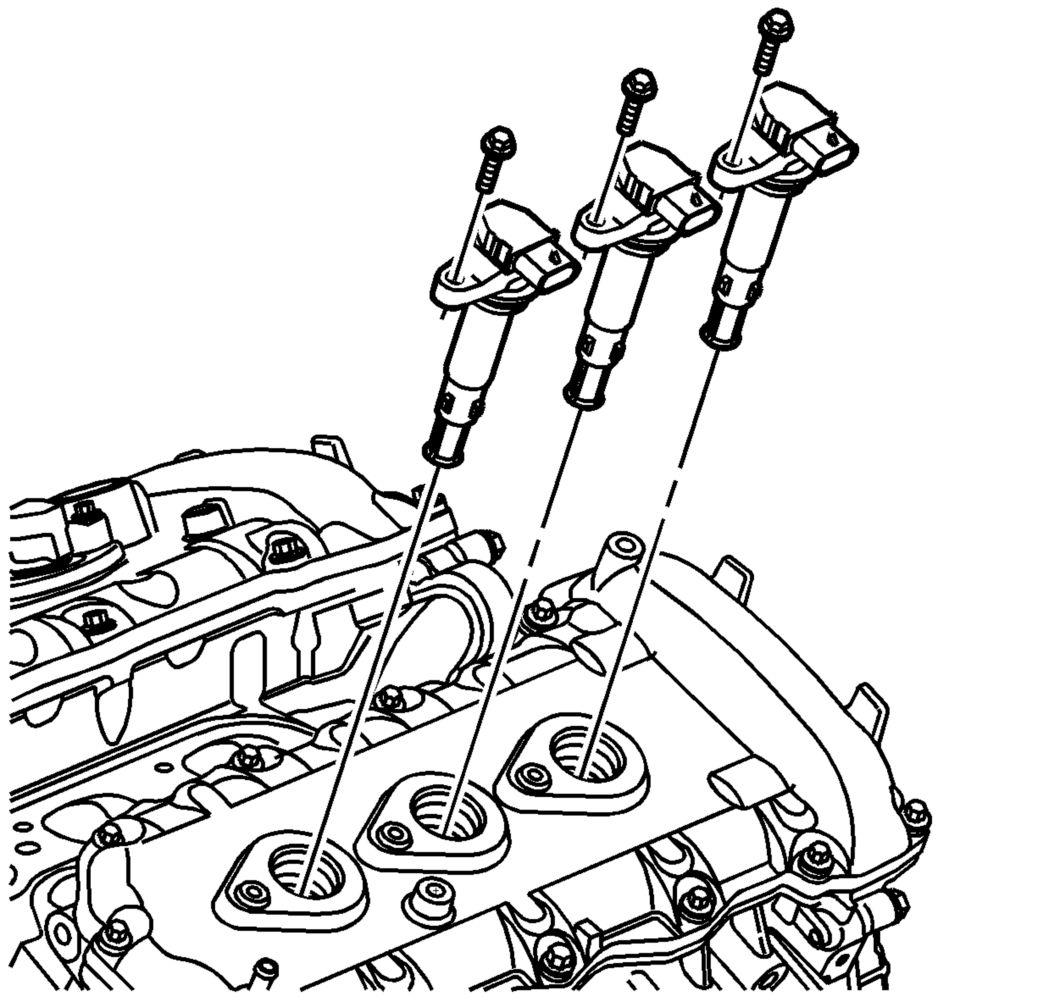

    Fig 1: Ignition Coil View
    GM860797Courtesy of GENERAL MOTORS CORP.
  1. Install the ignition coil(s).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the ignition coil bolt(s).

    Tighten

    Tighten the bolt(s) to 10 N.m (89 lb in).

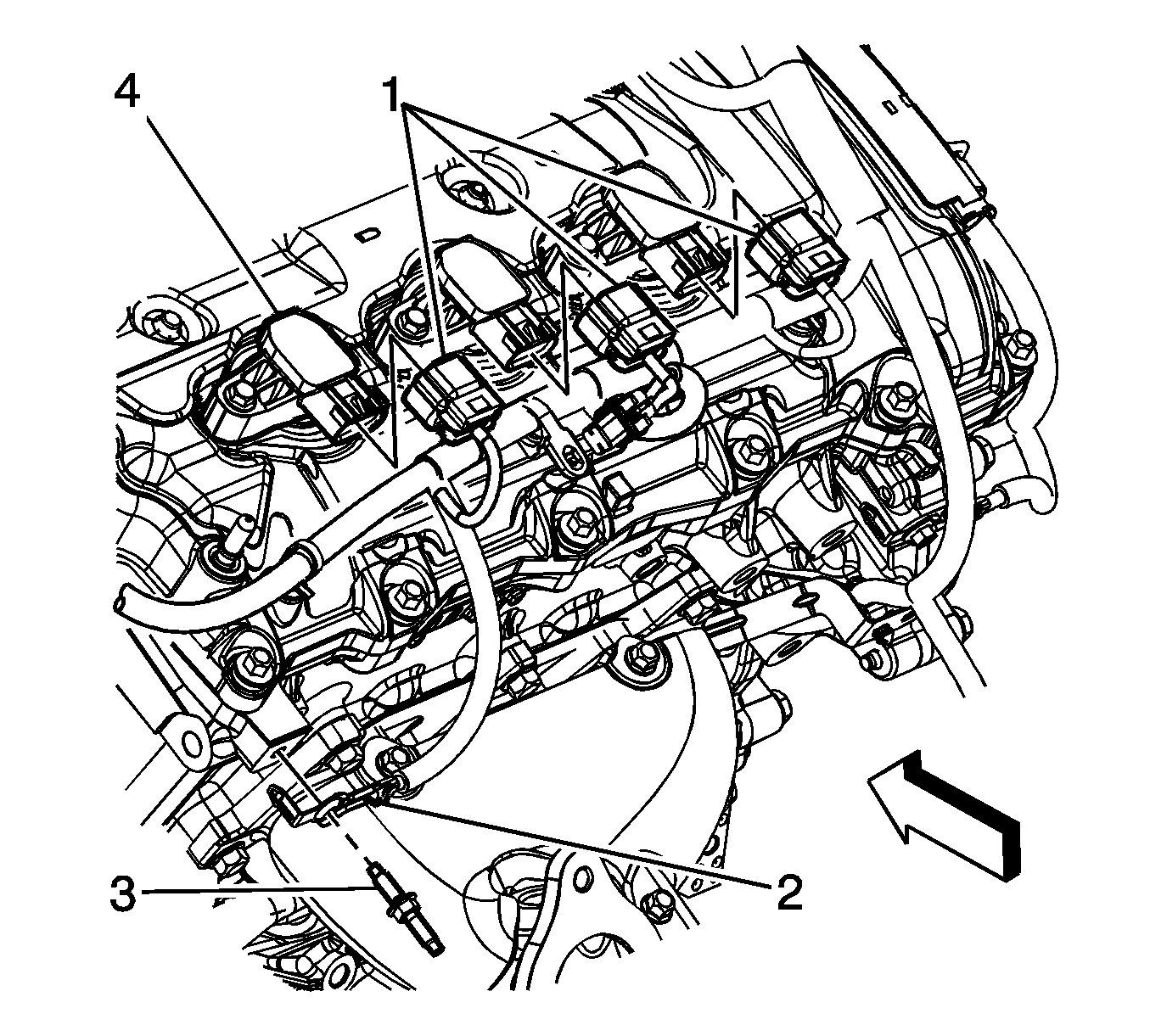

    3. Fig 2: View Of Ignition Coil Electrical Connector
    GM1860397Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine wiring harness electrical connector(s) (1) to the ignition coil(s) (4).
  4. Install the fuel injector sight shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT .
