Power, Ground, and References to Power Distribution and Power Moding
Power, Ground, and References to Power Distribution and Power Moding

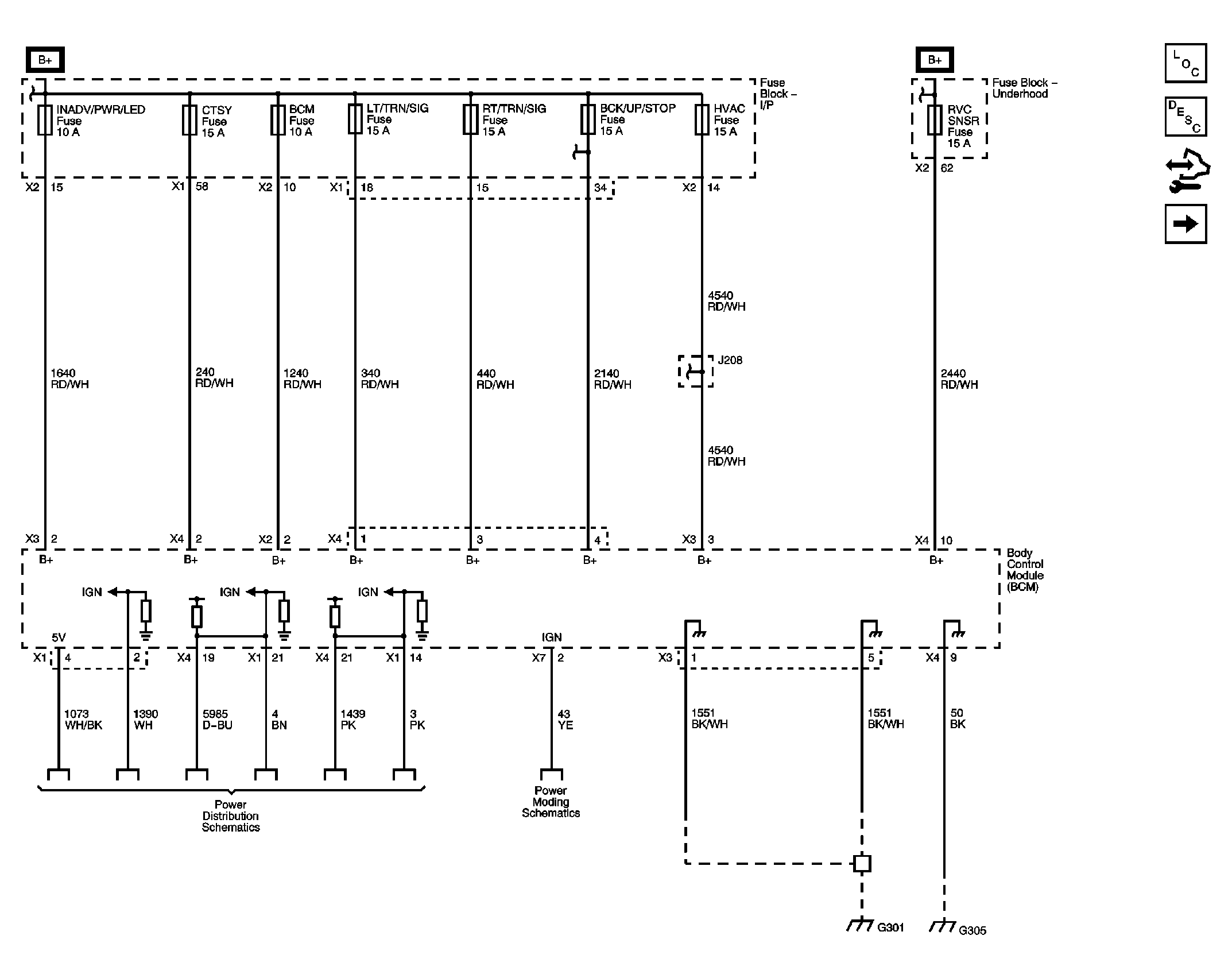

Fig 1: Wiring Schematic Power, Ground, And References To Power Distribution And Power Moding
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
