Communication Enable and Linear Interconnect Network (LIN)

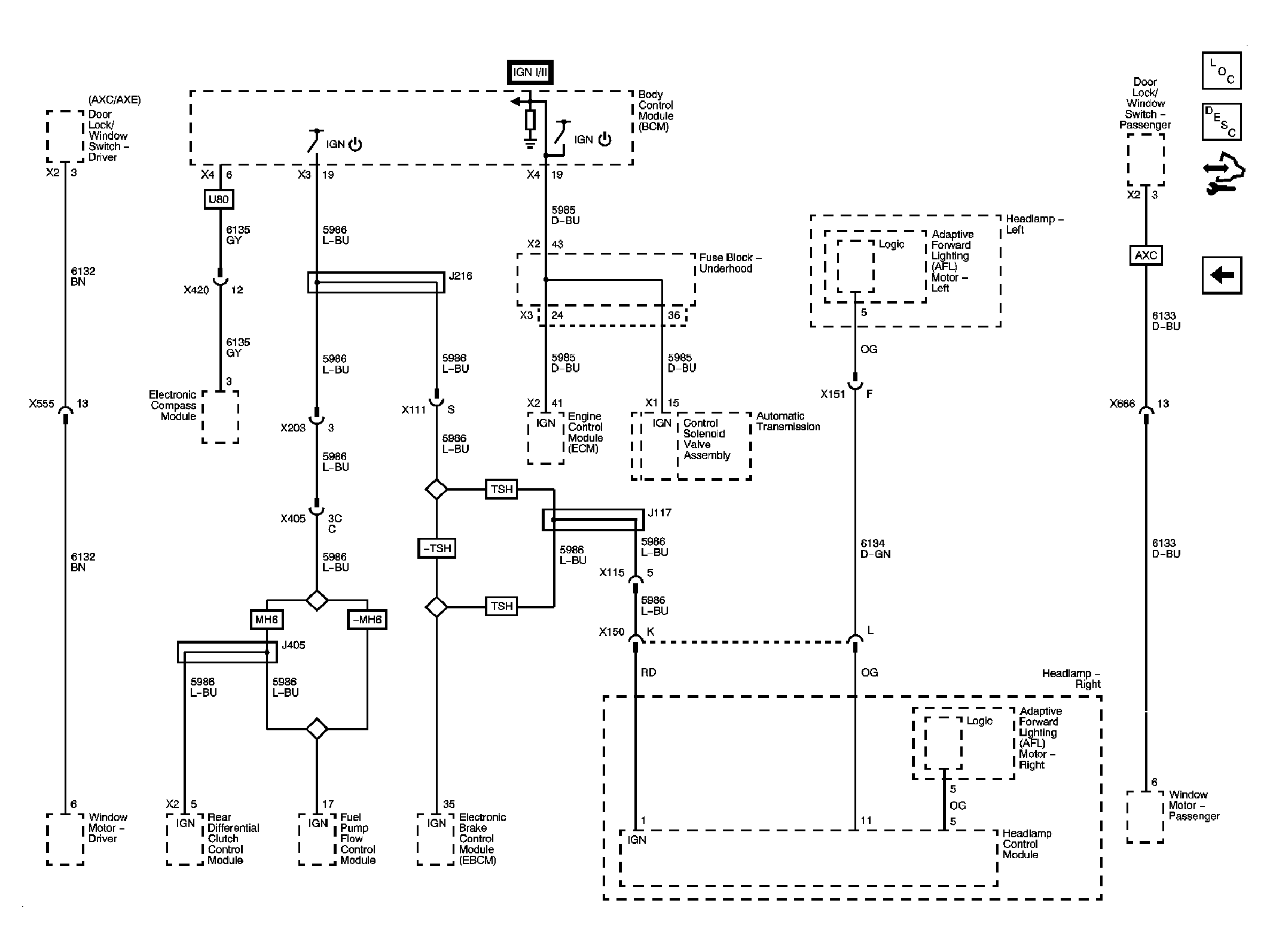

Fig 1: Wiring Schematic Communication Enable And Linear Interconnect Network (LIN)
GM2381836Courtesy of GENERAL MOTORS CORP.
