Traverse LS, AWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communications System
›
Wiring Schematic Diagrams
›
Data Communication Wiring Schematics
›
High Speed GMLAN
High Speed GMLAN

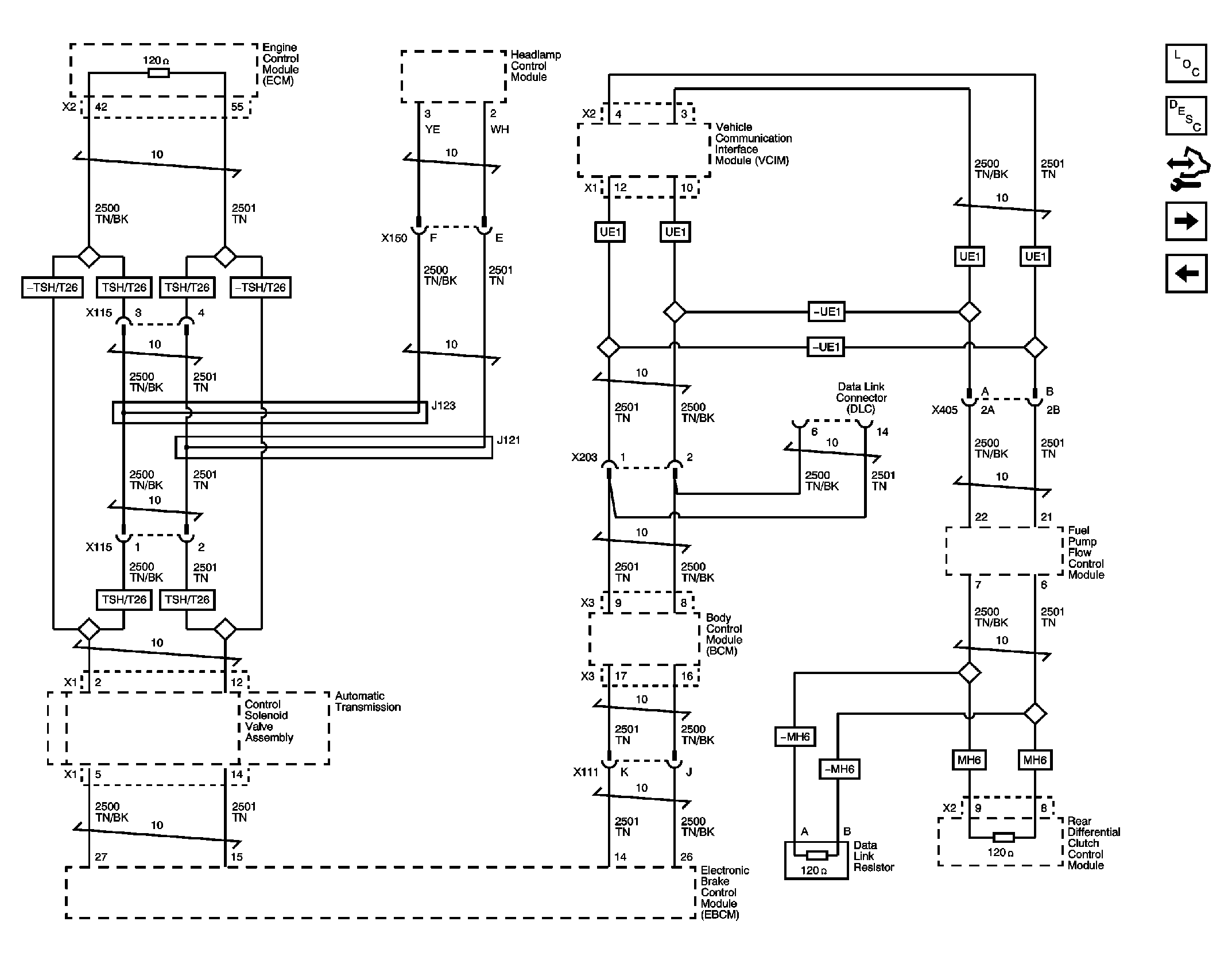

Fig 1: Wiring Schematic High Speed GMLAN
