Section 171 (Object Detection System)
›
Schematic Wiring Diagrams
›
Object Detection Wiring Schematics
›
Multifunction Switches (UGN/UVZ)
Multifunction Switches (UGN/UVZ)
WARNING:
This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

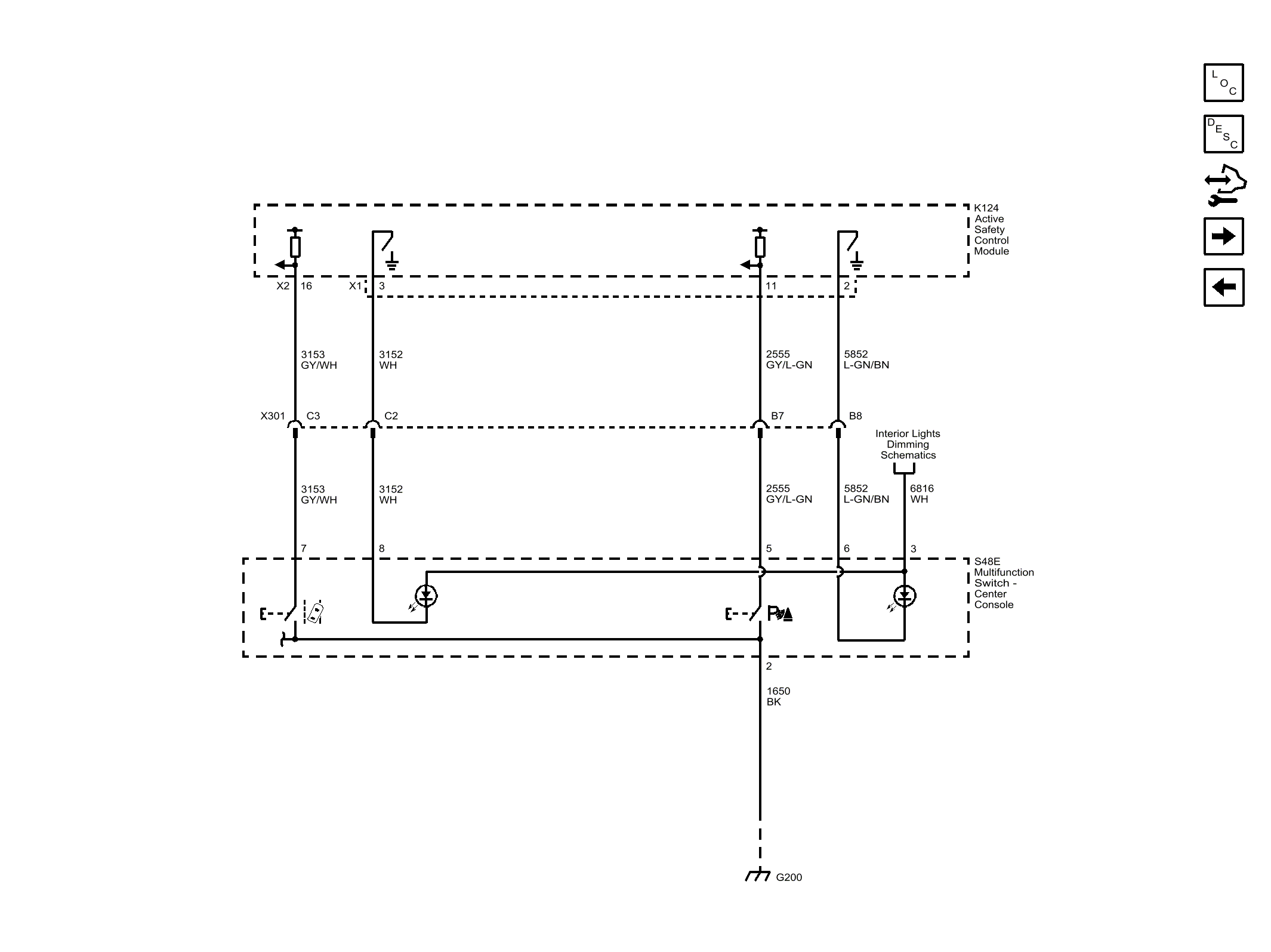

Fig 1: Multifunction Switches (UGN/UVZ)
Courtesy of GENERAL MOTORS COMPANY
