Inside Air Temperature Sensor Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

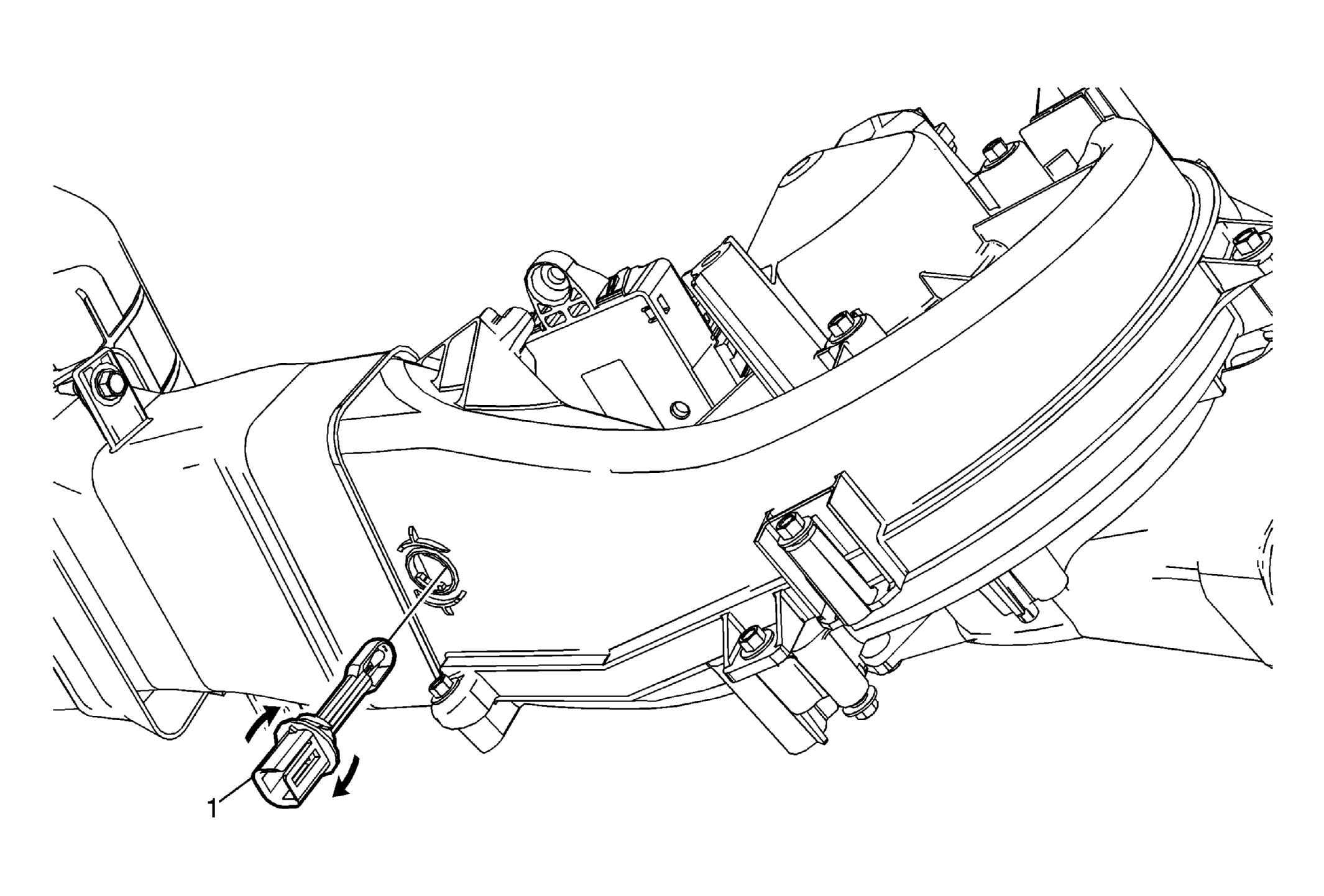

Fig 1: Identifying Inside Air Temperature Sensor
GM2227148Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Remove auxiliary blower motor. Refer to Auxiliary Blower Motor Replacement .
  2. Disconnect the inside air temperature sensor electrical connectors.
1 Inside Air Temperature Sensor

Procedure

  1. Disconnect the duct air temperature sensor electrical connector.
  2. Twist and pull the duct air temperature sensor from the HVAC module assembly.
