Steering Column Upper Trim Cover Replacement
Steering Column Upper Trim Cover Replacement

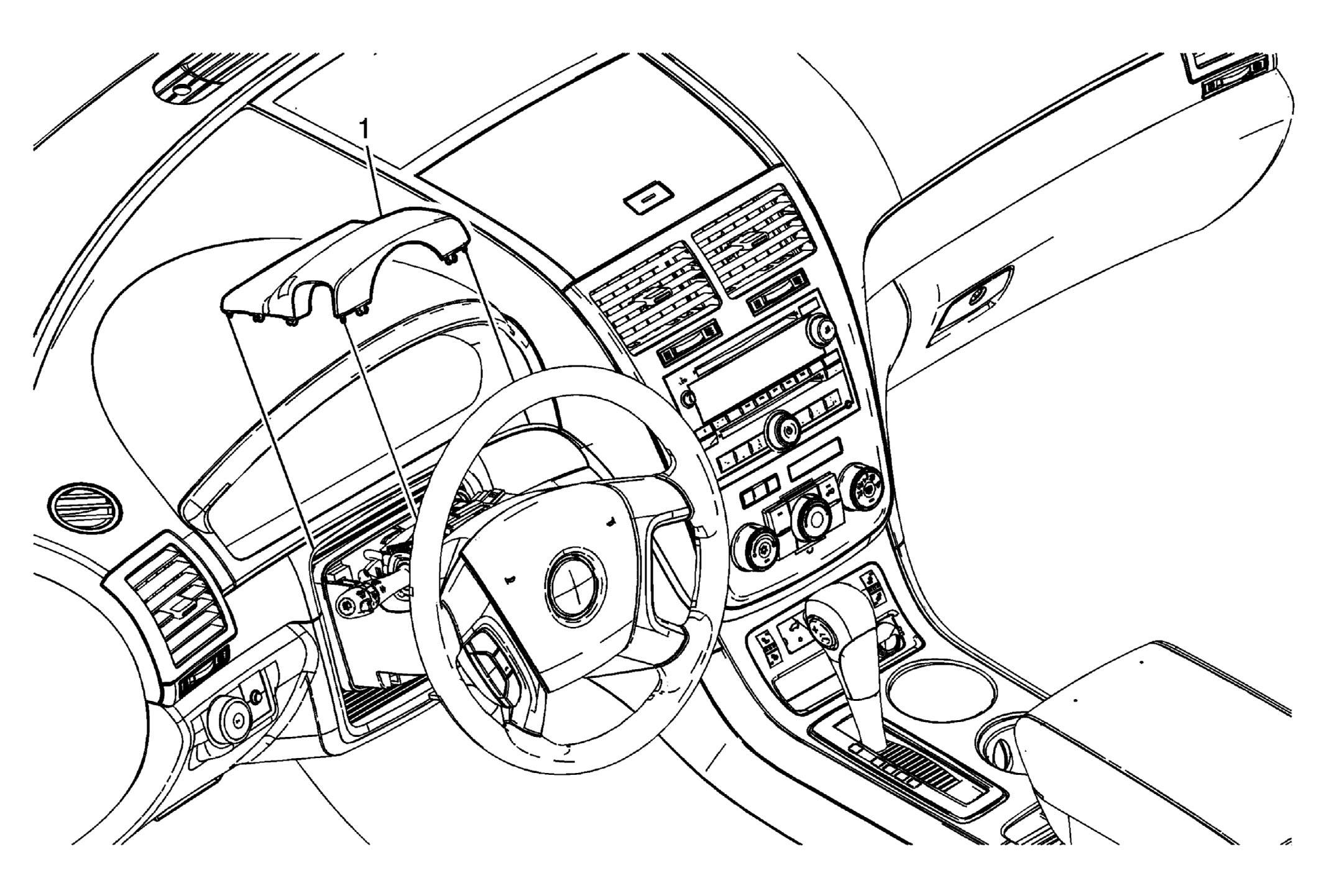

Fig 1: Identifying Steering Column Upper Trim Cover
Courtesy of GENERAL MOTORS CORP.
Steering Column Upper Trim Cover Replacement
Callout
Component Name
1
Steering Column Upper Trim Cover
Procedure
Pull the tilt lever down to move the steering wheel down and out to clear the steering column housing cover.
Use a flat-bladed plastic trim tool in order to release the tabs securing the steering column upper trim cover to the lower trim cover.
