Release Systems Wiring Schematics: Tb4

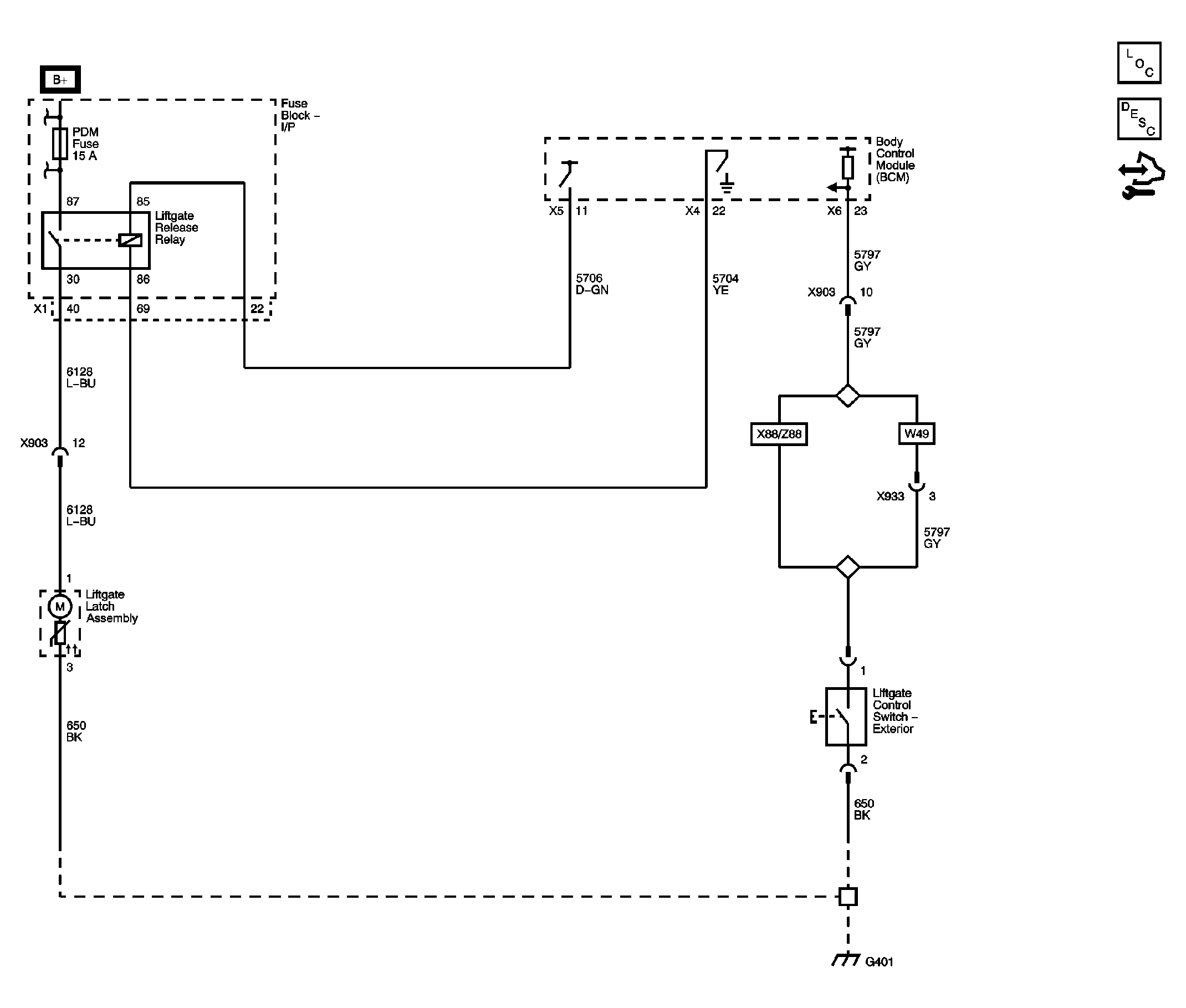

Fig 1: TB4 Wiring Schematic
GM2381639Courtesy of GENERAL MOTORS CORP.
