Moveable Window Wiring Schematics (AXE): Front

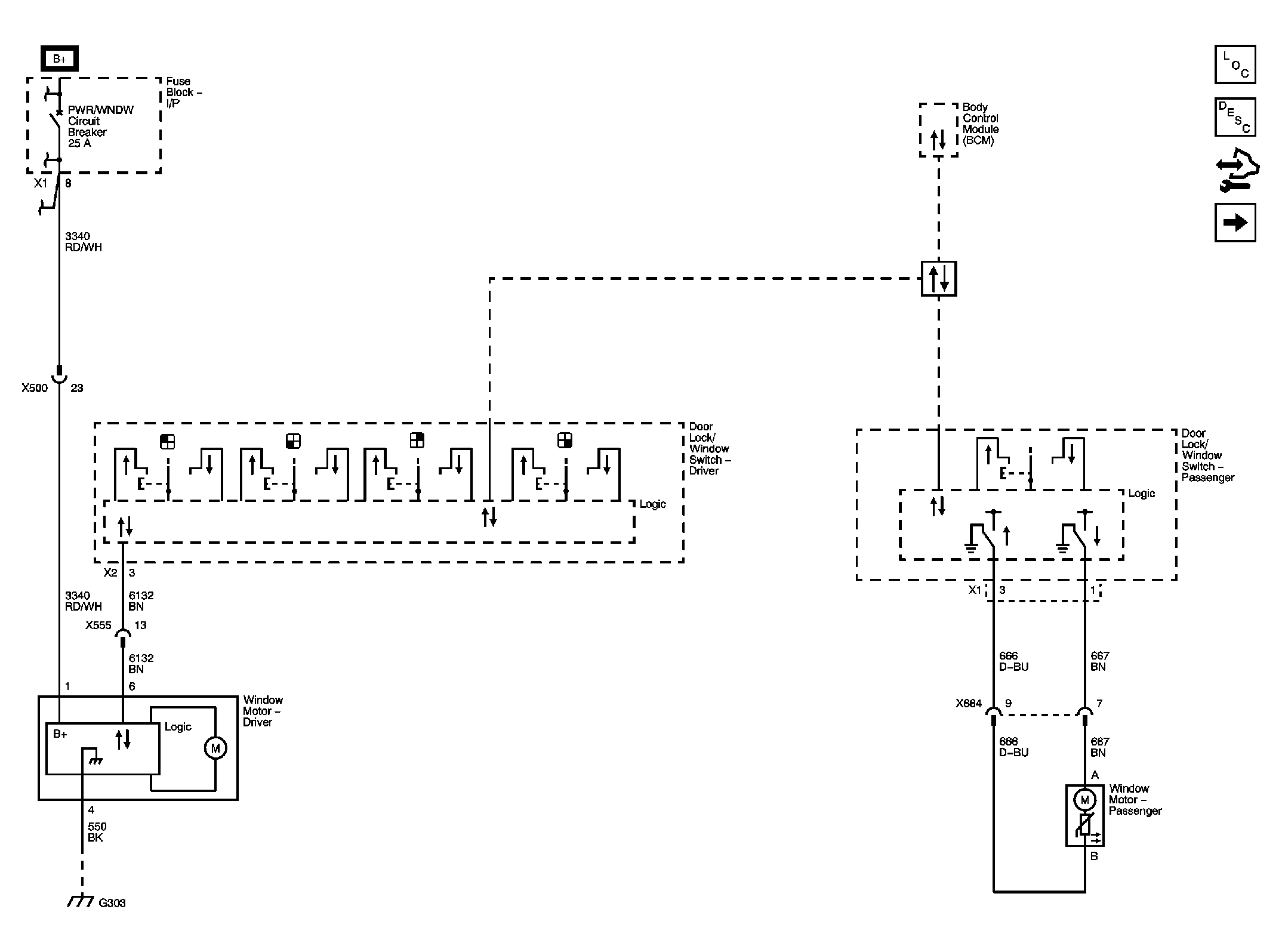

Fig 1: Front Moveable Window Wiring Schematic (AXE)
GM2381496Courtesy of GENERAL MOTORS CORP.
