Moveable Window Wiring Schematics (Except AXE): Front

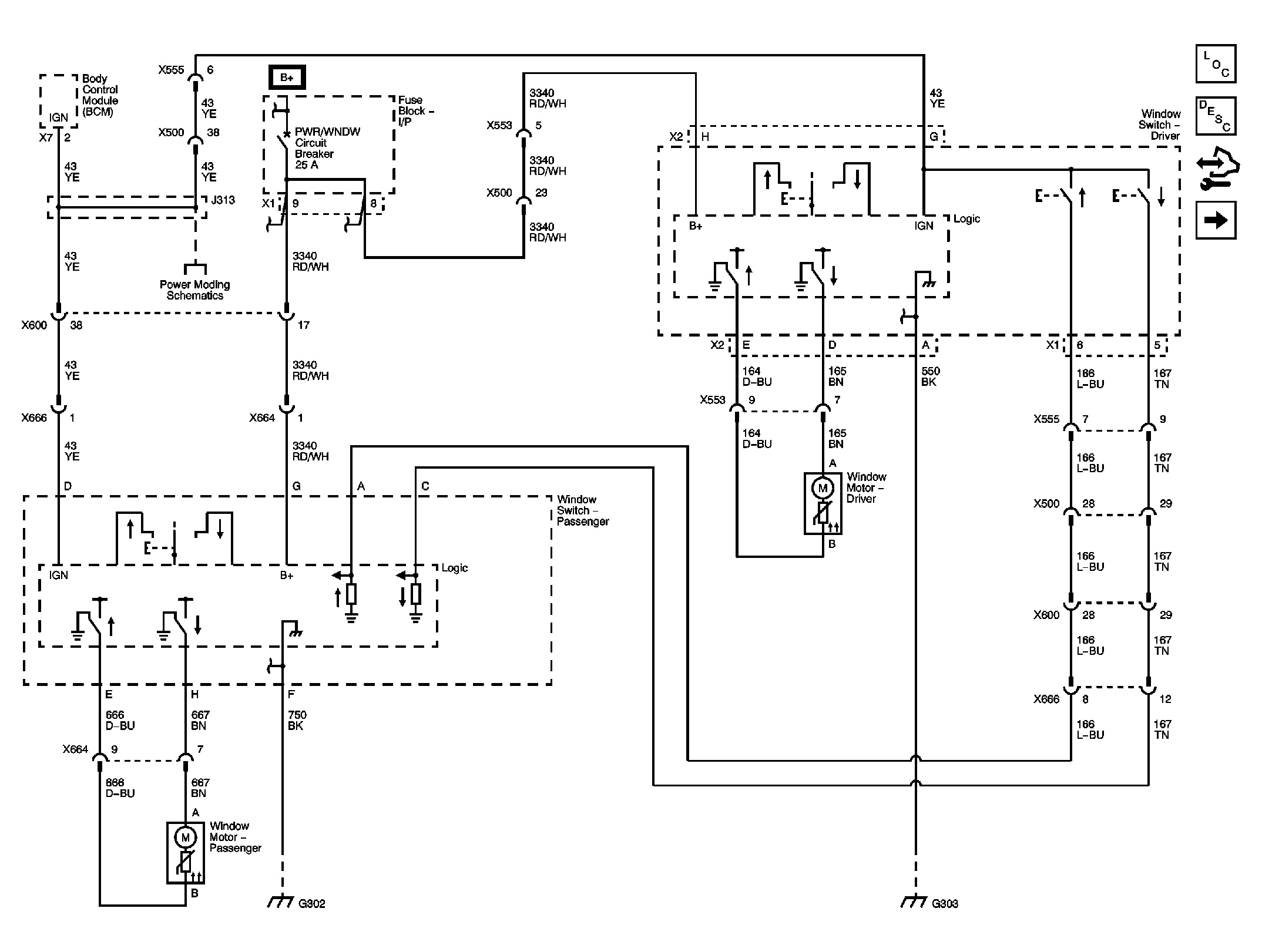

Fig 1: Front Moveable Window Wiring Schematic (Except AXE)
GM2381489Courtesy of GENERAL MOTORS CORP.
