Antilock Brake System Wiring Schematics
›
Stability Control
Stability Control

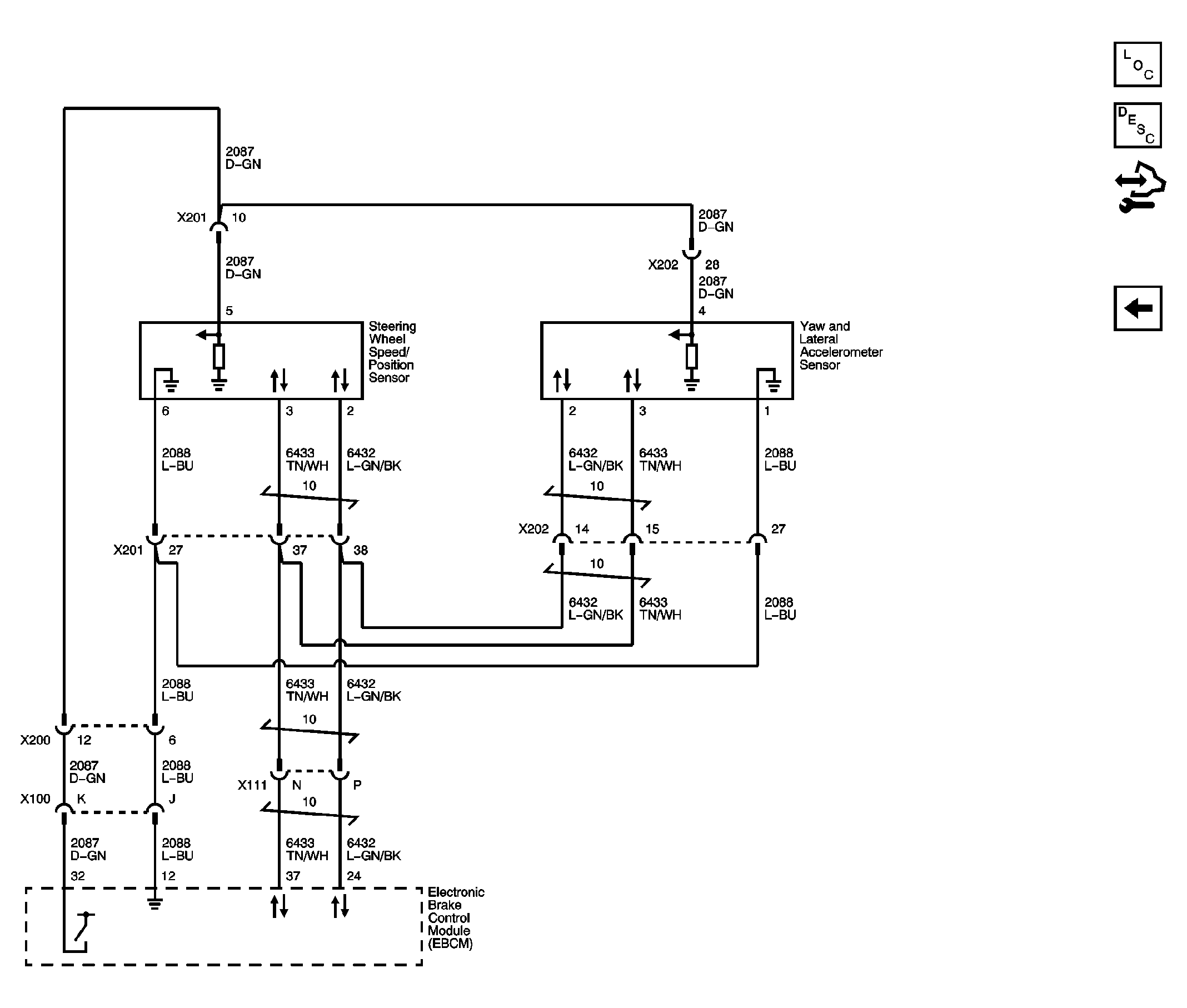

Fig 1: Stability Control Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
