Section 305 (Object Detection System And Pedestrian Protection System)
›
Schematic Wiring Diagrams
›
Object Detection Wiring Schematics
›
Side Object Detection (UFT)
Side Object Detection (UFT)
WARNING:
This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

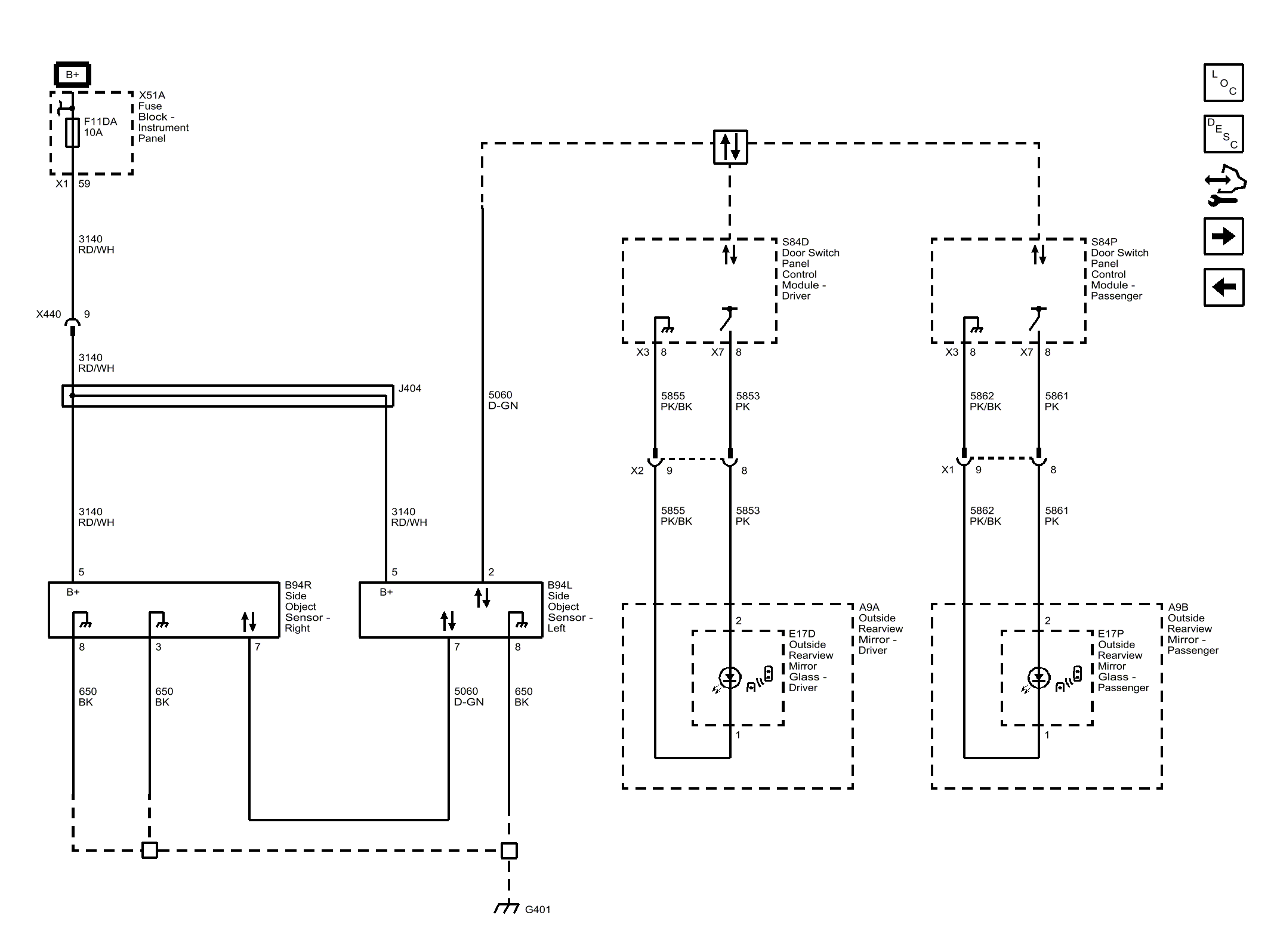

Fig 1: Side Object Detection (UFT)
Courtesy of GENERAL MOTORS COMPANY
