Object Detection Wiring Schematics

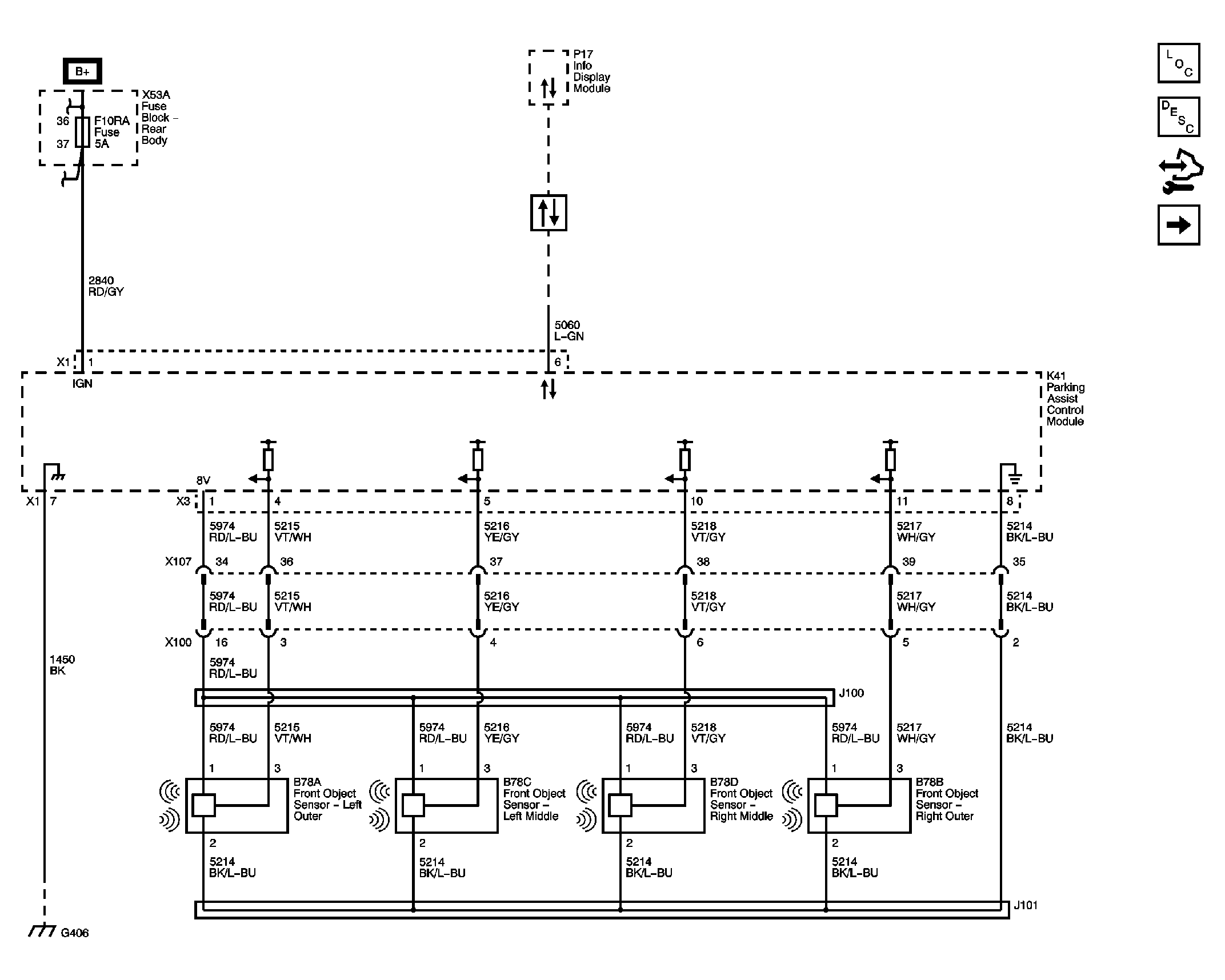

Fig 1: Front Park Assist Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

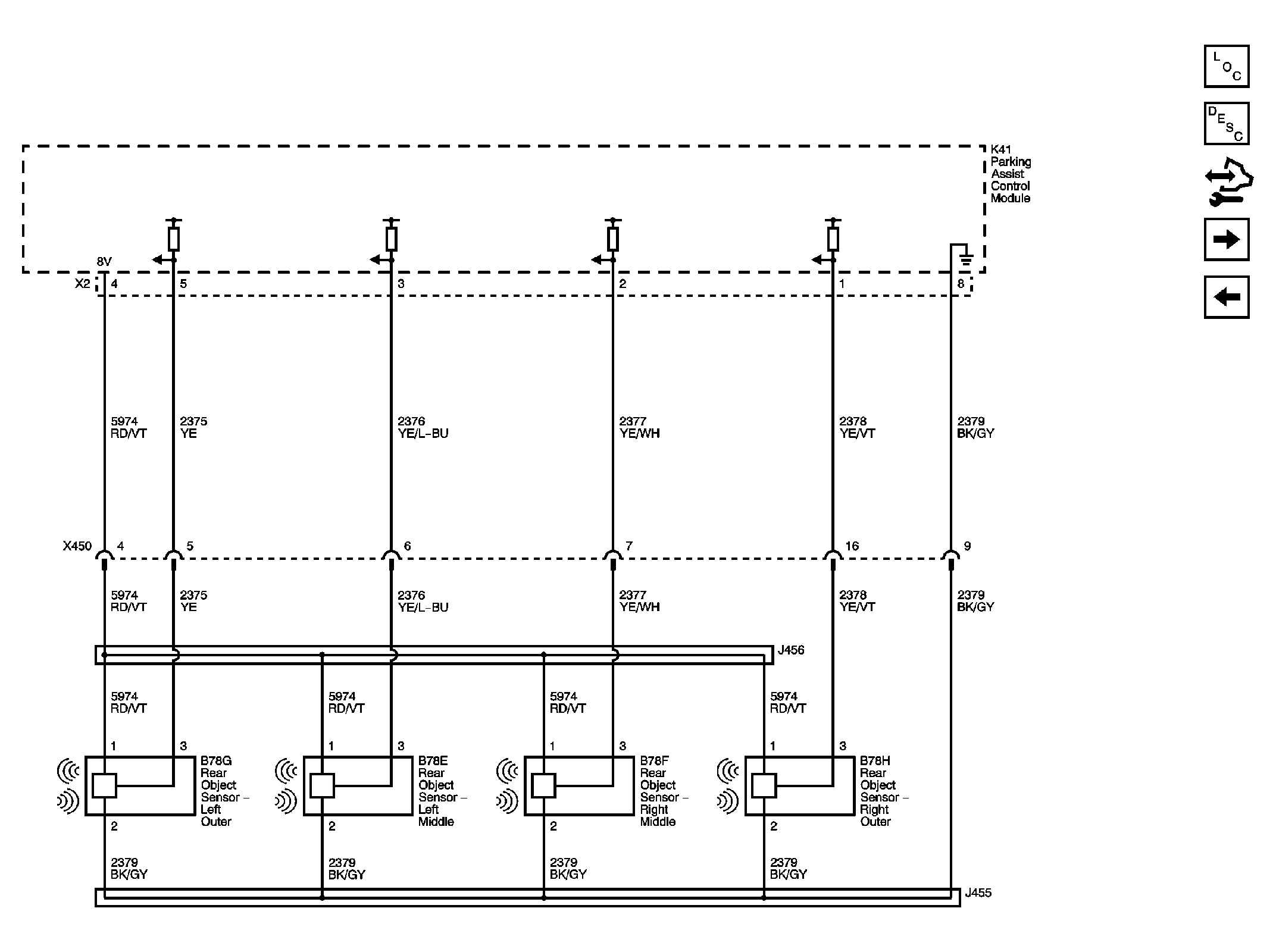

Fig 2: Rear Park Assist Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

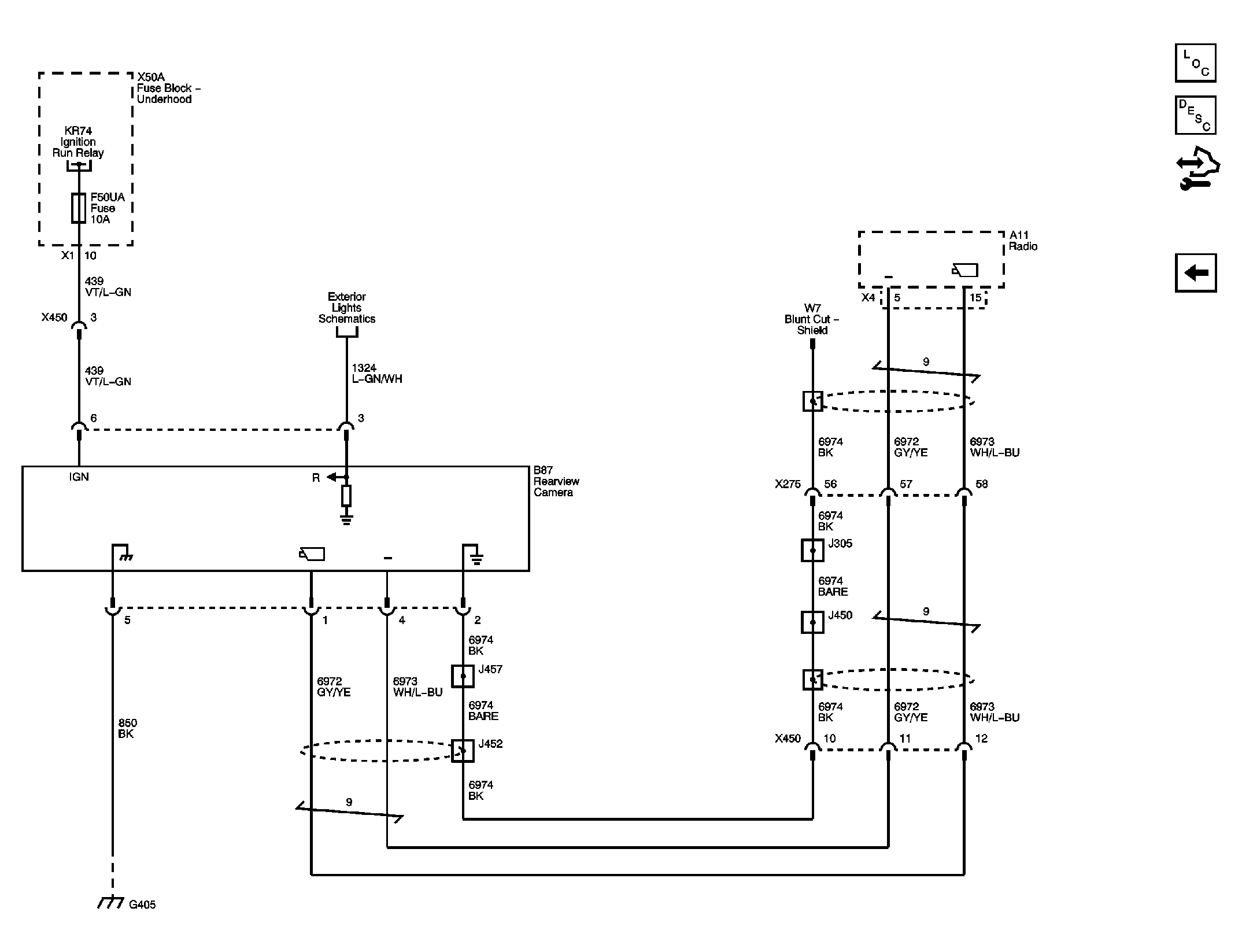

Fig 3: Rearview Camera Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
