Chevrolet
›
2011
›
Volt
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Power Door Lock System And Release Systems
›
Wiring Schematics
›
Release Systems Schematics (Liftgate)
Release Systems Schematics (Liftgate)

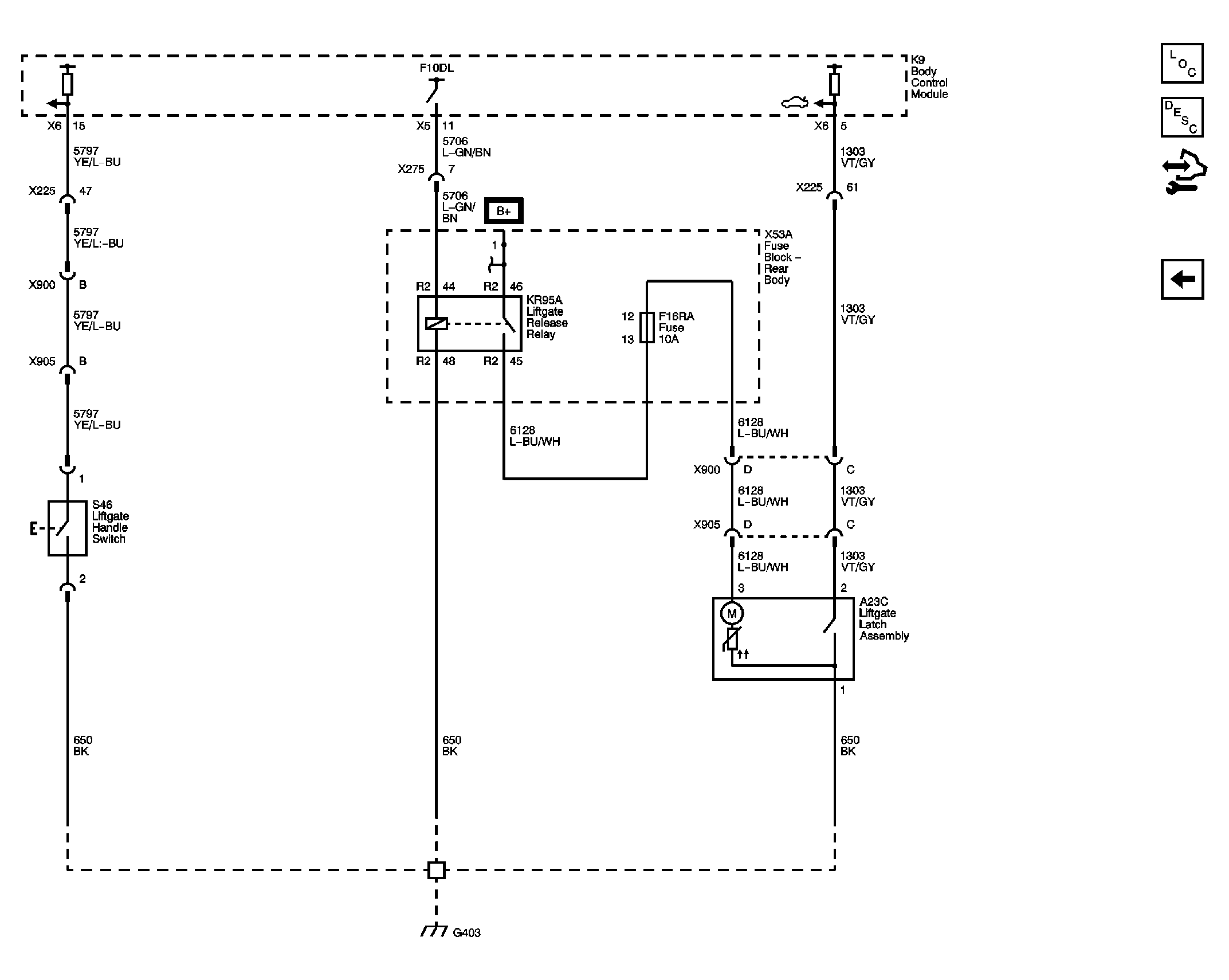

Fig 1: Liftgate Release Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
