Front Side Door Weatherstrip Retainer Replacement

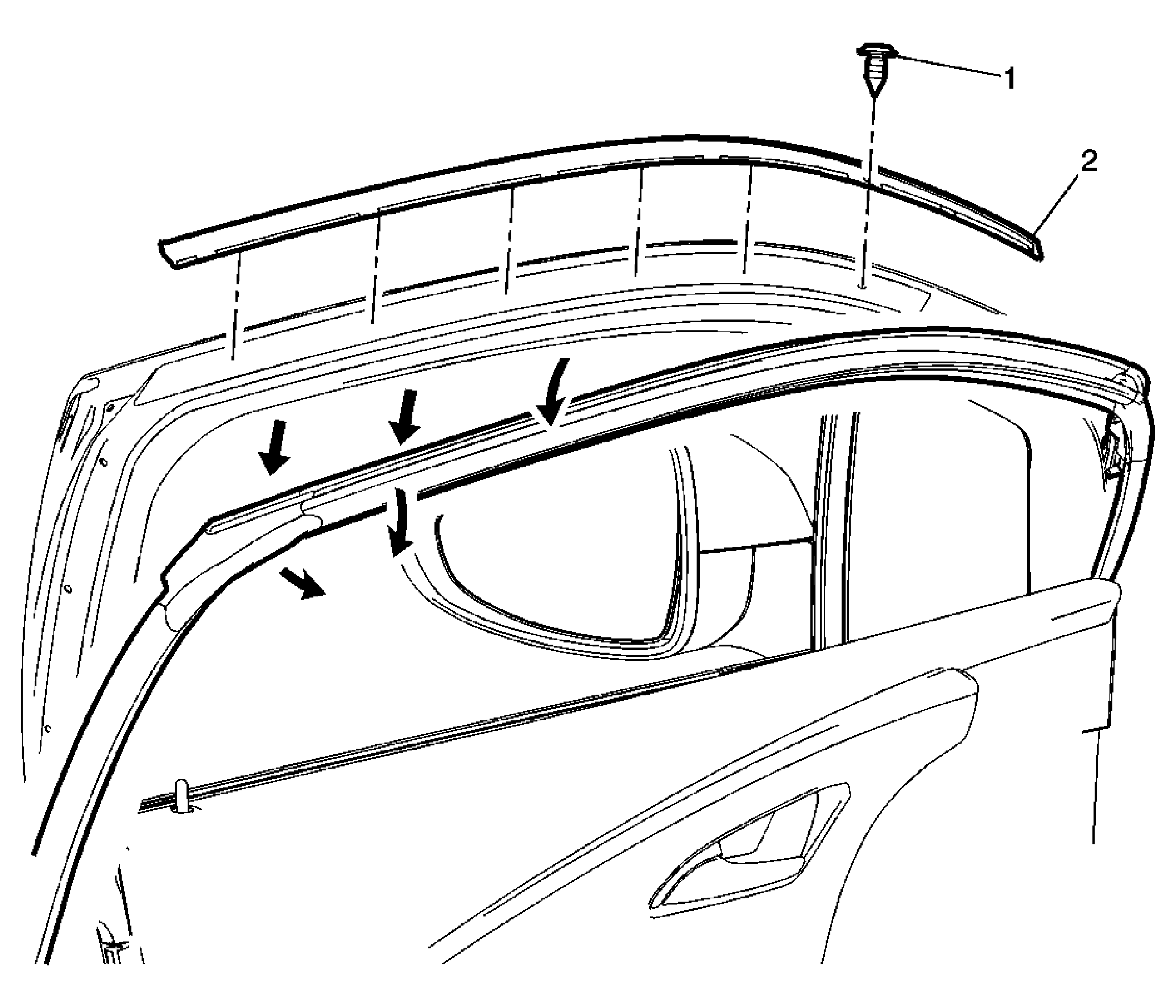

| Callout | Component Name |
|---|---|
| Preliminary Procedure: It will be necessary to remove the upper section of the front side door weatherstrip. Refer to Front Side Door Weatherstrip Replacement - Door Side (Door Side) . |
|
| 1 | Front Side Door Weatherstrip Retainer Screw
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Front Side Door Weatherstrip Retainer Tip: Inspect the door for proper operation. |
