Moveable Window Wiring Schematics

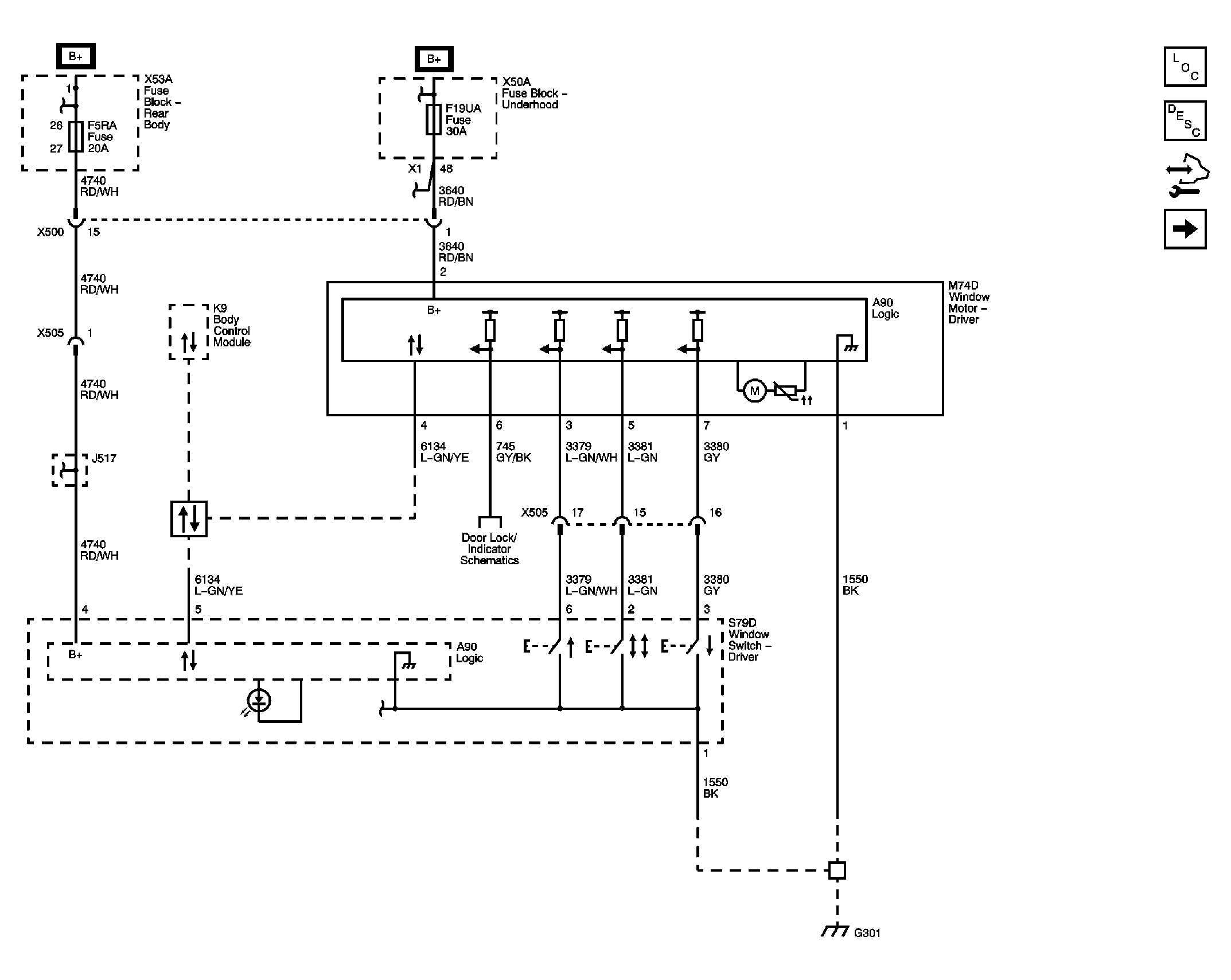

Fig 1: Driver Window Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

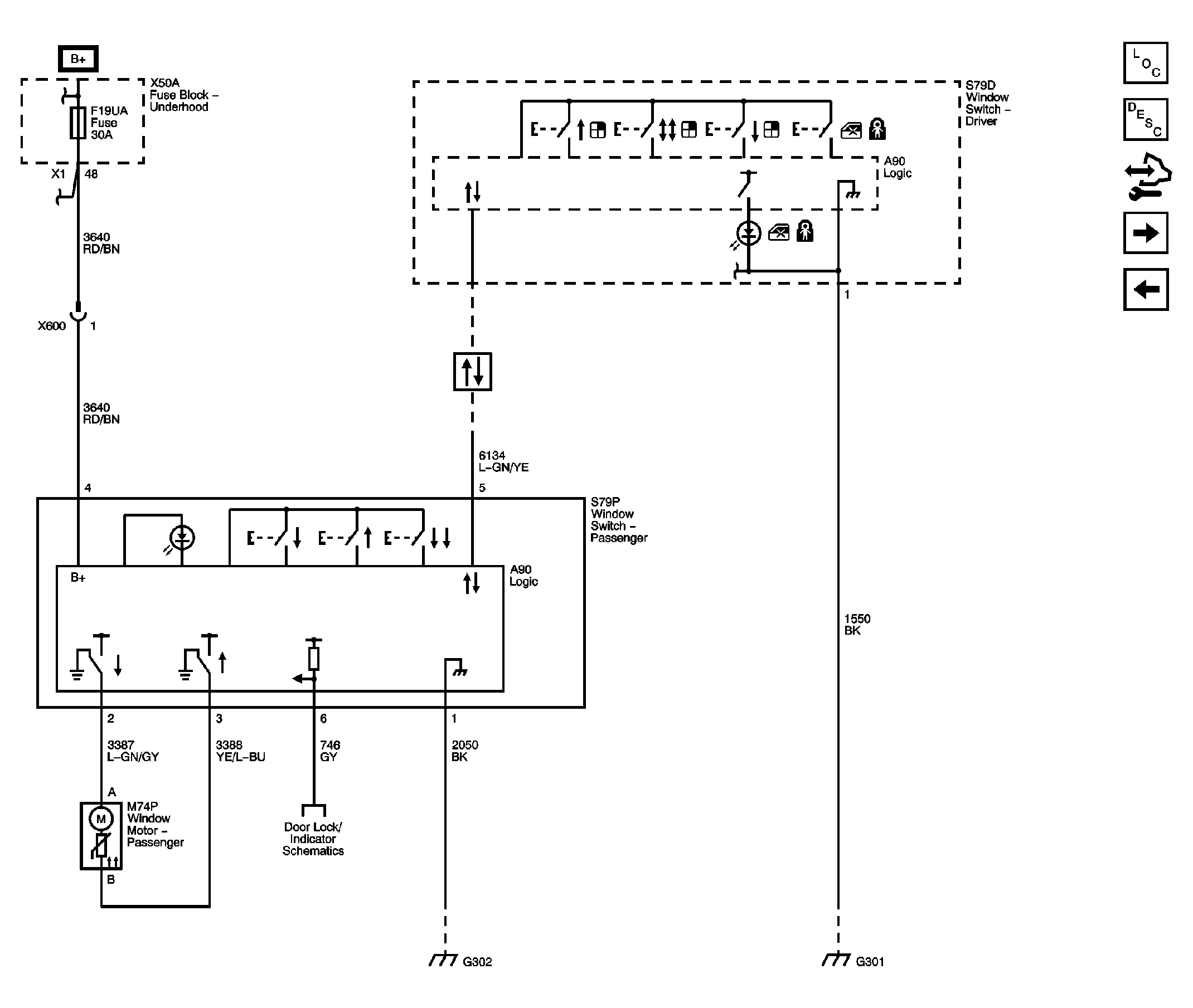

Fig 2: Passenger Window Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

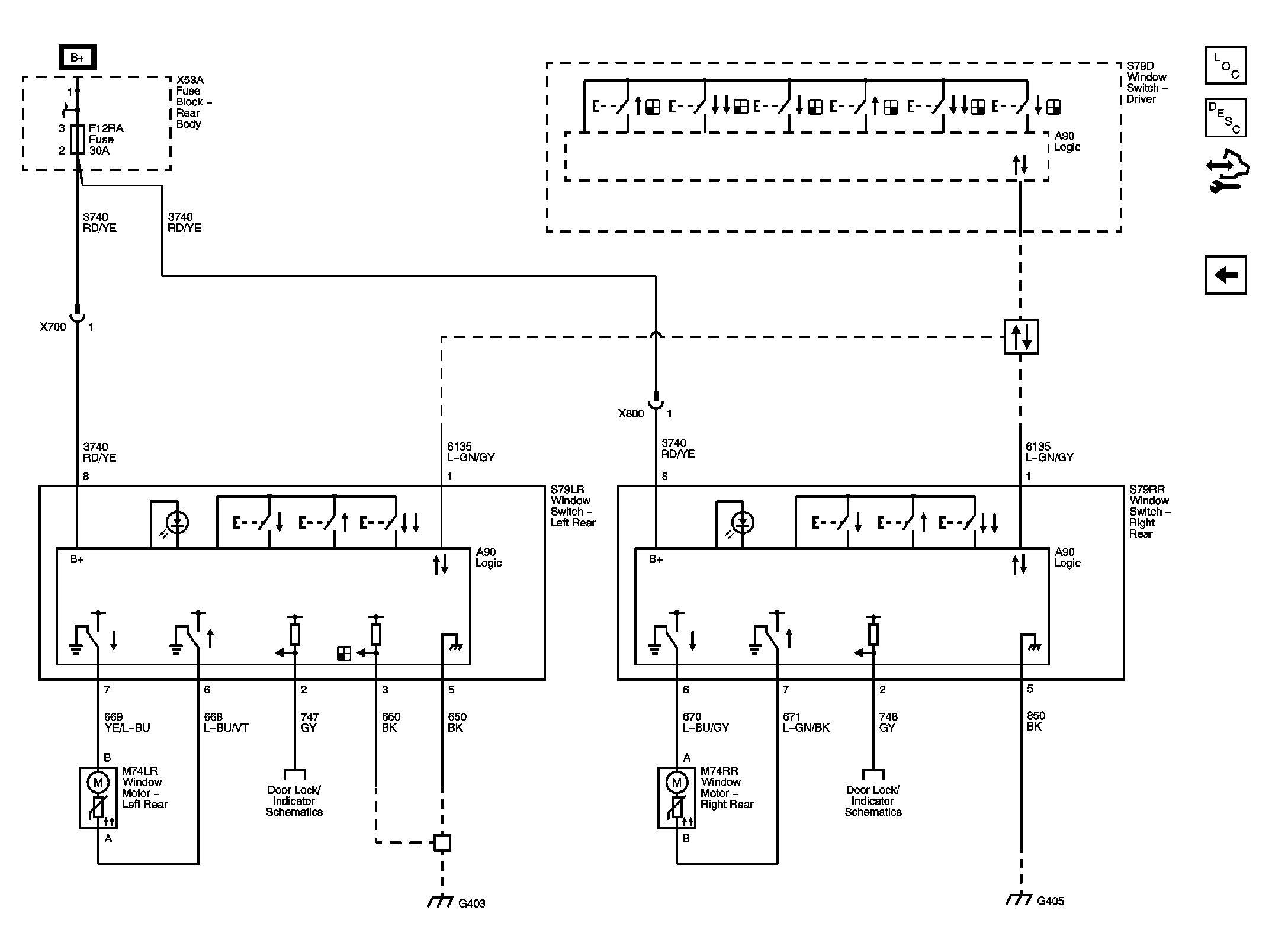

Fig 3: Rear Window Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
