Ignition Switch/Steering Lock
›
Immobilizer System
›
Wiring Schematics
›
Immobilizer Wiring Schematics
Immobilizer Wiring Schematics

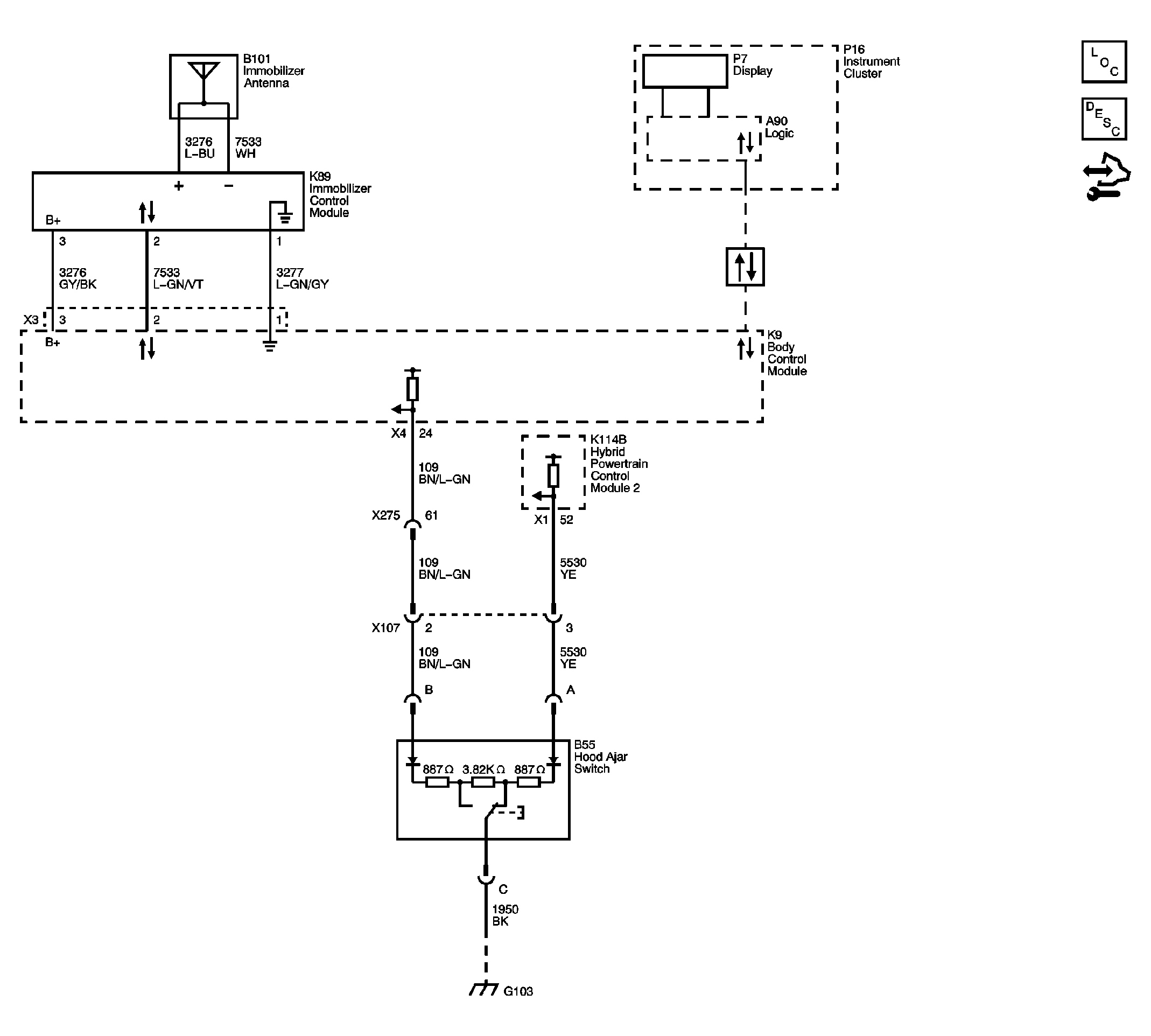

Fig 1: Immobilizer Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
