Battery Charge Indicator Replacement

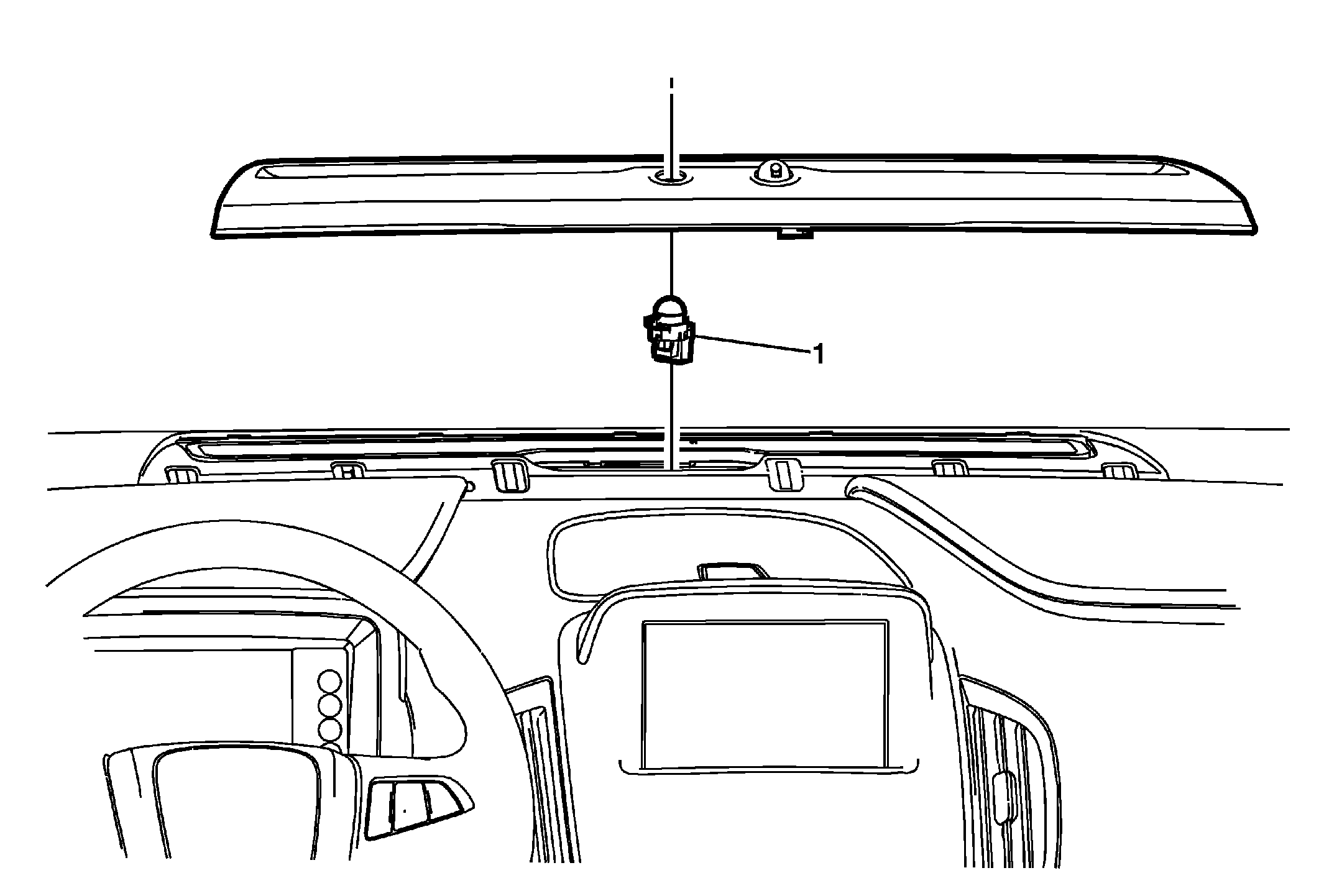

Fig 1: Battery Charge Indicator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement .
1	Battery Charge Indicator Procedure Twist and pull up to remove. Disconnect electrical connector.

Callout

Component Name

Preliminary Procedure:
Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement .

Battery Charge Indicator

Procedure
