Ignition Coil Replacement

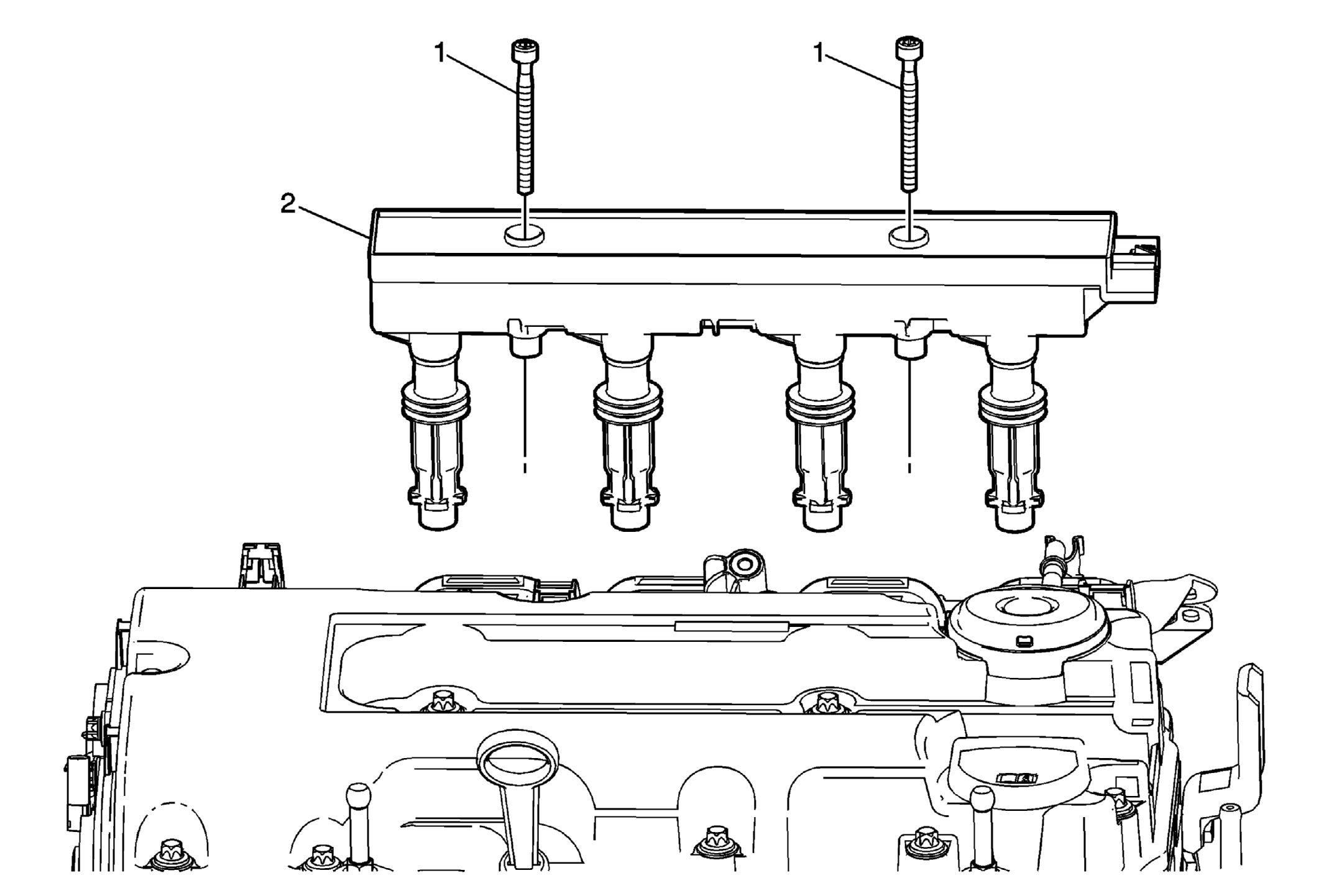

Fig 1: Ignition Coils

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the air cleaner resonator. Refer to Air Cleaner Resonator Outlet Duct Replacement .
1	Ignition Coil Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in) Special Tools: EN 6009: Remover and Installer Ignition Module For equivalent regional tools, Refer to Special Tools (Diagnostic Tools)
2	Ignition Coil Procedure: Disconnect the electrical connector.
