Backup Lamp Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

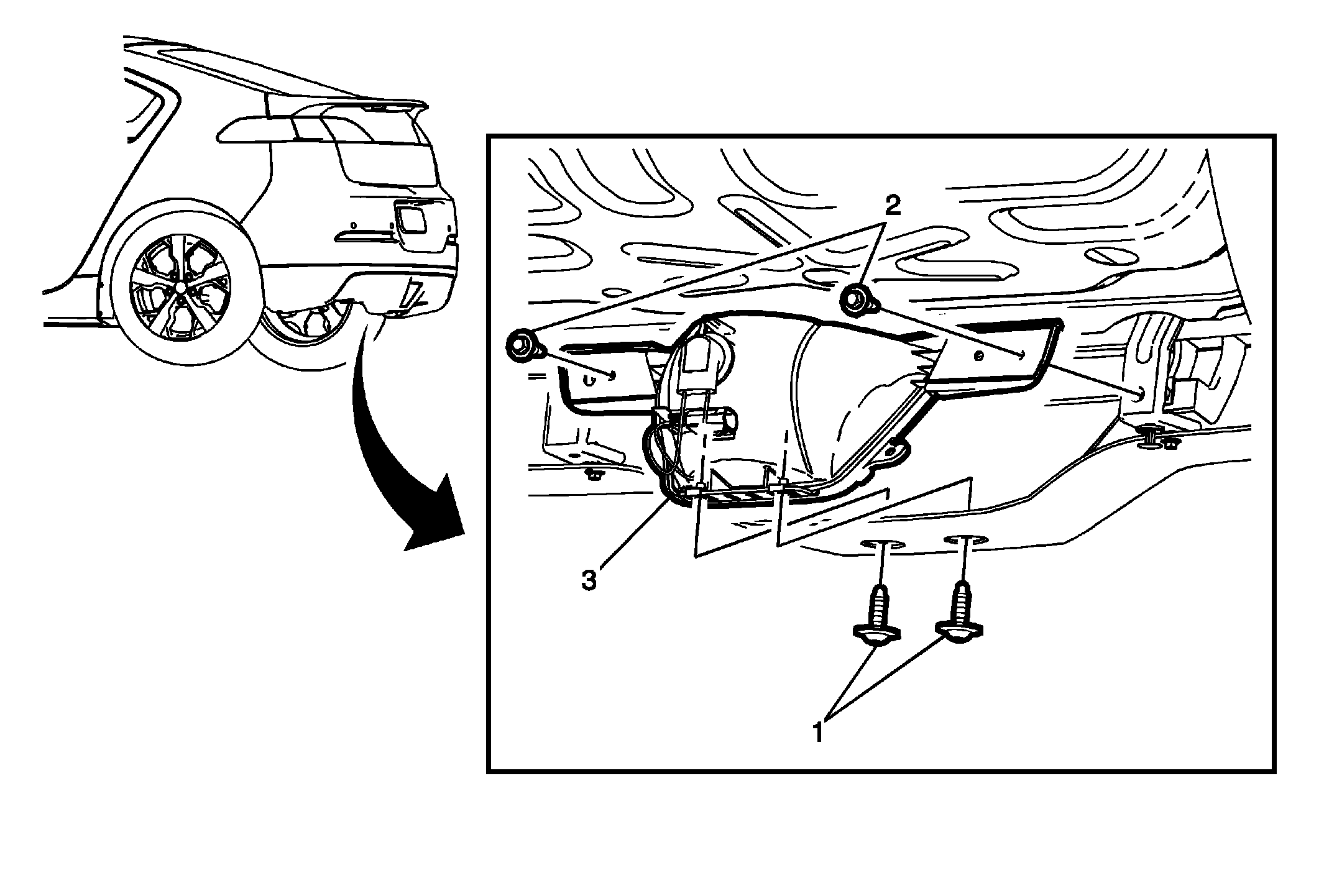

Fig 1: Backup Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the underbody rear air deflector. Refer to Underbody Rear Air Deflector Replacement (Volt) . Disconnect the electrical connector from the tail lamp harness. Transfer the electrical connector jumper harness as needed.
1	Rear Bumper Fascia Lower Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Energy Absorber Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Backup Lamp
