Headlamp Bulb Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

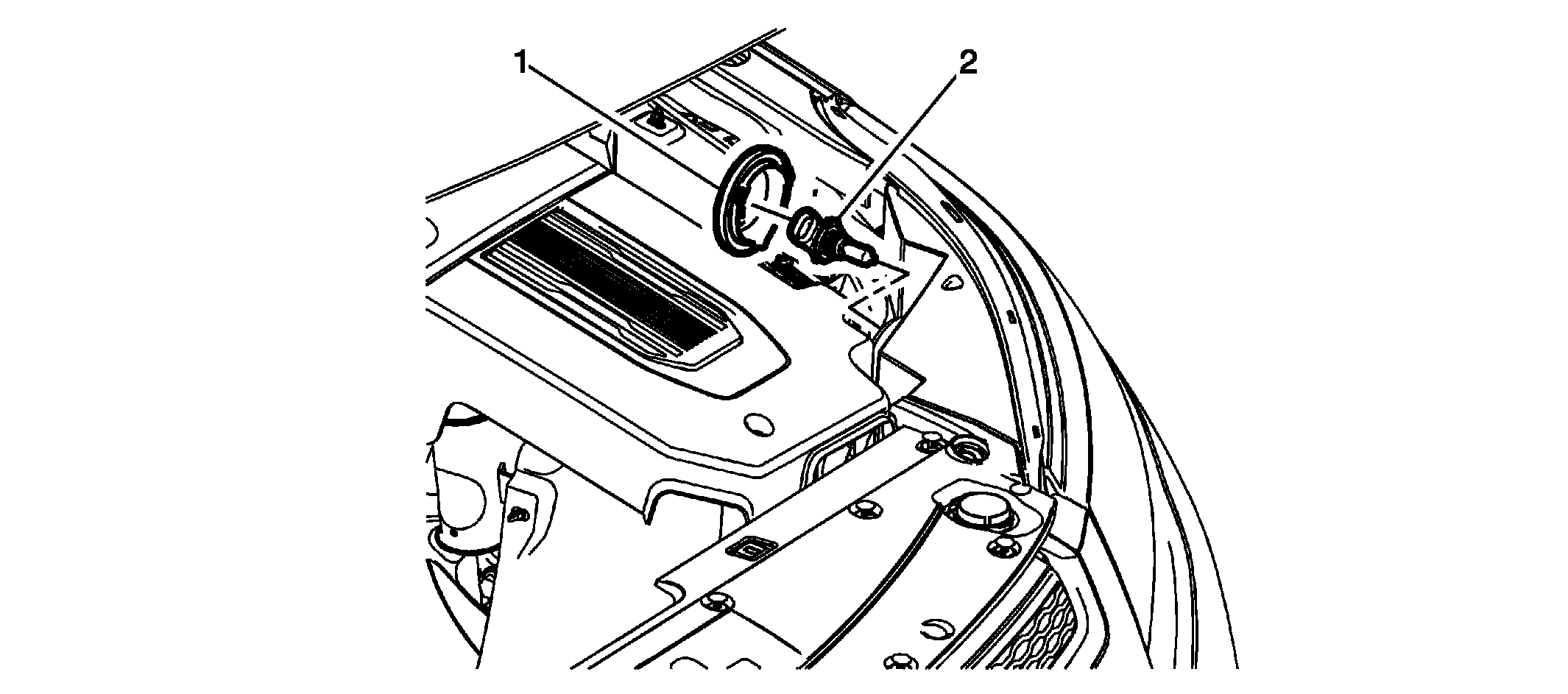

Fig 1: Headlamp Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Halogen Bulb Warning . Preliminary Procedures If replacing the passenger side headlamp bulb, remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Open and suitably support the hood. Remove the headlamp bulb access cover.
1	Headlamp Bulb Access Cover Procedure Rotate the access cover a quarter turn counterclockwise and remove.
2	Headlamp Bulb Procedure Disconnect the electrical connector from the headlamp bulb socket. Rotate the bulb socket a quarter turn counterclockwise and remove the bulb from the headlamp housing.

Callout

Component Name

WARNING:

Refer to Halogen Bulb Warning .

Preliminary Procedures

If replacing the passenger side headlamp bulb, remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
Open and suitably support the hood.
Remove the headlamp bulb access cover.

Headlamp Bulb Access Cover
Procedure
Rotate the access cover a quarter turn counterclockwise and remove.

Headlamp Bulb

Procedure

Disconnect the electrical connector from the headlamp bulb socket.
Rotate the bulb socket a quarter turn counterclockwise and remove the bulb from the headlamp housing.
