Inflatable Restraint Instrument Panel Lower Module Replacement - Passenger Side

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

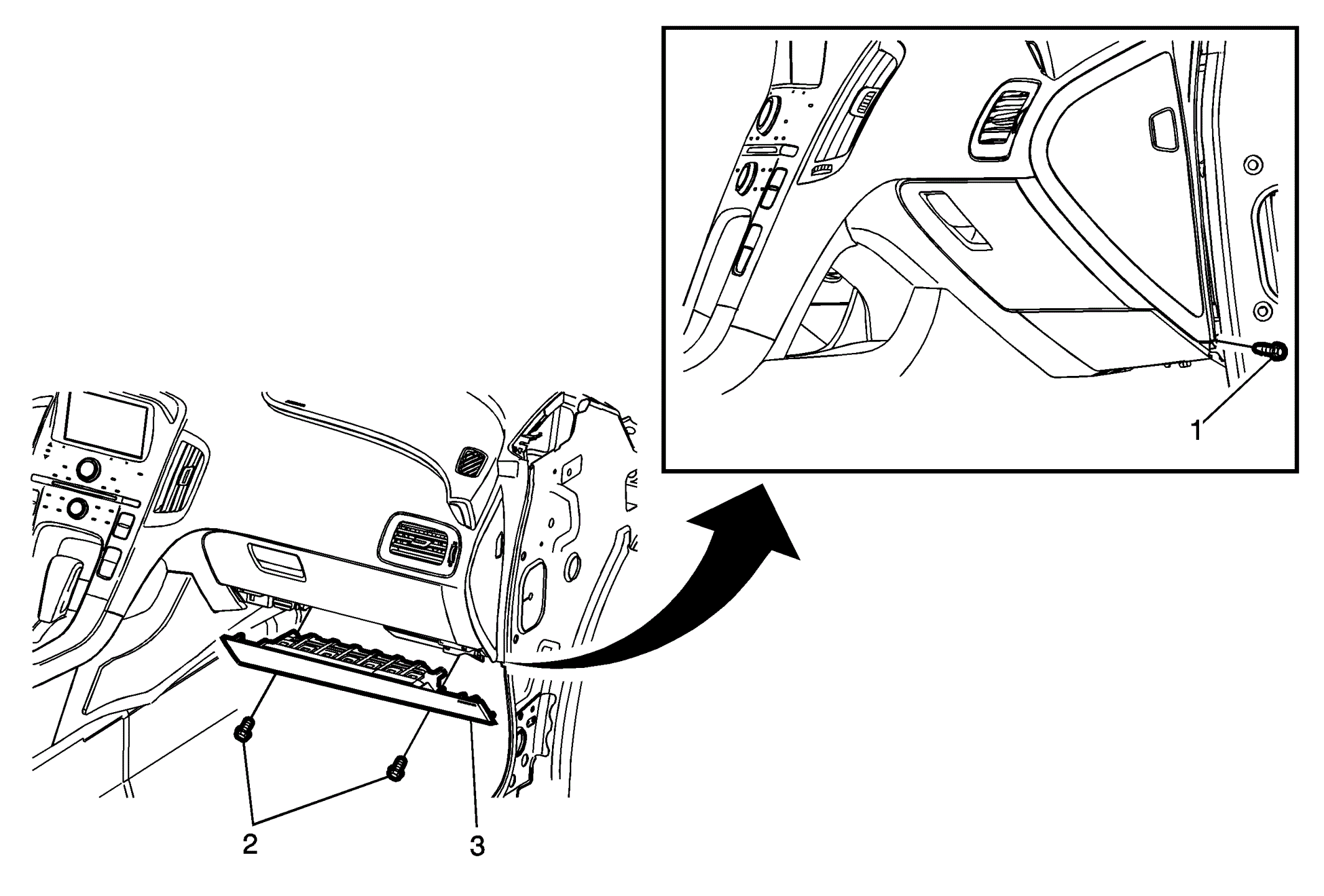

Fig 1: Inflatable Restraint Instrument Panel Lower Module - Passenger Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the right side instrument panel side trim panel. Refer to Instrument Panel Side Trim Panel Replacement . Remove the front side door opening floor carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement .
1	Instrument Panel Lower Airbag Fastener
2	Inflatable Restraint Instrument Panel Lower Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
3	Inflatable Restraint Instrument Panel Lower Passenger Side Module Assembly Procedure Slide the connector from the data link connector bracket to disconnect the electrical connector.
