Installation Procedure

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

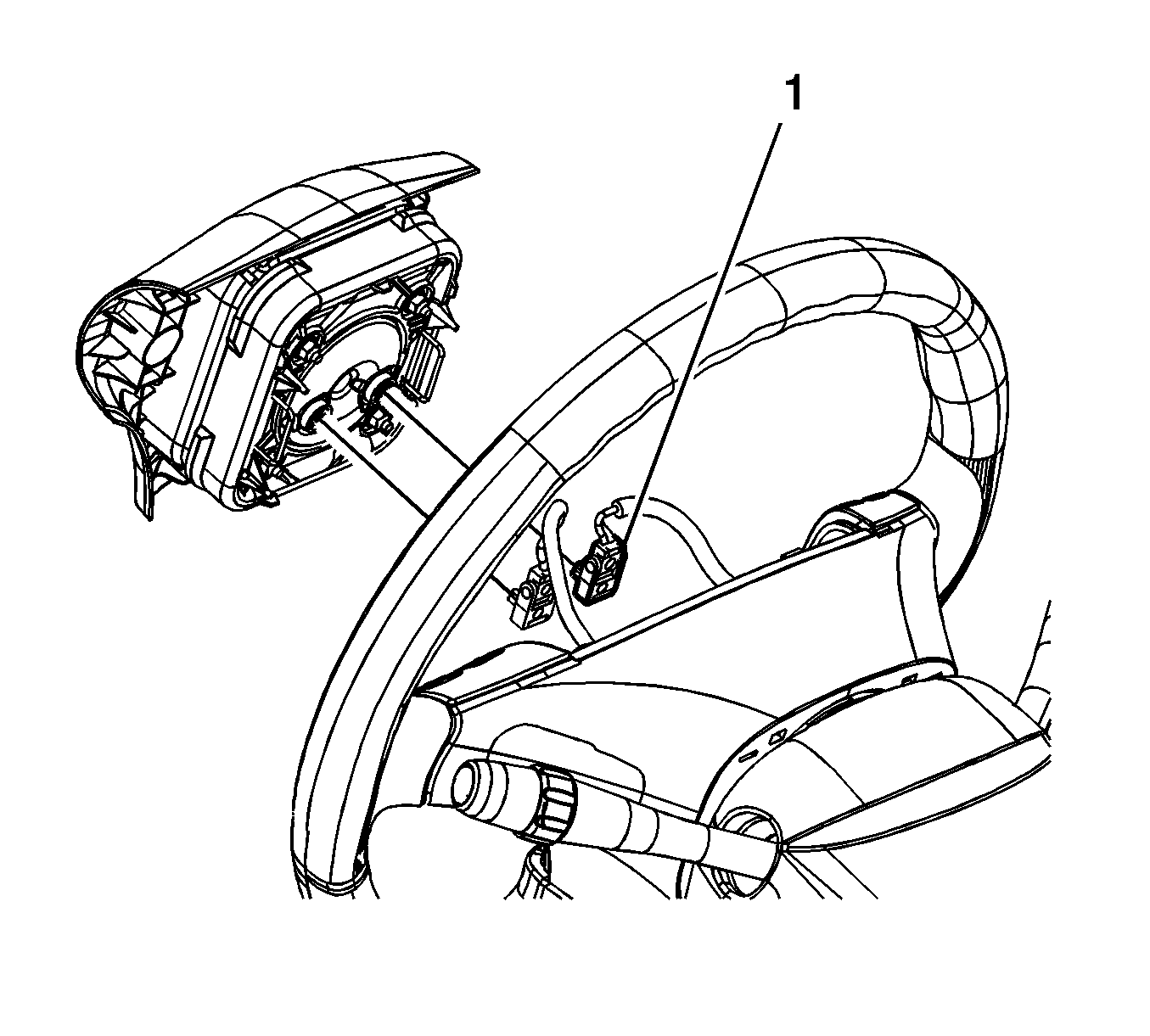

    Fig 1: Identifying The Electrical Connectors
    GM2103149Courtesy of GENERAL MOTORS COMPANY
  1. Connect the electrical connectors (1).

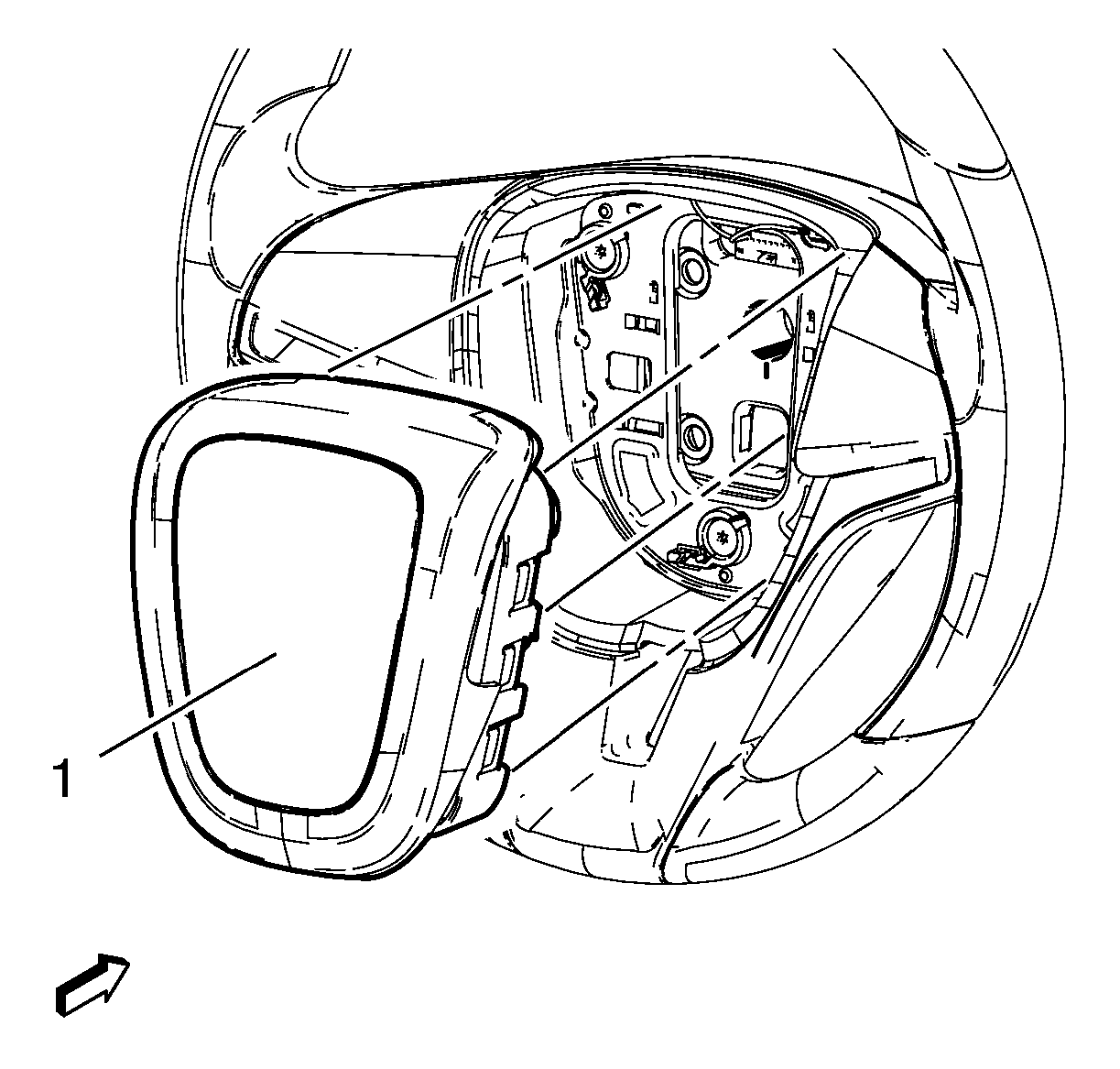

    2. Fig 2: Steering Wheel SIR Module
    GM2189274Courtesy of GENERAL MOTORS COMPANY
  2. Align the steering wheel module fasteners to the steering column fastener holes.
  3. Push the steering wheel module (1) firmly into the steering column in order the engage the fasteners.
  4. Enable the SIR system. Refer to SIR Disabling and Enabling .
  5. After replacing the module, fully deploy the old module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping .
