Radio Speaker Amplifier Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

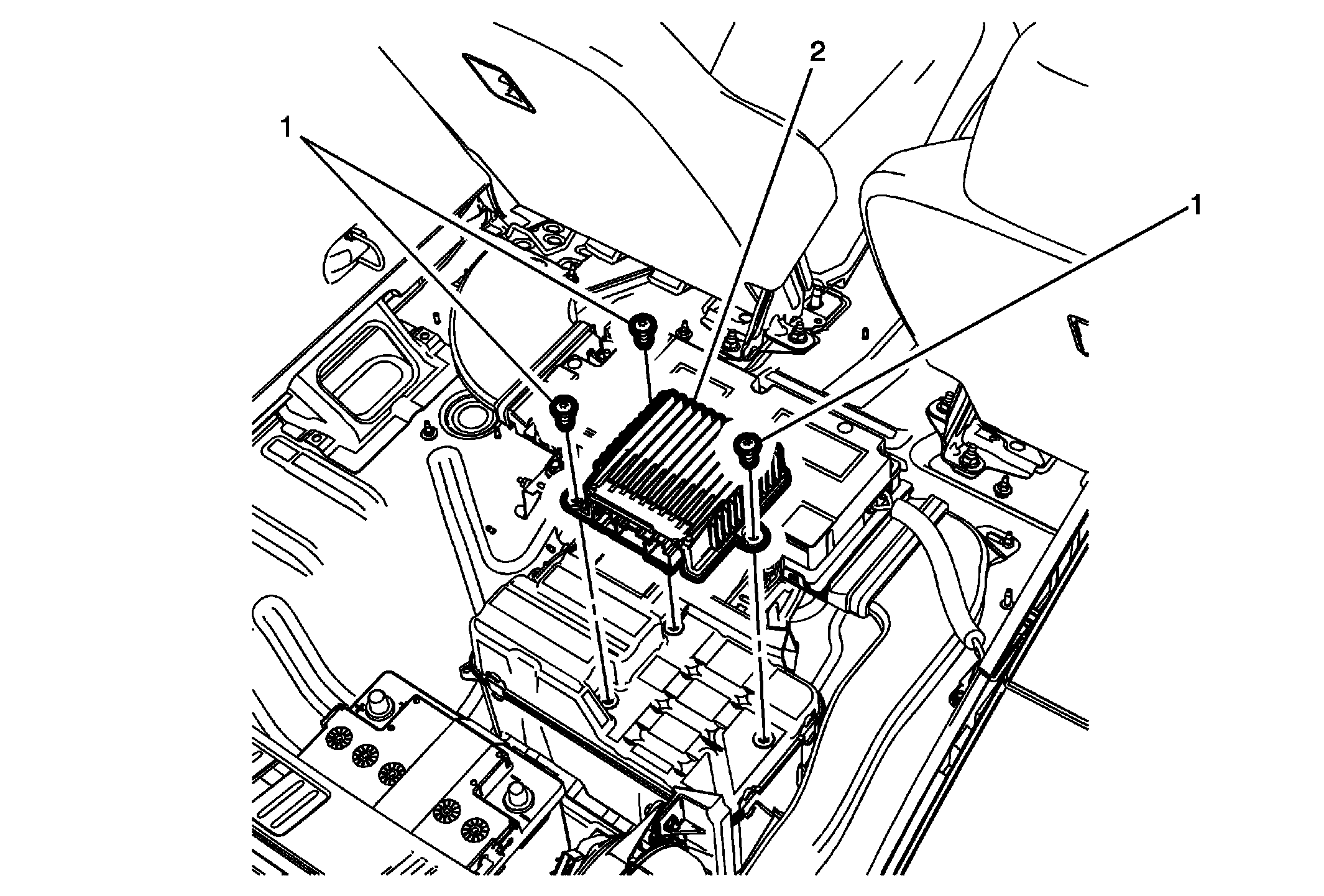

Fig 1: Radio Speaker Amplifier

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment floor stowage trim compartment. Refer to Rear Compartment Floor Stowage Trim Compartment Replacement .
1	Radio Speaker Amplifier Bolt (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Radio Speaker Amplifier Procedure Disconnect the electrical connectors.
