Steering Gear Drive Coupling Replacement

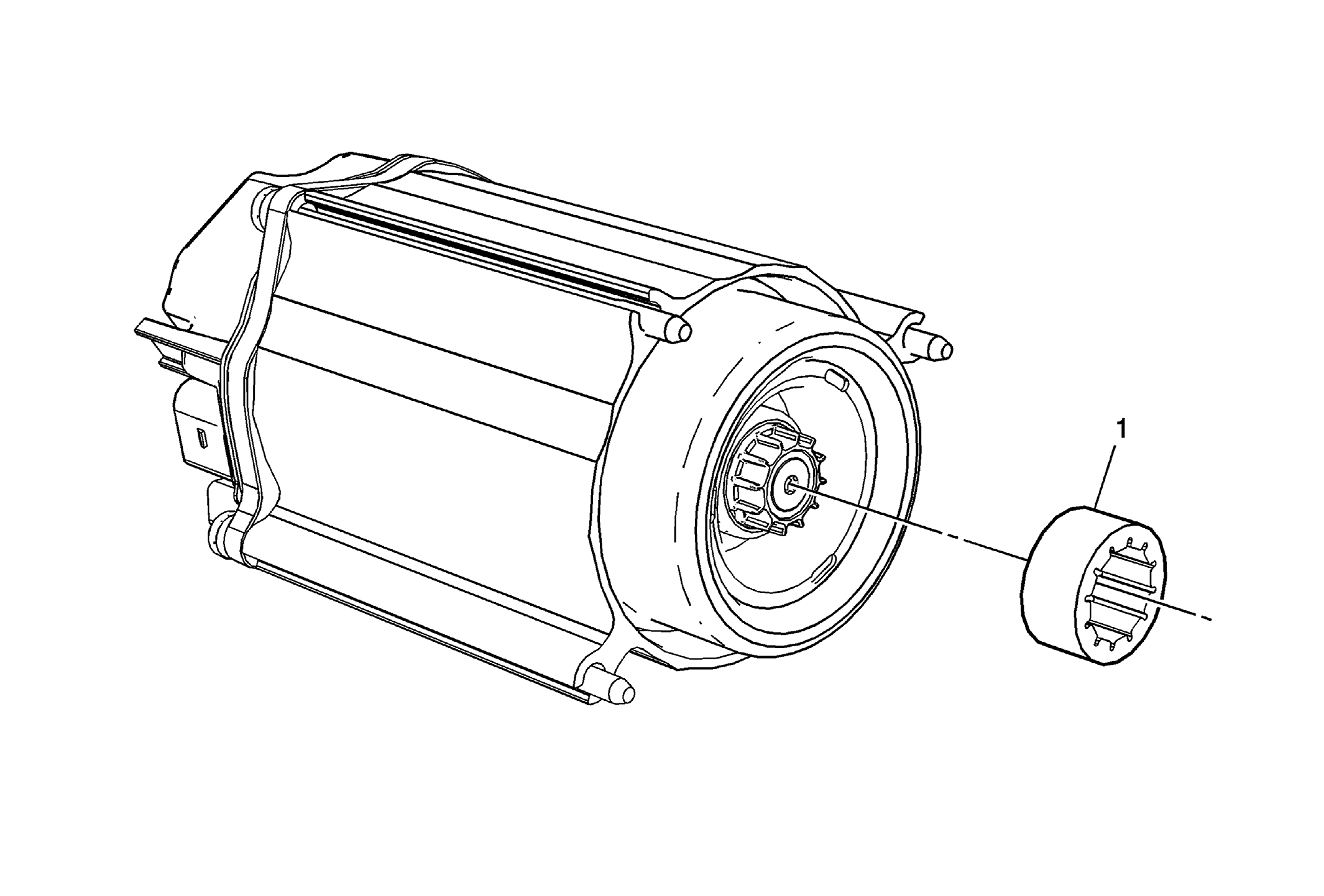

Fig 1: Steering Gear Coupling

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Do not use a service jack to lift this vehicle. Lifting the vehicle with a jack could cause the vehicle to slip off the jack and roll; this could cause injury or death. Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the power steering assist motor. Refer to Power Steering Assist Motor Replacement .
1	Steering Gear Coupling Tip: The steering gear coupling connects the power steering assist motor to the steering gear.

Callout

Component Name

WARNING: Do not use a service jack to lift this vehicle. Lifting the vehicle with a jack could cause the vehicle to slip off the jack and roll; this could cause injury or death.

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the power steering assist motor. Refer to Power Steering Assist Motor Replacement .

Steering Gear Coupling
Tip: The steering gear coupling connects the power steering assist motor to the steering gear.
