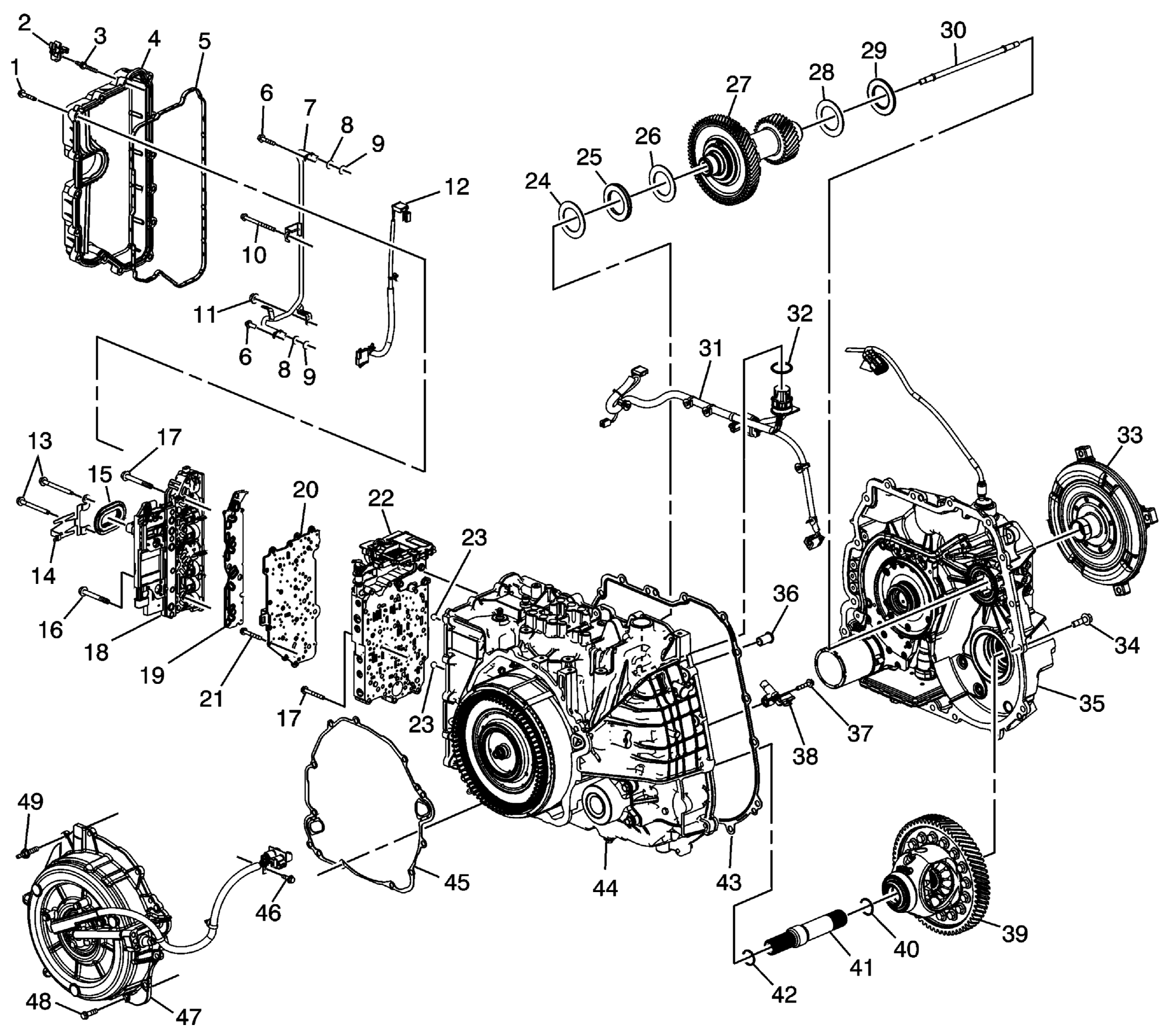

Disassembled Views

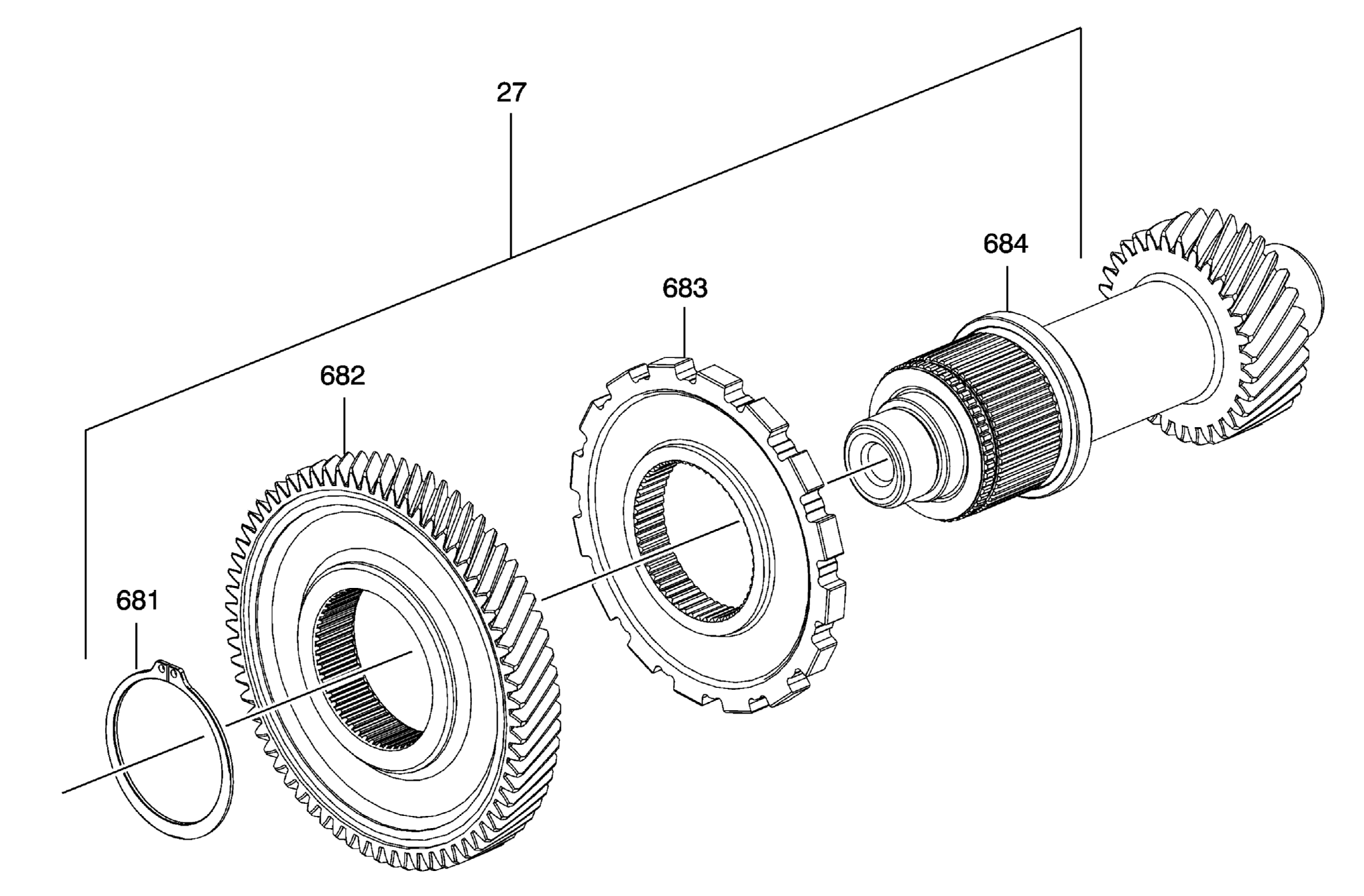

| Callout | Component Name |
|---|---|
| 1 | Control Valve Body Cover Bolt M6 x 35 mm Qty: 10 |
| 2 | Auxiliary Pump Motor Cable Retainer |
| 3 | Fluid Level Control Valve Stud M6 x 40 mm Qty: 5 |
| 4 | Control Valve Body Cover Assembly |
| 5 | Control Valve Body Cover Gasket |
| 6 | Fluid Cooler Outlet Pipe Assembly Bolt M5 x 16 mm Qty: 2 |
| 7 | Transmission Fluid Cooler Outlet Pipe Assembly |
| 8 | Transmission Fluid Cooler Outlet Washer |
| 9 | Transmission Fluid Cooler Outlet Seal |
| 10 | Control Valve Body Bolt M6 x 80 mm Qty: 1 |
| 11 | Variable Drive Pulley Retaining Nut |
| 12 | A/Trans Wiring Extension Harness Assembly |
| 13 | Control Valve Body Bolt M6 x 65 mm Qty: 5 |
| 14 | Control Solenoid Valve Spring |
| 15 | Control Valve Body Cover Wiring Connector Hole Seal |
| 16 | Control Valve Body Bolt M6 x 75 mm Qty: 4 |
| 17 | Control Valve Body Bolt M6 x 42 mm Qty: 5 |
| 18 | Control Solenoid (w/Body and TCM) TEHCM Valve Assembly |
| 19 | Control Solenoid Valve Filter Plate |
| 20 | Control Valve Channel Plate Assembly |
| 21 | Control Valve Body Bolt M6 x 48 mm Qty: 12 |
| 22 | Control Valve Body |
| 23 | Control Valve Body Ball Check Valve Qty: 2 |
| 24 | Front Differential Bearing Spacer |
| 25 | Front Drive Pinion Gear Shaft Thrust Bearing Assembly (LHS) |
| 26 | Front Differential Drive Pinion Gear Bearing Thrust Washer - Selective (LHS) |
| 27 | Front Differential Drive Pinion (w/Transfer Gear) Gear Assembly |
| 28 | Front Differential Drive Pinion Gear Bearing Thrust Washer - Selective (RHS) |
| 29 | Front Drive Pinion Gear Shaft Thrust Bearing Assembly Selective (RHS) |
| 30 | Front Differential Transfer Drive Gear Fluid Passage Tube Assembly |
| 31 | A/Trans Wiring Harness Assembly |
| 32 | Wiring Connector Seal |
| 33 | A/Trans Torque Dampener Assembly |
| 34 | Torque Dampener and Differential Housing Bolt M10 x 35 mm Qty: 17 |
| 35 | Torque Dampener and Differential (w/Fluid Pump) Housing Assembly |
| 36 | A/Trans Pump Fluid Outlet Seal Assembly |
| 37 | A/Trans Output Speed Sensor Bolt M6 x 30 mm Qty: 1 |
| 38 | A/Trans Output Speed Sensor Assembly |
| 39 | Front Differential Carrier Assembly (FWD) |
| 40 | Front Wheel Drive Shaft Retaining Ring |
| 41 | Output Shaft Assembly |
| 42 | Front Wheel Drive Shaft Retaining Ring |
| 43 | Torque Dampener Housing Outer Seal |
| 44 | A/Trans Case Assembly |
| 45 | A/Trans Case Cover Gasket |
| 46 | A/Trans Wiring Harness Shield Bolt M6 x 20 mm Qty: 1 External |
| 47 | A/Trans Case Cover Assembly |
| 48 | A/Trans Case Cover Bolt M8 x 30 mm Qty: 9 |
| 49 | Case Cover Stud M8 x 30 mm Qty: 2 |

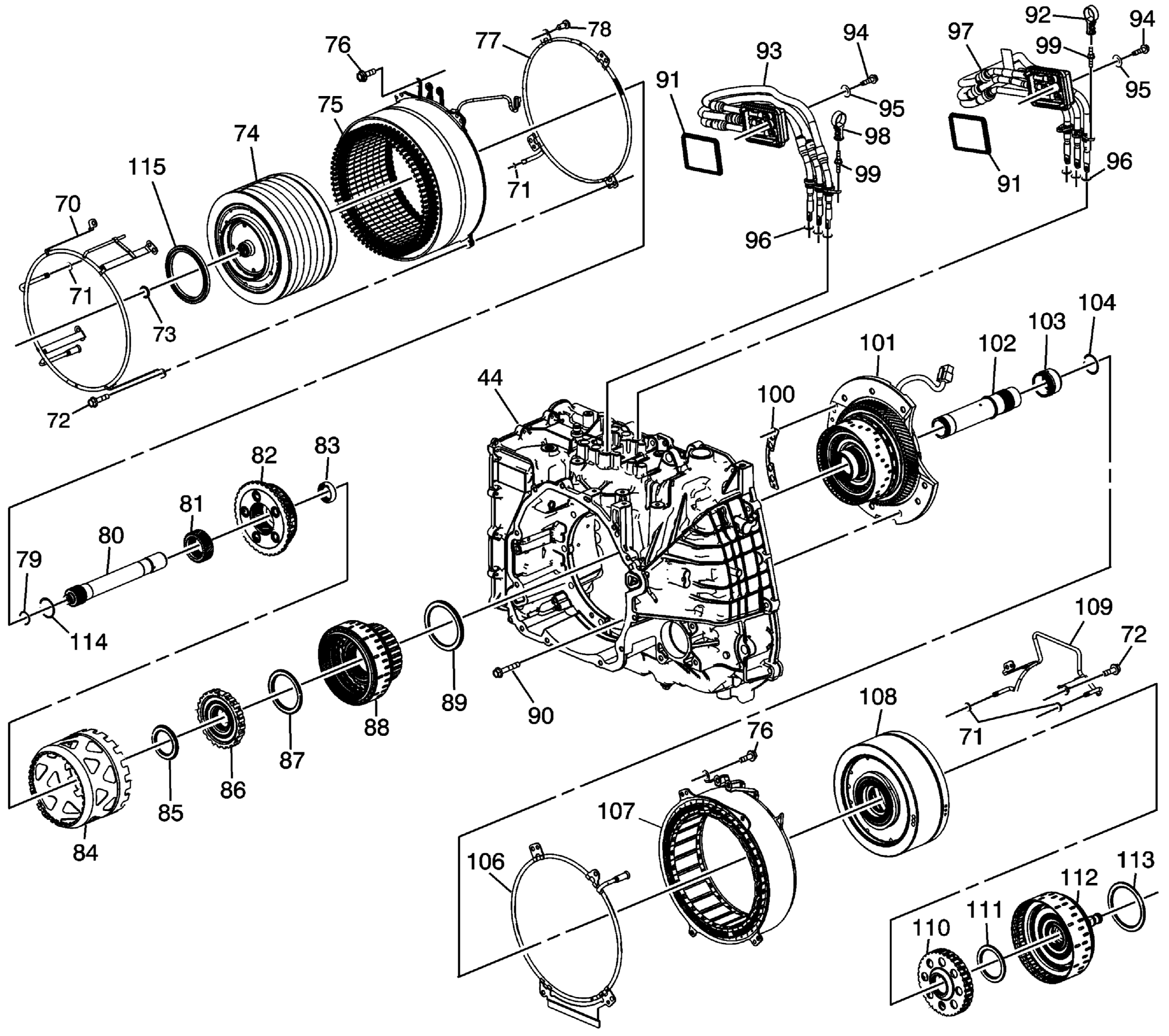

| Callout | Component Name |
|---|---|
| 44 | A/Trans Case Assembly |
| 70 | Drive Motor/Generator Stator Cooling Tube Assembly (LHS Unit B) |
| 71 | Drive Motor/Generator Stator Cooling Tube Seal Qty: 4 |
| 72 | Drive Motor/Generator Stator Bolt M6 x 20 mm Qty: 8 |
| 73 | Drive Motor/Generator Rotor Lube Seal |
| 74 | Drive Motor/Generator Rotor Assembly - Unit B |
| 75 | Drive Motor/Generator Stator Assembly - Unit B |
| 76 | Drive Motor/Generator Power Inverter Module Cable Connector Bolt M6 x 20 mm Qty: 6 Internal |
| 77 | Drive Motor/Generator Stator Cooling Tube Assembly (RHS Unit B) |
| 78 | Drive Motor/Generator Stator Cooling Tube Retainer |
| 79 | Output Sun Gear Shaft Lube O-Ring Seal |
| 80 | Output Sun Gear Shaft |
| 81 | Output Sun Gear |
| 82 | Output Carrier Assembly - C2 |
| 83 | Output Carrier Roller Bearing Assembly |
| 84 | Output Carrier Shell |
| 85 | Output Carrier Thrust Bearing Assembly |
| 86 | Variable Hi and 2-3-4 Clutch Hub |
| 87 | Variable Hi and 2-3-4 Clutch Hub Thrust Bearing Assembly |
| 88 | Variable Hi and 2-3-4 Clutch Assembly |
| 89 | Variable Hi and 2-3-4 Clutch Housing Thrust Bearing Assembly |
| 90 | Center Support Bolt M10 x 25 mm Qty: 9 |
| 91 | Drive Motor/Generator Power Inverter Module Cable Housing Cover Seal |
| 92 | Auxiliary Pump Motor Cable Retainer - 3 Phase - Cable A |
| 93 | Drive Motor/Generator Power Inverter Module Cable Assembly - 3 Phase - B |
| 94 | High Voltage Cover to Controller Retaining Bolt Qty: 2 |
| 95 | Drive Motor Power Inverter Module Cable Connector Bolt Seal Qty: 2 |
| 96 | Drive Motor/Generator Power Inverter Module Cable Assembly Seal - 3 Phase |
| 97 | Drive Motor/Generator Power Inverter Module Cable Assembly - 3 Phase - A |
| 98 | Auxiliary Pump Motor Cable Retainer - 3 Phase - Cable B |
| 99 | Drive Motor/Generator Power Inverter Module Cable Stud M6 x 20 Qty: 1 |
| 100 | Center Support Oil Passage Seal |
| 101 | Center (w/Variable Low and 1-2 Reverse Clutch) Support Assembly |
| 102 | Input Clutch Hub Shaft |
| 103 | Generator/Drive Motor Rotor Hub Shaft |
| 104 | Input Shaft Retainer |
| 106 | Generator/Drive Motor Stator Cooling Tube Assembly (LHS Unit A) |
| 107 | Generator/Drive Motor Stator Assembly - Unit A |
| 108 | Generator/Drive Motor Rotor Assembly - Unit A |
| 109 | Generator/Drive Motor Stator Cooling Tube Assembly (RHS Unit A) |
| 110 | Input Clutch Hub |
| 111 | Input Carrier Thrust Bearing Assembly |
| 112 | 1-3 Reverse Clutch Assembly |
| 113 | 1-3 Reverse Clutch Thrust Bearing Assembly |
| 114 | Output Sun Gear Retaining Ring |
| Callout | Component Name |
|---|---|
| 44 | A/Trans Case Assembly |

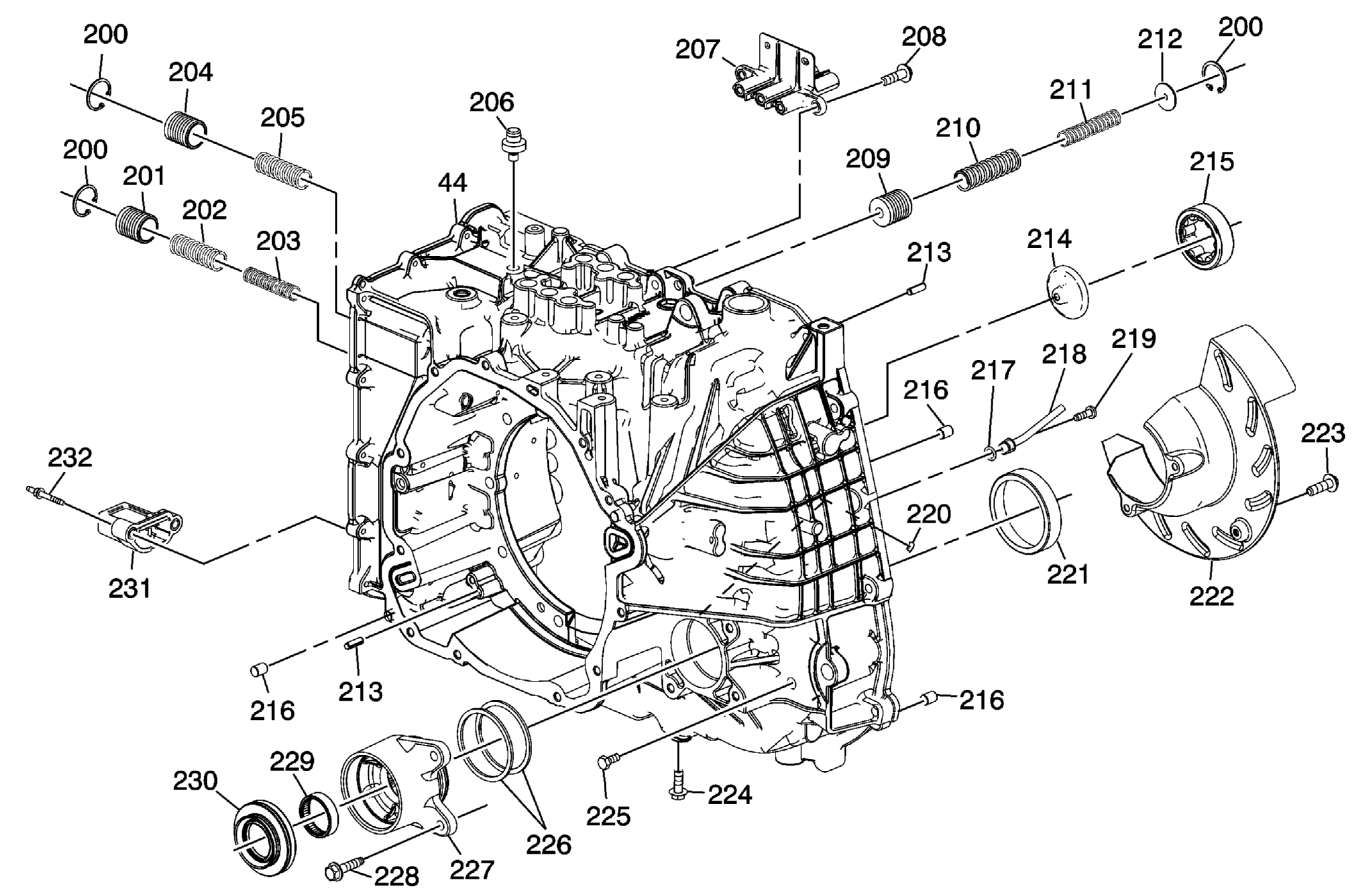

| 200 | Accumulator Piston Retaining Ring |
| 201 | Variable Hi and 2-3-4 Clutch Accumulator Piston |
| 202 | Variable Hi and 2-3-4 Clutch Accumulator Piston Spring |
| 203 | Variable Hi and 2-3-4 Clutch Accumulator Piston Spring - Inner |
| 204 | Variable Low and 1-2 Reverse Clutch Accumulator Piston |
| 205 | Variable Low and 1-2 Reverse Clutch Accumulator Piston Spring |
| 206 | A/Trans Vent Assembly |
| 207 | Drive Motor Generator Power Inverter Module Cable Terminal Insulator Block Assembly |
| 208 | Drive Motor Generator Power Inverter Module Cable Terminal Insulator Block Bolt M6 x 20 mm Qty: 2 |
| 209 | 1-3 Reverse Clutch Accumulator Piston |
| 210 | 1-3 Reverse Clutch Accumulator Piston Spring - Outer |
| 211 | 1-3 Reverse Clutch Accumulator Piston Spring - Internal |
| 212 | 1-3 Reverse Clutch Accumulator Piston Spring Washer |
| 213 | Generator/Drive Motor Stator Locator Pin |
| 214 | Front Differential Drive Pinion Gear Lube Dam |
| 215 | Front Differential Drive Pinion Gear Roller Bearing Assembly |
| 216 | Transmission Case Locator Pin |
| 217 | Front Differential Carrier Lube Pipe Seal |
| 218 | Front Differential Carrier Lube Pipe |
| 219 | Front Differential Carrier Lube Pipe Bolt M5 x 16 mm Qty: 1 |
| 220 | Front Differential Carrier Lube Cup |
| 221 | Front Differential Drive Pinion Gear Bearing Cup |
| 222 | Front Differential Carrier Baffle (Case) |
| 223 | Front Differential Carrier Baffle Bolt M6 x 20 mm Qty: 3 |
| 224 | Transmission Fluid Drain Plug Qty: 1 |
| 225 | A/Trans Fluid Level Hole Plug Qty: 1 |
| 226 | A/Trans Case Extension Seal Qty: 2 |
| 227 | Case Extension Assembly |
| 228 | Case Extension Bolt M10 x 25 mm Qty: 3 |
| 229 | Front Wheel Drive Shaft Bearing Assembly |
| 230 | Front Wheel Drive Shaft Oil Seal Assembly (LHS) |
| 231 | A/Trans Fluid Level Control Valve |
| 232 | A/Trans Fluid Level Control Valve Stud M6 x 40 mm Qty: 2 |

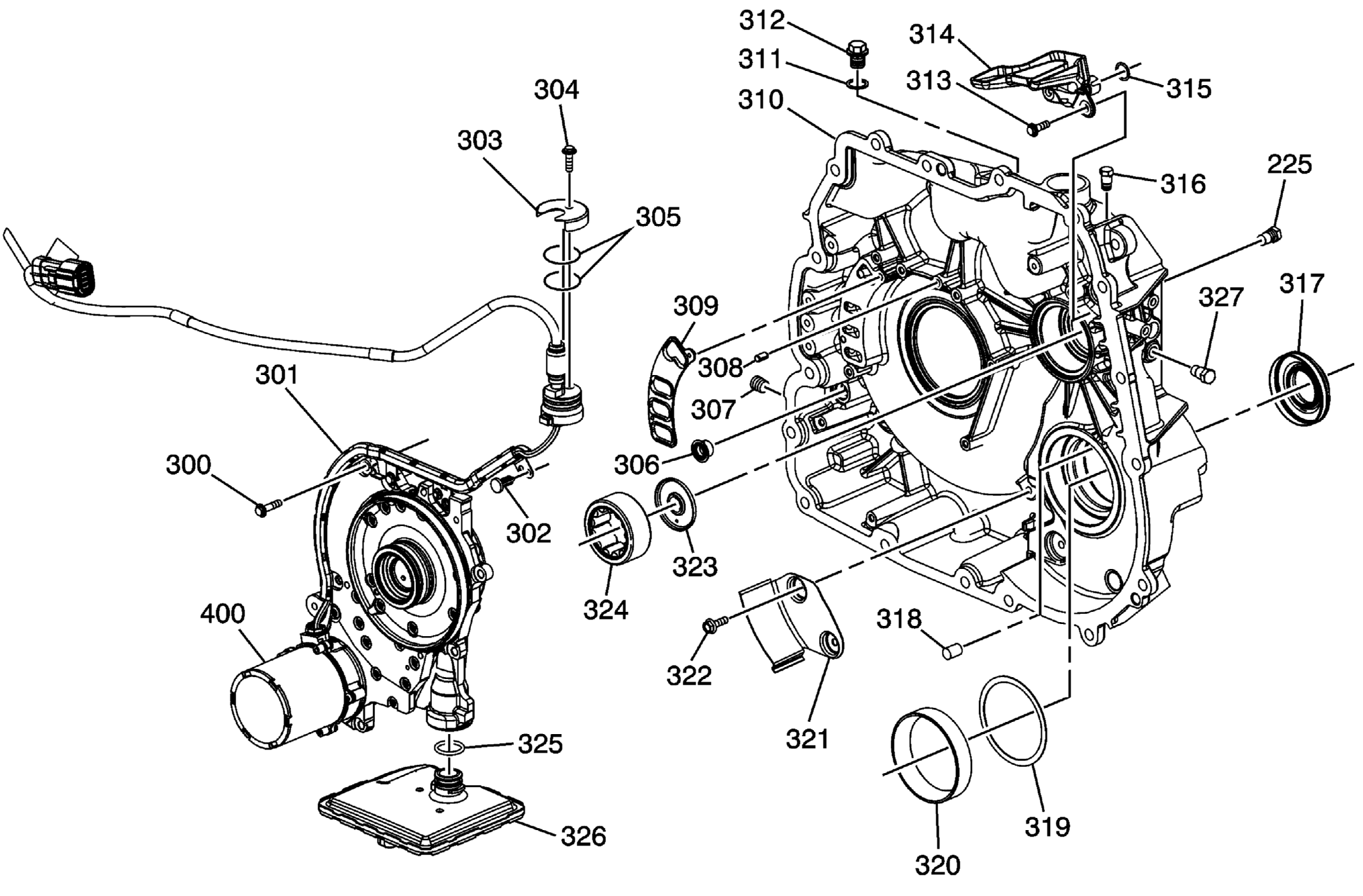

| Callout | Component Name |
|---|---|
| 225 | A/Trans Fluid Level Hole Plug Qty: 1 |
| 300 | A/Trans Fluid Pump Bolt M6 x 25 mm Qty: 8 |
| 301 | A/Trans Fluid Pump Assembly |
| 302 | A/Trans Auxiliary Fluid Pump Motor (3 Phase) Cable Retainer Bolt M6 x 20 mm Qty: 1 |
| 303 | Auxiliary Fluid Motor Retainer |
| 304 | A/Trans Auxiliary Fluid Pump Motor (3 Phase) Cable Bolt M6 x 20 mm Qty: 1 |
| 305 | O-Ring Seal |
| 306 | A/Trans Pump Fluid Outlet Seal Assembly |
| 307 | Auxiliary Pump Press Plug |
| 308 | A/Trans Fluid Pump Locator Pin |
| 309 | A/Trans Fluid Pump Seal Assembly |
| 310 | Torque/Dampener and Differential Housing Assembly |
| 311 | Fill Hole Plug Seal |
| 312 | Fill Hole Plug M20 x 20 mm Qty: 1 |
| 313 | A/Trans Fluid Trough Bolt M6 x 20 mm Qty: 2 |
| 314 | A/Trans Fluid Trough Assembly |
| 315 | A/Trans Fluid Trough Seal |
| 316 | A/Trans Fluid Passage Plug Qty: 1 |
| 317 | Front Wheel Drive Shaft Oil Seal Assembly (RHS) |
| 318 | Front Differential Carrier Cup Plug |
| 319 | Front Differential Bearing Washer - Selective |
| 320 | Front Differential Drive Pinion Gear Bearing Cup |
| 321 | Front Differential Carrier Baffle (Housing) |
| 322 | Front Differential Carrier Baffle Bolt M6 x 20 mm Qty: 2 |
| 323 | Front Differential Drive Pinion Gear Lube Dam |
| 324 | Front Differential Drive Pinion Gear Roller Bearing Assembly |
| 325 | A/Trans Fluid Filter Seal |
| 326 | A/Trans Fluid Filter |
| 327 | A/Trans Fluid Passage Plug Qty: 1 |
| Callout | Component Name |
|---|---|
| 400 | Electric Auxiliary Pump Drive Motor Assembly |
| 401 | Input Shaft Bearing Assembly |
| 402 | 1-3 Reverse Clutch Housing Seal |
| 403 | A/Trans Fluid Pump Cover Bolt M6 x 25 mm Qty: 19 |
| 404 | A/Trans Fluid Pump Cover |
| 405 | Harness Bolt Retainers Qty: 3 |
| 406 | A/Trans Fluid Pump Seal |
| 407 | A/Trans Fluid Pump Drive Gear - Selective |
| 408 | A/Trans Fluid Pump Driven Gear - Selective |
| 409 | A/Trans Auxiliary Fluid Pump Drive Gear |
| 410 | A/Trans Auxiliary Fluid Pump Driven Gear |
| 411 | A/Trans Fluid Pump Drive Shaft Bushing |
| 412 | A/Trans Fluid Pump Locator Pin |
| 413 | A/Trans Fluid Pump Body Assembly |
| 414 | Pressure Regulator Valve |
| 415 | Pressure Regulator Valve Spring |
| 416 | Pressure Regulator Valve Bore Plug |
| 417 | Pressure Regulator Valve Bore Plug Retainer |
| 418 | A/Trans Fluid Pump Cutoff Valve |
| 419 | A/Trans Fluid Pump Cutoff Valve Spring |
| 420 | A/Trans Fluid Auxiliary Pump Cutoff Valve |
| 421 | A/Trans Fluid Pump Cutoff Valve Bore Plug |
| 422 | 1-3 Reverse Clutch Housing Air Bleed Valve |
| 423 | Pressure Relief Ball Valve - Main Pump |
| 424 | Pressure Relief Ball Valve Spring |
| 425 | A/Trans Torque Dampener Pressure Regulator Valve Bore Plug |
| 426 | Control Valve Body Ball Check Valve Spring |
| 427 | Control Valve Body Ball Check Valve |
| 428 | Pressure Regulator Valve Bore Plug Retainer |
| 429 | Pressure Relief Ball Valve Spring |
| 430 | Pressure Relief Ball Valve - Auxiliary Pump |
| 431 | A/Trans Auxiliary Fluid Pump Bolt M8 x 51 mm Qty: 4 |
| 432 | A/Trans Torque Dampener Bearing Seal |
| 433 | A/Trans Torque Dampener Bearing Assembly |
| 434 | A/Trans Torque Dampener Bearing Retaining Ring |
| 435 | A/Trans Torque Dampener Fluid Seal Assembly |
| 436 | A/Trans Torque Dampener Seal Retaining Ring |
| 437 | A/Trans Fluid Pump Seal |
| 438 | A/Trans Auxiliary Fluid Pump Bolt M5 x 16 Qty: 1 |
| 439 | A/Trans Fluid Pump (O-Ring) Seal |
| 440 | A/Trans Auxiliary Fluid Pump Motor Seal |
| Callout | Component Name |
|---|---|

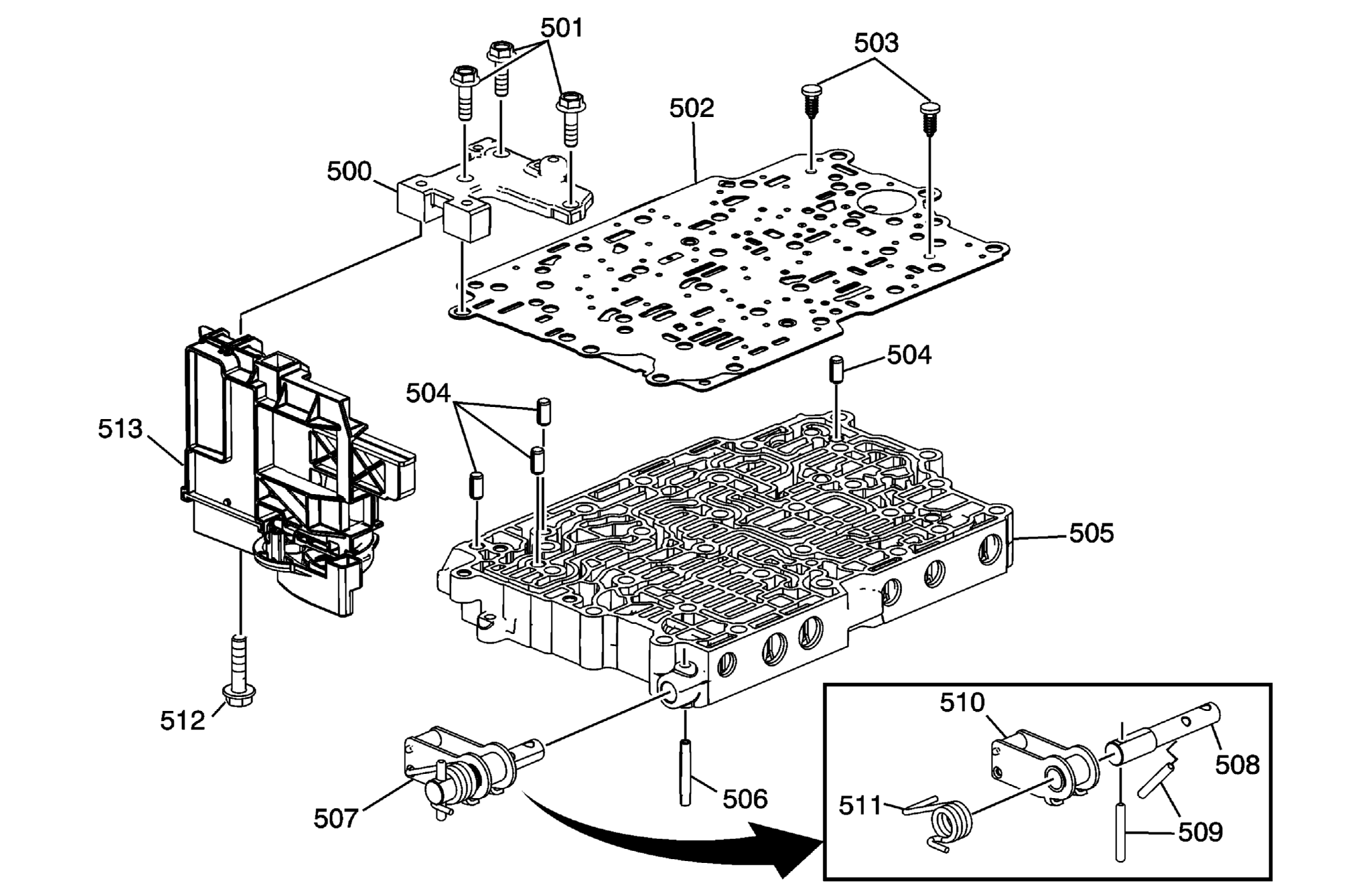

| 500 | A/Trans Manual Shift Shaft Position Switch Mounting Bracket Assembly |
| 501 | Control Valve Channel Plate Bolt M6 x 20 mm Qty: 3 |
| 502 | Control Valve Body Spacer (w/Gasket) Plate Assembly |
| 503 | Control Valve Body Spacer Retainer Qty: 2 |
| 504 | Control Valve Body Locator Pin Qty: 4 |
| 505 | Control Valve Body Assembly |
| 506 | Manual Shift Shaft Detent Spring Retaining Pin |
| 507 | Manual Shift Shaft Detent Assembly |
| 508 | Manual Shift Shaft |
| 509 | Manual Shift Shaft Detent Spring Pin |
| 510 | Detent Lever |
| 511 | Detent Lever Spring |
| 512 | A/Trans Manual Shift Shaft Position Switch Bolt M6 x 25 mm Qty: 2 |
| 513 | A/Trans Manual Shift Shaft Position Switch Assembly |

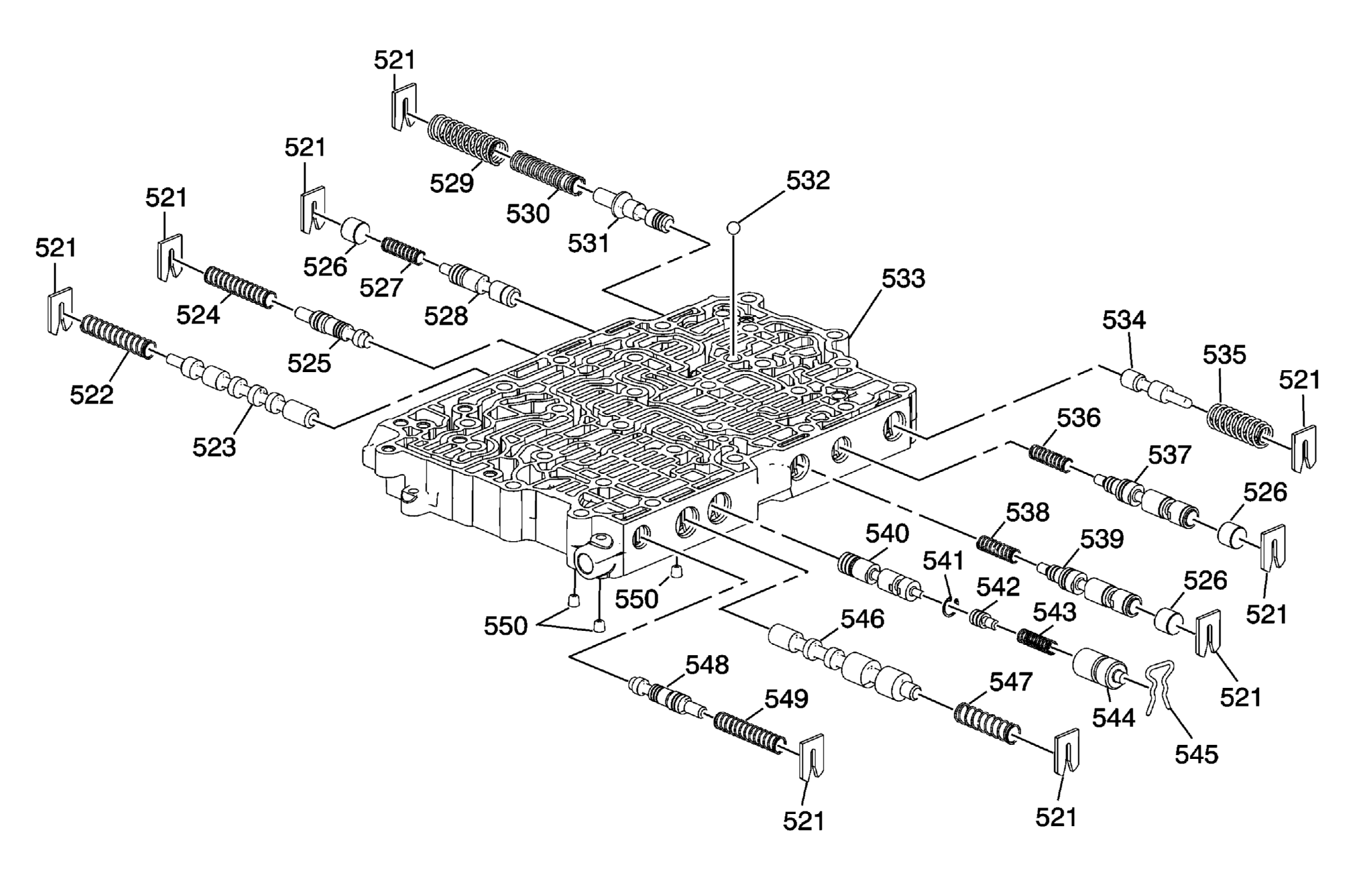

| Callout | Component Name |
|---|---|
| 521 | Valve Retaining Clip |
| 522 | Shift Solenoid Valve Spring |
| 523 | Shift Solenoid Valve |
| 524 | Variable Hi and 2-3-4 Clutch and Drive Motor/Generator Stator Cooling Regulator Boost Valve Spring |
| 525 | Variable Hi and 2-3-4 Clutch and Drive Motor/Generator Stator Cooling Regulator Boost Valve |
| 526 | Valve Bore Plug |
| 527 | A/Trans Torque Dampener Bypass Clutch Spring |
| 528 | A/Trans Torque Dampener Bypass Clutch Valve |
| 529 | Actuator Feed Limit Valve Spring - Outer |
| 530 | Actuator Feed Limit Valve Spring - Inner |
| 531 | Actuator Feed Limit Valve |
| 532 | Control Valve Body Ball Check Valve |
| 533 | Control Valve Body |
| 534 | Cooler Feed Limit Valve |
| 535 | Cooler Feed Limit Valve Spring |
| 536 | 1-3 Reverse Clutch and Generator/Drive Motor Stator Cooling Regulator Valve Spring |
| 537 | 1-3 Reverse Clutch and Generator/Drive Motor Stator Cooling Regulator Valve |
| 538 | Variable Hi and 2-3-4 Clutch and Drive Motor/Generator Stator Cooling Regulator Valve Spring |
| 539 | Variable Hi and 2-3-4 Clutch and Drive Motor/Generator Stator Cooling Regulator Valve |
| 540 | Variable Low and 1-2 Reverse and 4th Clutch and Drive Motor/Generator Stator Cooling Regulator Valve |
| 541 | Variable Low and 1-2 Reverse and 4th Clutch and Drive Motor/Generator Stator Cooling Regulator Feedback Valve Retainer |
| 542 | Variable Low and 1-2 Reverse and 4th Clutch and Drive Motor/Generator Stator Cooling Regulator Feedback Valve |
| 543 | Variable Low and 1-2 Reverse and 4th Clutch and Drive Motor/Generator Stator Cooling Regulator Valve Spring |
| 544 | Variable Low and 1-2 Reverse and 4th Clutch and Drive Motor/Generator Stator Cooling Regulator Feedback Valve Bushing |
| 545 | Valve Retaining Clip |
| 546 | Shift Solenoid Valve |
| 547 | Shift Solenoid Valve Spring |
| 548 | 1-2 Reverse and 4th Clutch Regulator Boost Valve |
| 549 | 1-2 Reverse and 4th Clutch Regulator Boost Valve Spring |
| 550 | Modulated Fluid Pressure Orifice |
| Callout | Component Name |
|---|---|
| 600 | A/Trans Control Wiring Harness Shield Bolt M6 x 16 mm Qty: 3 External |
| 601 | A/Trans Control Wiring Harness Shield |
| 602 | A/Trans Case Cover |
| 603 | Drive Motor/Generator Position Sensor Pin |
| 604 | Drive Motor/Generator Rotor Lube Seal Sleeve |
| 605 | Drive Motor/Generator Position Sensor Stator Assembly |
| 606 | Generator/Drive Motor Position Sensor Bolt M5 x 16 mm Qty: 3 |
| 607 | Wiring Harness Clip Qty: 2 |
| 608 | A/Trans Control Wiring Harness Connector Bracket |
| Callout | Component Name |
|---|---|
| 620 | Output Carrier Internal Gear Retaining Ring |
| 621 | Output Carrier Internal Gear |

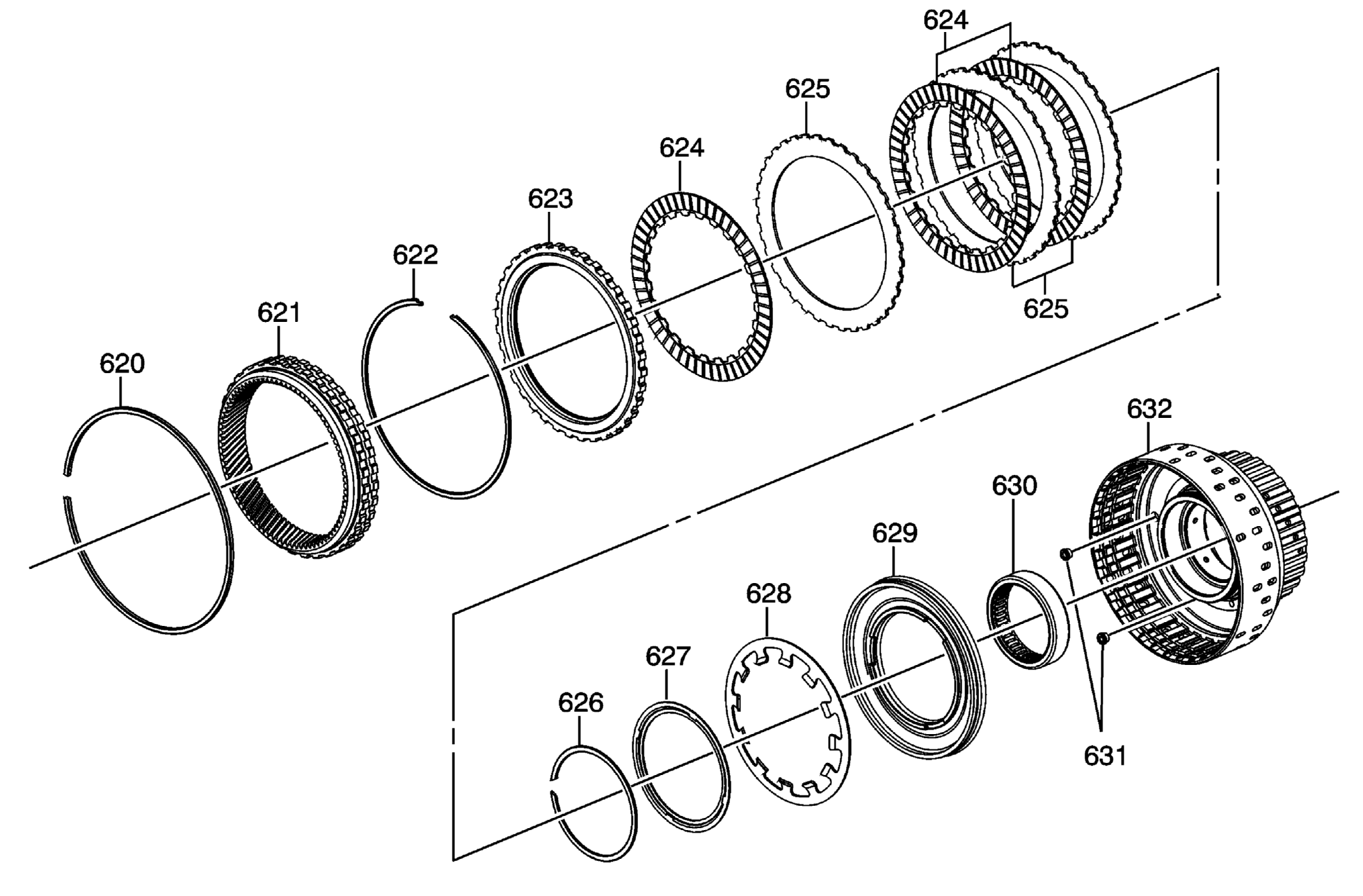

| 622 | Variable Hi and 2-3-4 Clutch Backing Plate Retaining Ring - Selective |
| 623 | Variable Hi and 2-3-4 Clutch Backing Plate |
| 624 | Variable Hi and 2-3-4 Clutch Plate Assembly - Friction |
| 625 | Variable Hi and 2-3-4 Clutch Plate |
| 626 | Variable Hi and 2-3-4 Clutch Spring Retaining Ring |
| 627 | Variable Hi and 2-3-4 Clutch Spring Retainer |
| 628 | Variable Hi and 2-3-4 Clutch Spring |
| 629 | Variable Hi and 2-3-4 Clutch Piston Assembly |
| 630 | Center Support Roller Bearing Assembly |
| 631 | Variable Hi and 2-3-4 Clutch Housing Valve |
| 632 | Variable Hi and 2-3-4 Clutch Housing Assembly |
| Callout | Component Name |
|---|---|

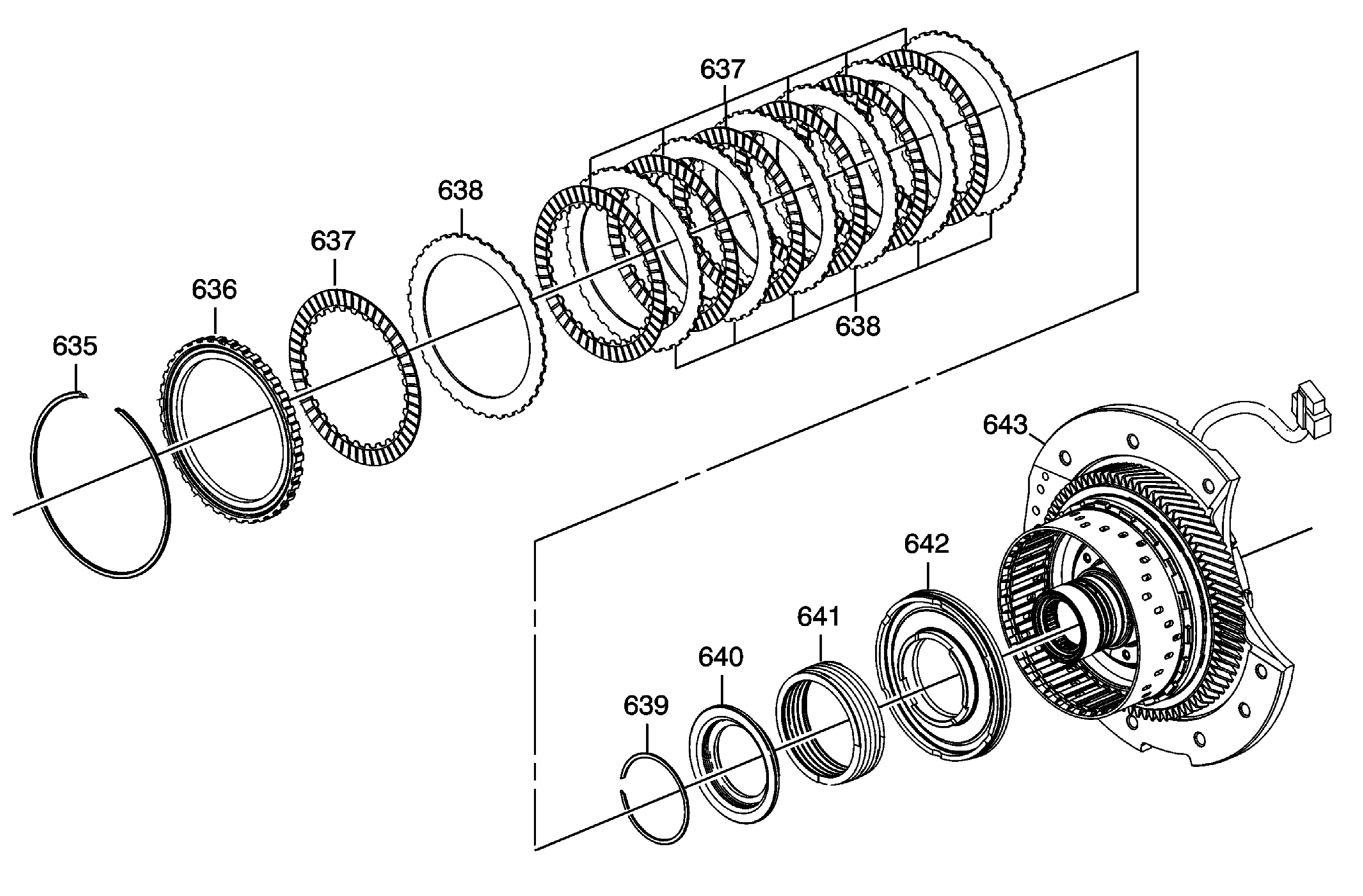

| 635 | Variable Low and 1-2 Reverse Clutch Backing Plate Retaining Ring - Selective |
| 636 | Variable Low and 1-2 Reverse Clutch Backing Plate |
| 637 | Variable Low and 1-2 Reverse Clutch Plate Assembly - Friction |
| 638 | Variable Low and 1-2 Reverse Clutch Plate |
| 639 | Variable Low and 1-2 Reverse Clutch Spring Retaining Washer Retaining Ring |
| 640 | Variable Low and 1-2 Reverse Clutch Spring Retainer |
| 641 | Variable Low and 1-2 Reverse Clutch Spring |
| 642 | Variable Low and 1-2 Reverse Clutch Piston Assembly |
| 643 | Center Support Assembly |
| Callout | Component Name |
|---|---|

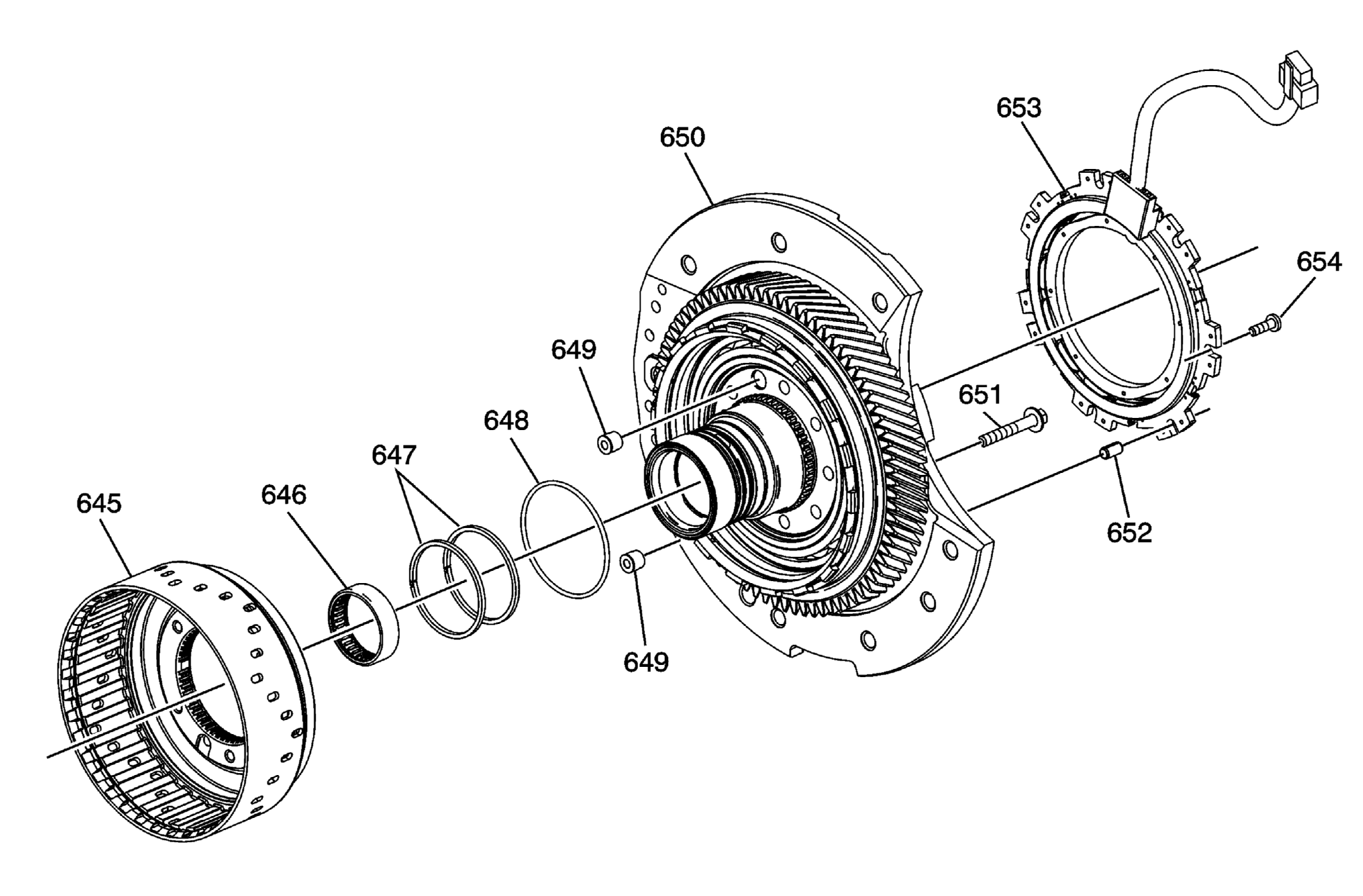

| 645 | Variable Low and 1-2 Reverse Clutch Housing Assembly |
| 646 | Input Sun Gear Shaft Roller Bearing Assembly |
| 647 | Variable Hi and 2-3-4 Clutch Seal |
| 648 | Variable Low and 1-2 Reverse Clutch Housing (O-Ring) Seal |
| 649 | Variable Low and 1-2 Reverse Clutch Housing Fluid Passage Seal Qty: 2 |
| 650 | Center Support |
| 651 | Variable Low and 1-2 Reverse Clutch Housing Bolt M6 x 39.5 mm Qty: 7 |
| 652 | Locating Pin |
| 653 | Generator/Drive Motor Position Sensor Stator Assembly |
| 654 | Drive Motor Generator Position Switch Sensor Bolt M5 x 16 mm Qty: 3 |
| Callout | Component Name |
|---|---|

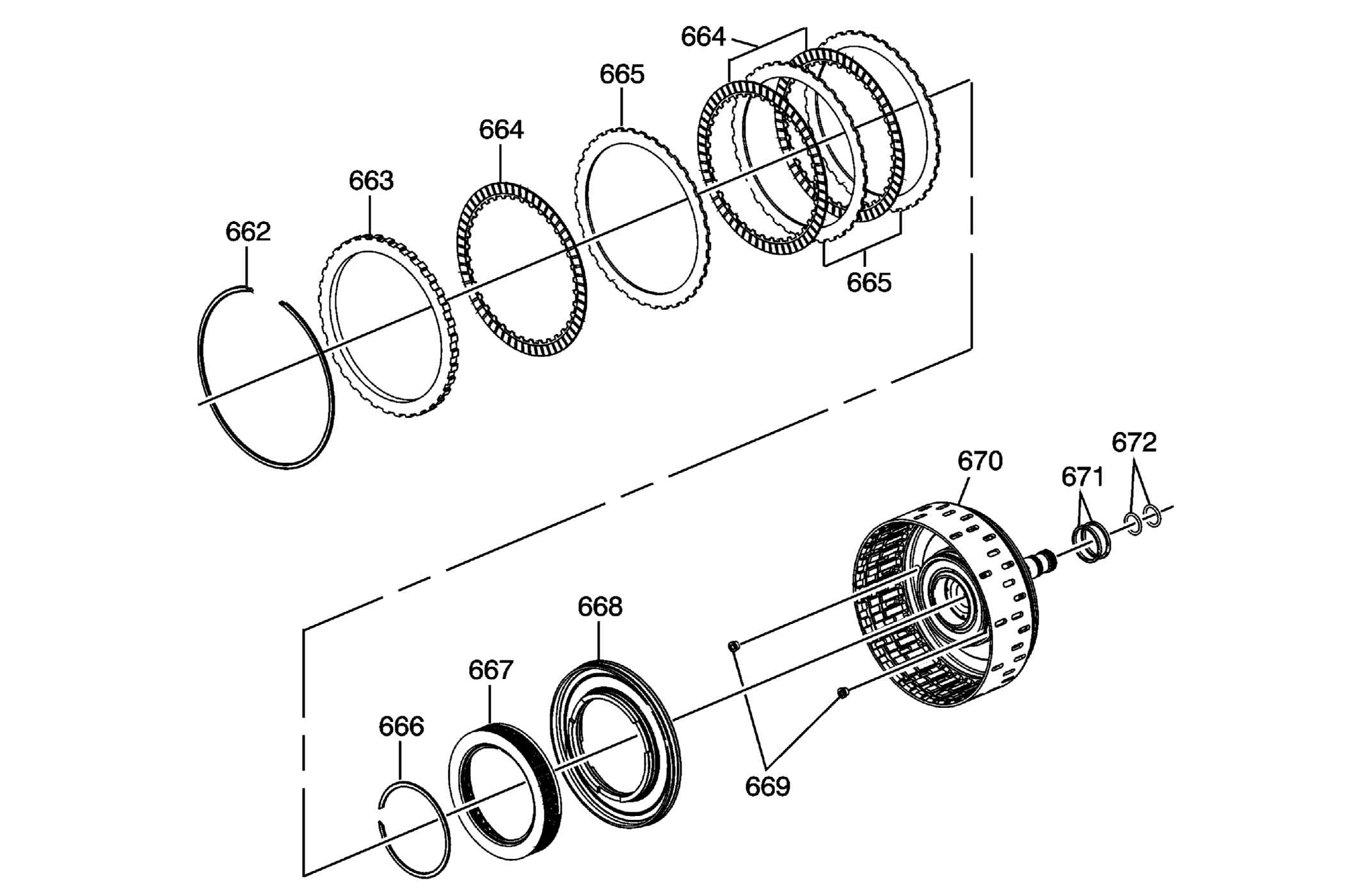

| 662 | 1-3 Reverse Clutch Backing Plate Retaining Ring - Selective |
| 663 | 1-3 Reverse Clutch Backing Plate |
| 664 | 1-3 Reverse Clutch Plate Assembly - Friction |
| 665 | 1-3 Reverse Clutch Plate |
| 666 | 1-3 Reverse Clutch Spring Retaining Ring |
| 667 | 1-3 Reverse Clutch Spring |
| 668 | 1-3 Reverse Clutch Piston |
| 669 | 1-3 Reverse Clutch Housing Ball Valve |
| 670 | 1-3 Reverse Clutch (w/Input Shaft) Housing Assembly |
| 671 | Input Shaft Seals Qty: 2 |
| 672 | Input Shaft Seals Qty: 2 |
| Callout | Component Name |
|---|---|
| 681 | Front Differential Transfer Driven Gear Retaining Ring |
| 682 | Front Differential Transfer Driven Gear |
| 683 | Park Gear |
| 684 | Front Differential Drive Pinion Gear |
| Callout | Component Name |
|---|---|

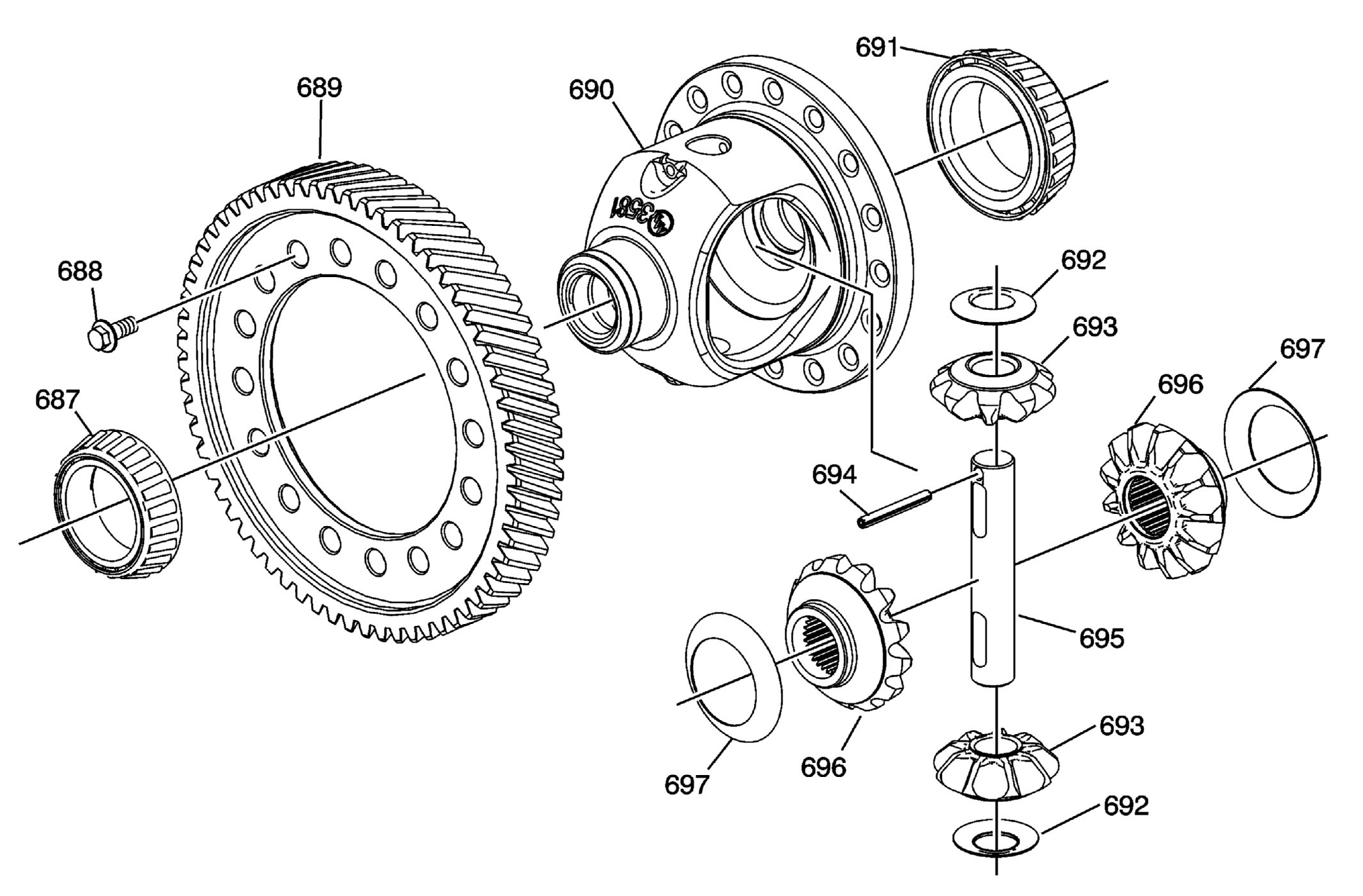

| 687 | Front Differential Carrier Bearing Assembly (LHS) |
| 688 | Front Differential Ring Gear Bolt M10 x 25 Qty: 16 |
| 689 | Front Differential Ring Gear |
| 690 | Front Differential Carrier Assembly |
| 691 | Front Differential Carrier Bearing Assembly (RHS) |
| 692 | Differential Pinion Gear Thrust Washer |
| 693 | Differential Pinion Gear |
| 694 | Differential Carrier Locator Pin |
| 695 | Differential Pinion Gear Shaft |
| 696 | Differential Side Gear |
| 697 | Differential Side Gear Thrust Washer |
| Callout | Component Name |
|---|---|
| 700 | Park Pawl Actuator Bolt M6 x 20 mm Qty: 2 |
| 701 | Wiring Harness Conduit Bracket |
| 702 | Park Pawl Actuator Bracket |
| 703 | Park Pawl Shaft |
| 704 | Park Pawl Spring |
| 705 | Park Pawl |
| 706 | Park Pawl Actuator Guide Pin Qty: 2 |
| 707 | Park Pawl Actuator Guide |
| 708 | A/Trans Case |
| 709 | Manual Shift Shaft |
| 710 | Manual Shift Shaft Seal |
| 711 | Park Pawl Actuator Assembly |
| 712 | Manual Shift Shaft Detent Lever Assembly |
| 713 | Manual Shift Shaft Detent Lever Hub Pin |
| 714 | Manual Shift Shaft Pin |
