Folding Top Control Module Replacement

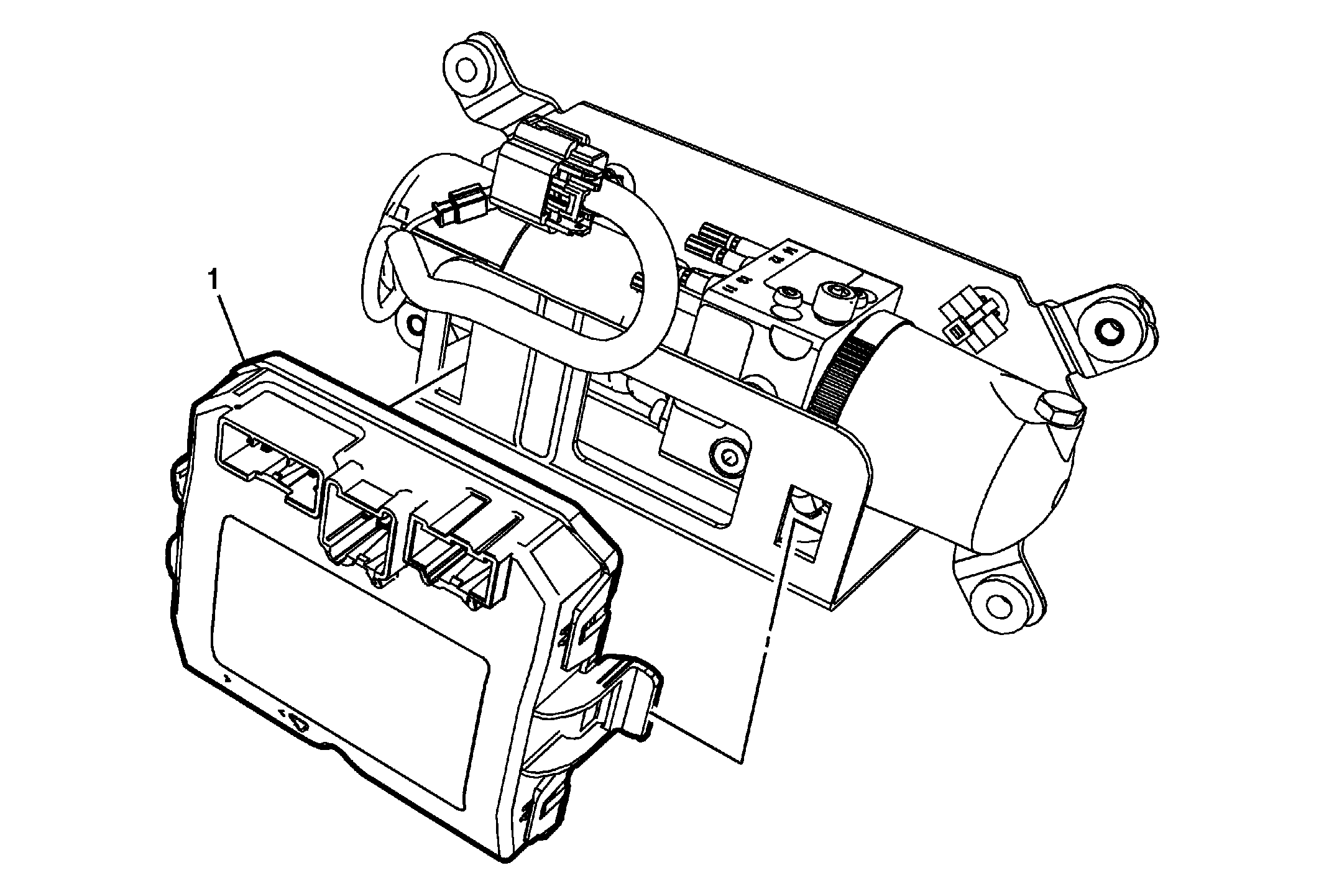

Fig 1: Folding Top Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Reposition the folding top pump with motor without disconnecting the hydraulic lines. Refer to Folding Top Pump with Motor Replacement .
1	Folding Top Control Module Procedure Disconnect the electrical connections. Unsnap module from pump, it is not necessary to disassemble the pump. For programming and set up procedures, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Reposition the folding top pump with motor without disconnecting the hydraulic lines. Refer to Folding Top Pump with Motor Replacement .

Folding Top Control Module

Procedure

Disconnect the electrical connections.
Unsnap module from pump, it is not necessary to disassemble the pump.
For programming and set up procedures, refer to Control Module References .
