Battery Replacement

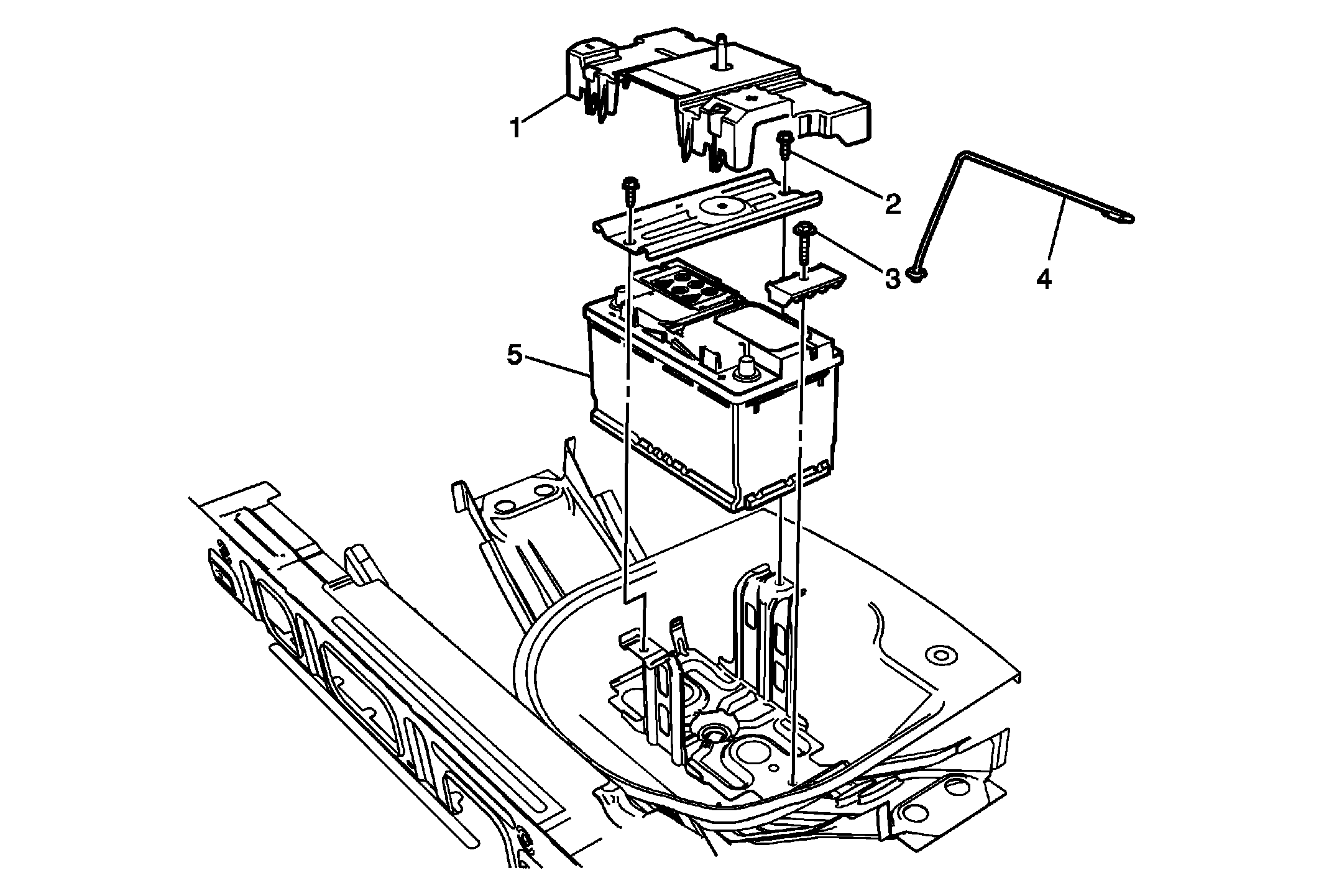

Fig 1: Battery Components

Courtesy of GENERAL MOTORS COMPANY

Battery Replacement

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Disconnect the positive battery cable from the battery. Refer to Battery Positive Cable Replacement
1	Battery Cover
2	Battery Support Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 22 N.m(16 lb ft)
3	Battery Retainer Bolt
4	Battery Vent Tube
5	Battery
