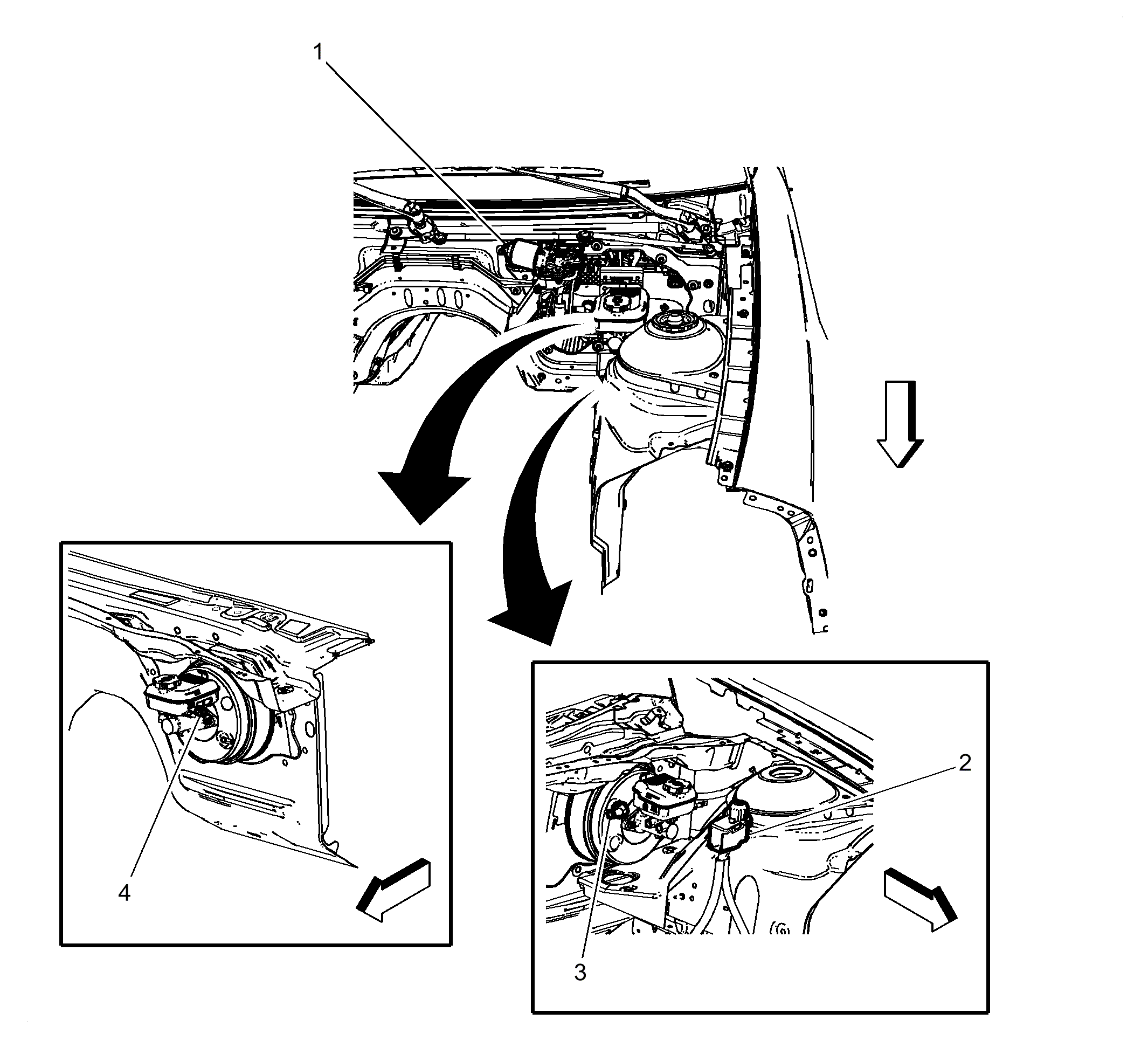

Left Rear of Engine Compartment Components
Left Rear of Engine Compartment Components
| Component Name |
Callout |
| M75 Windshield Wiper Motor |
1 |
| X60B Junction Block- Battery Cable |
2 |
| B19B Brake Booster Vacuum Sensor (L99 and LFX) |
3 |
| B20 Brake Fluid Level Switch |
4 |
Courtesy of GENERAL MOTORS COMPANY
