Front of Passenger Compartment HVAC Module Components

Front of Passenger Compartment HVAC Module Components

Component Name	Callout
M37 Mode Door Actuator	1
K8 Blower Motor Control Module	2
M8 Blower Motor	3
M46 Air Recirculation Door Actuator	4
K33 HVAC Control Module	5
M6 Air Temperature Door Actuator	6

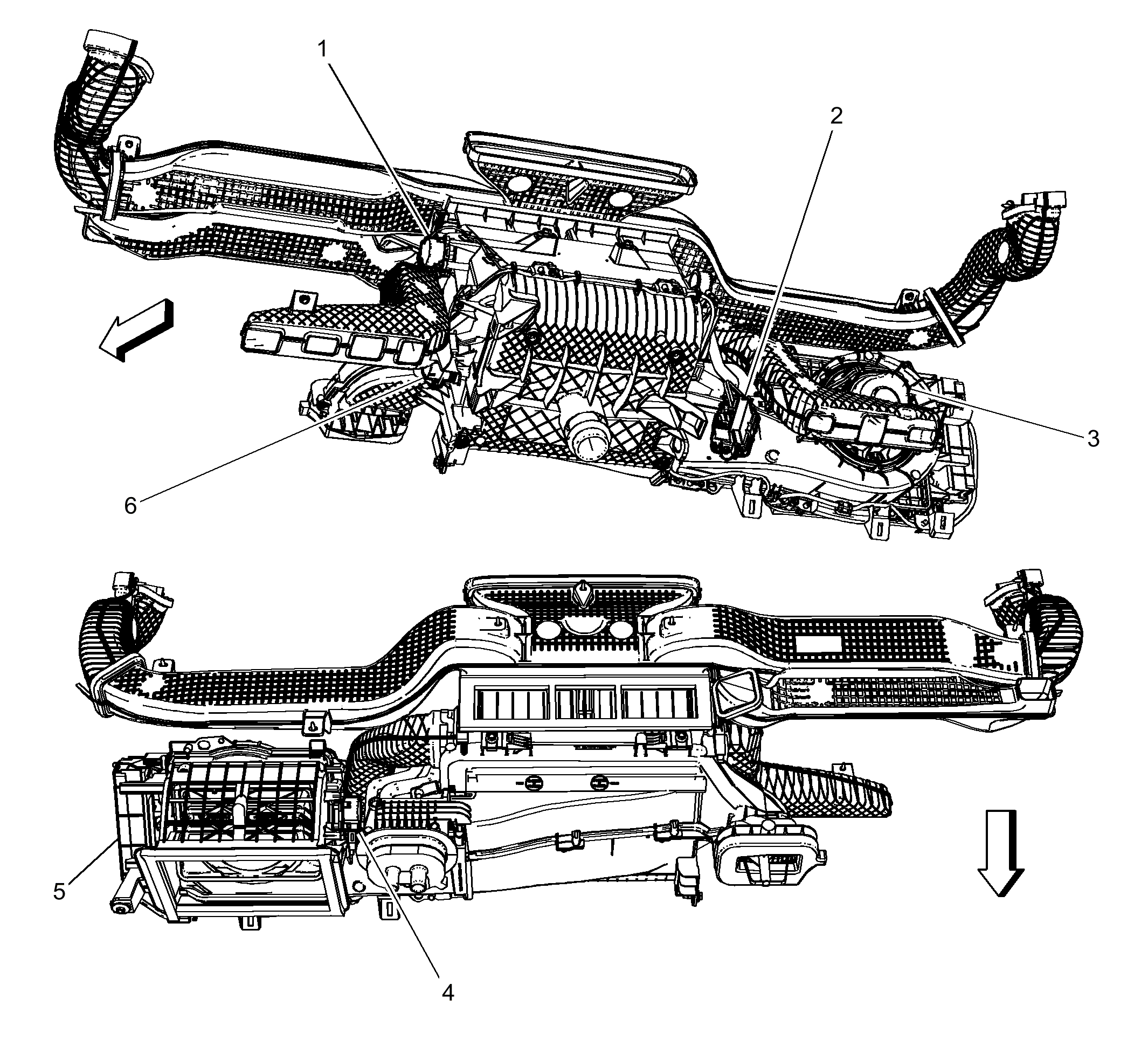

Fig 1: Front of Passenger Compartment HVAC Module Components

Courtesy of GENERAL MOTORS COMPANY
