Left Side of the Instrument Panel Components (UV6)

Left Side of the Instrument Panel Components (UV6)

Component Name Callout
P29 Head-Up Display 1
S27 Head-Up Display Switch 2

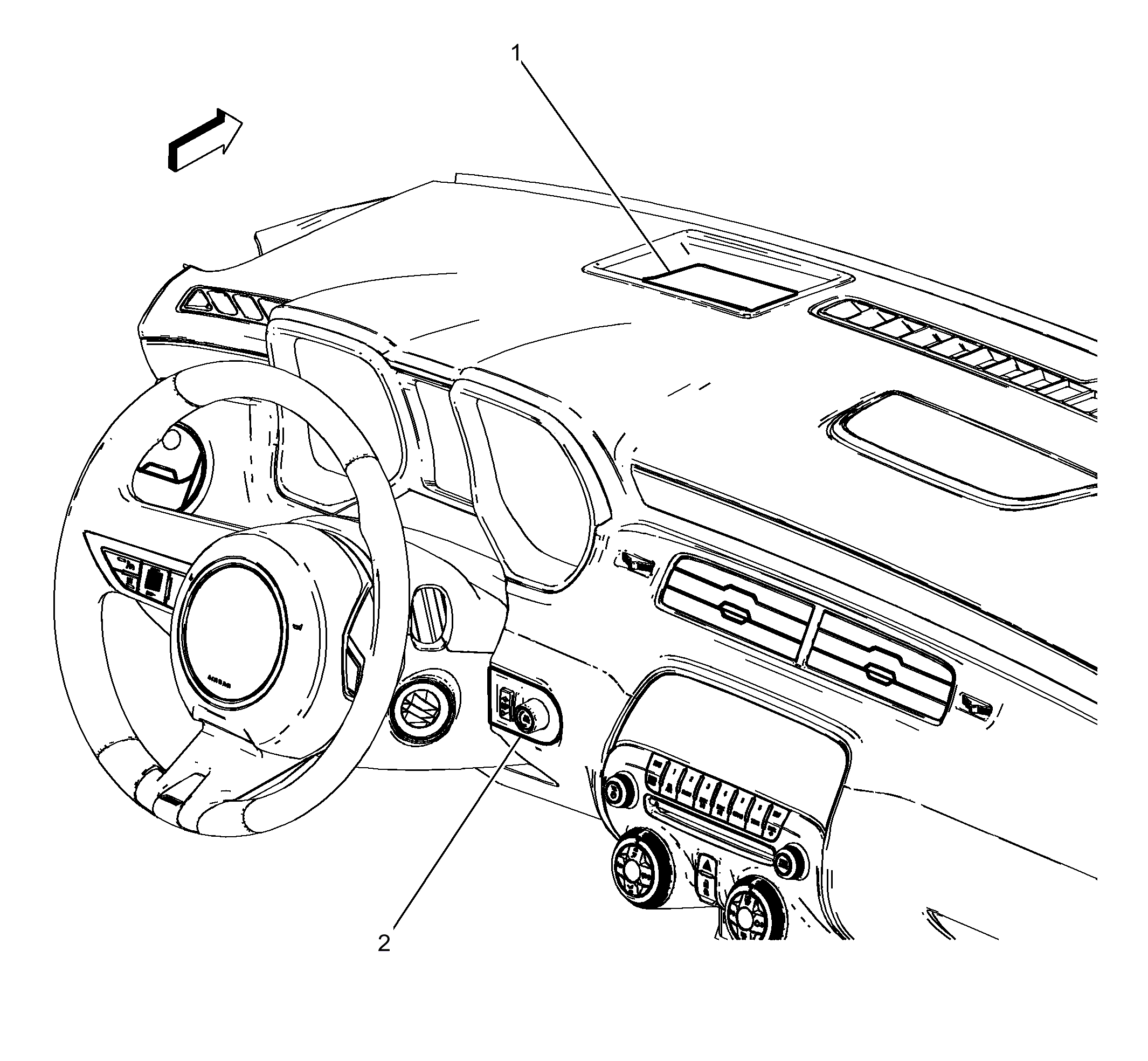

Fig 1: Left Side of the Instrument Panel Components
GM2535679Courtesy of GENERAL MOTORS COMPANY
