Air Cleaner Assembly Replacement

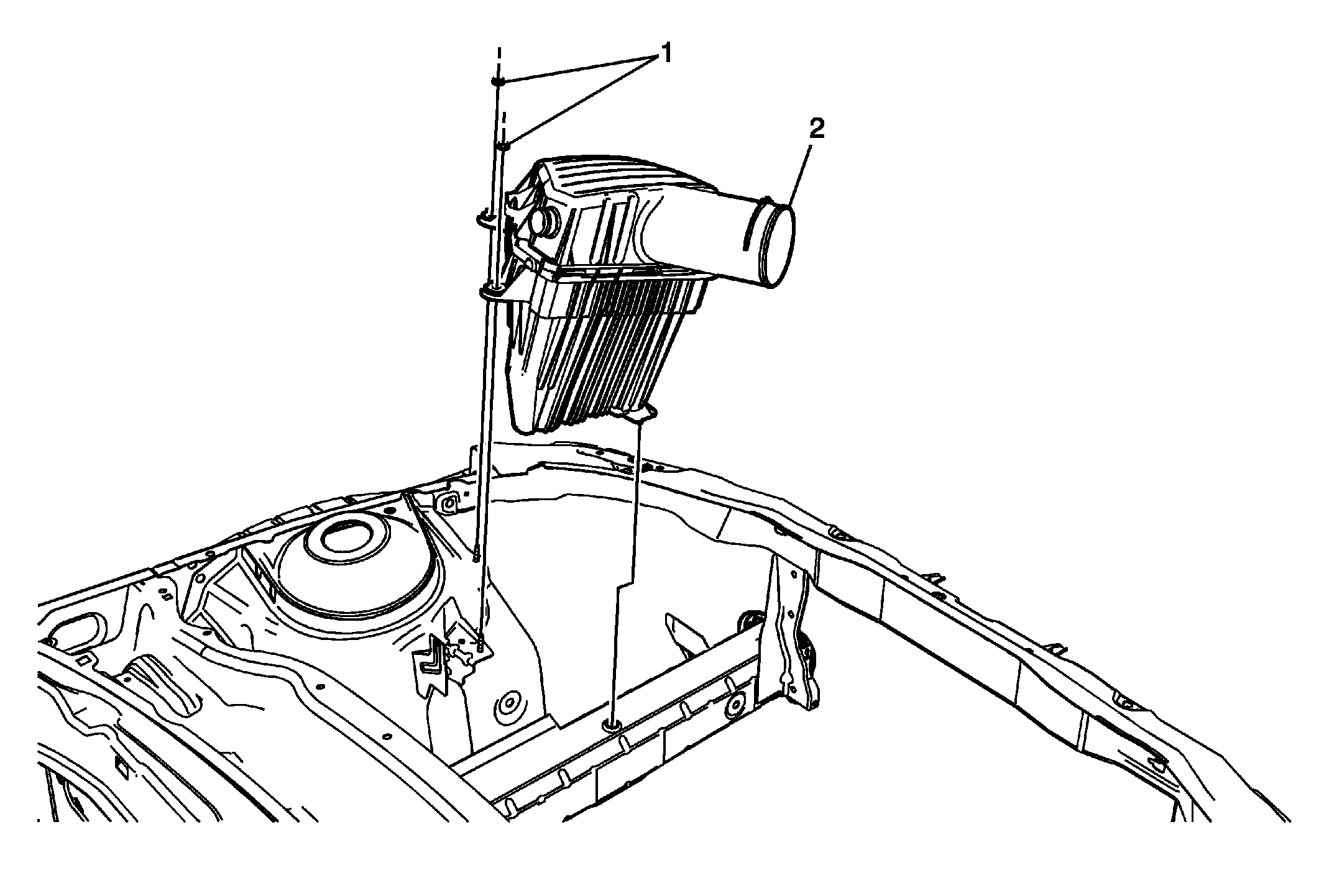

Fig 1: Air Cleaner Assembly And Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the mass airflow sensor. Refer to Mass Airflow Sensor with Intake Air Temperature Sensor Replacement . Disconnect the outlet duct from the air cleaner assembly. Refer to Air Cleaner Outlet Duct Replacement .
1	Air Cleaner Assembly Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Air Cleaner Assembly

Callout

Component Name

Preliminary Procedure

Remove the mass airflow sensor. Refer to Mass Airflow Sensor with Intake Air Temperature Sensor Replacement .
Disconnect the outlet duct from the air cleaner assembly. Refer to Air Cleaner Outlet Duct Replacement .

Air Cleaner Assembly Fastener (Qty: 2)

CAUTION:

Tighten
10 N.m (89 lb in)

Air Cleaner Assembly
