Fuel Pipe Shield Replacement
Fuel Pipe Shield Replacement

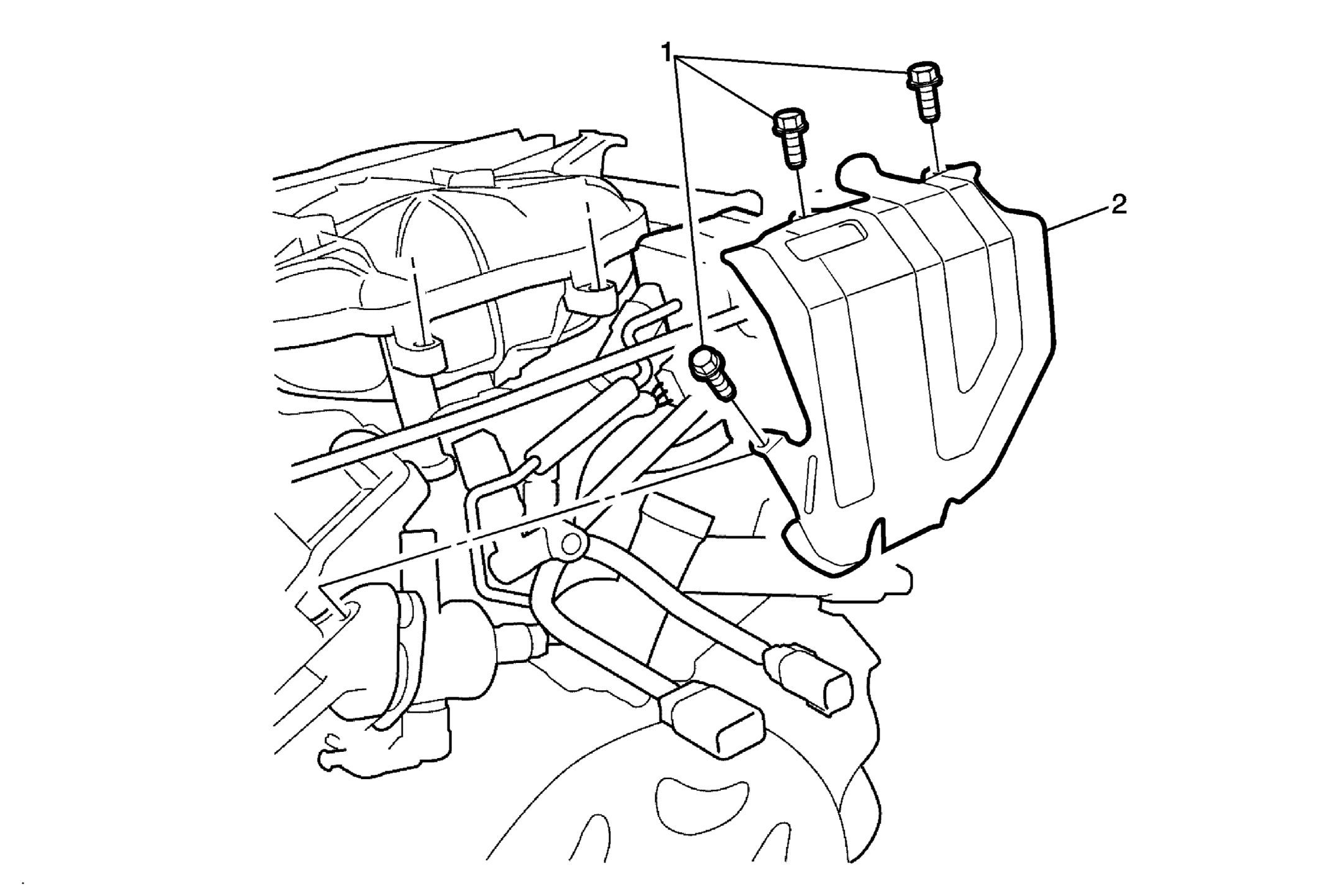

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement . |
|
| 1 | Fuel Pipe Shield Retaining Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Fuel Pipe Shield |
