Power, Ground, and Subsystem References (3 of 3)

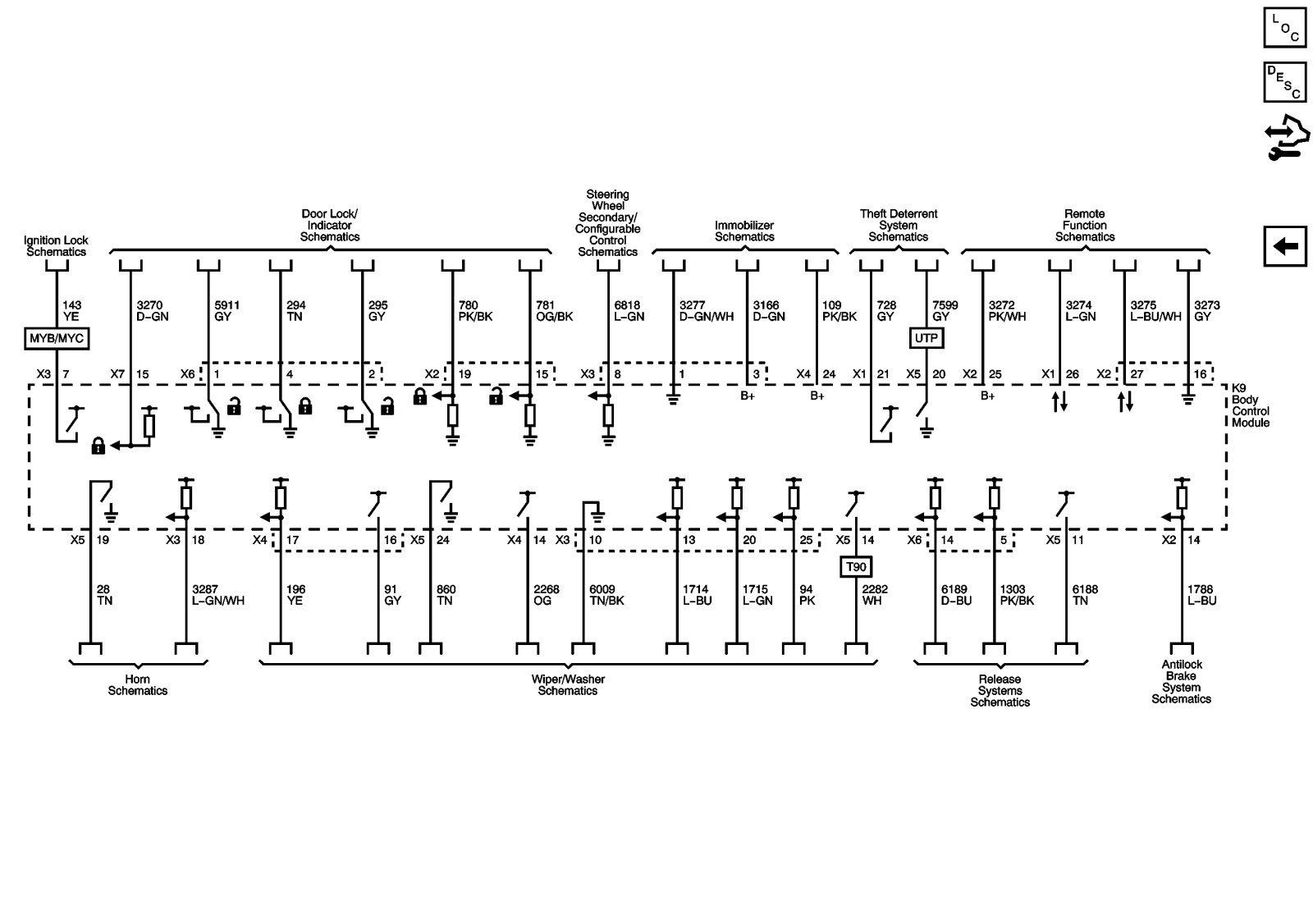

Fig 1: Power, Ground, and Subsystem References Wiring Schematic (3 of 3)
GM2626642Courtesy of GENERAL MOTORS COMPANY
