Power Steering Wiring Schematics: NV9

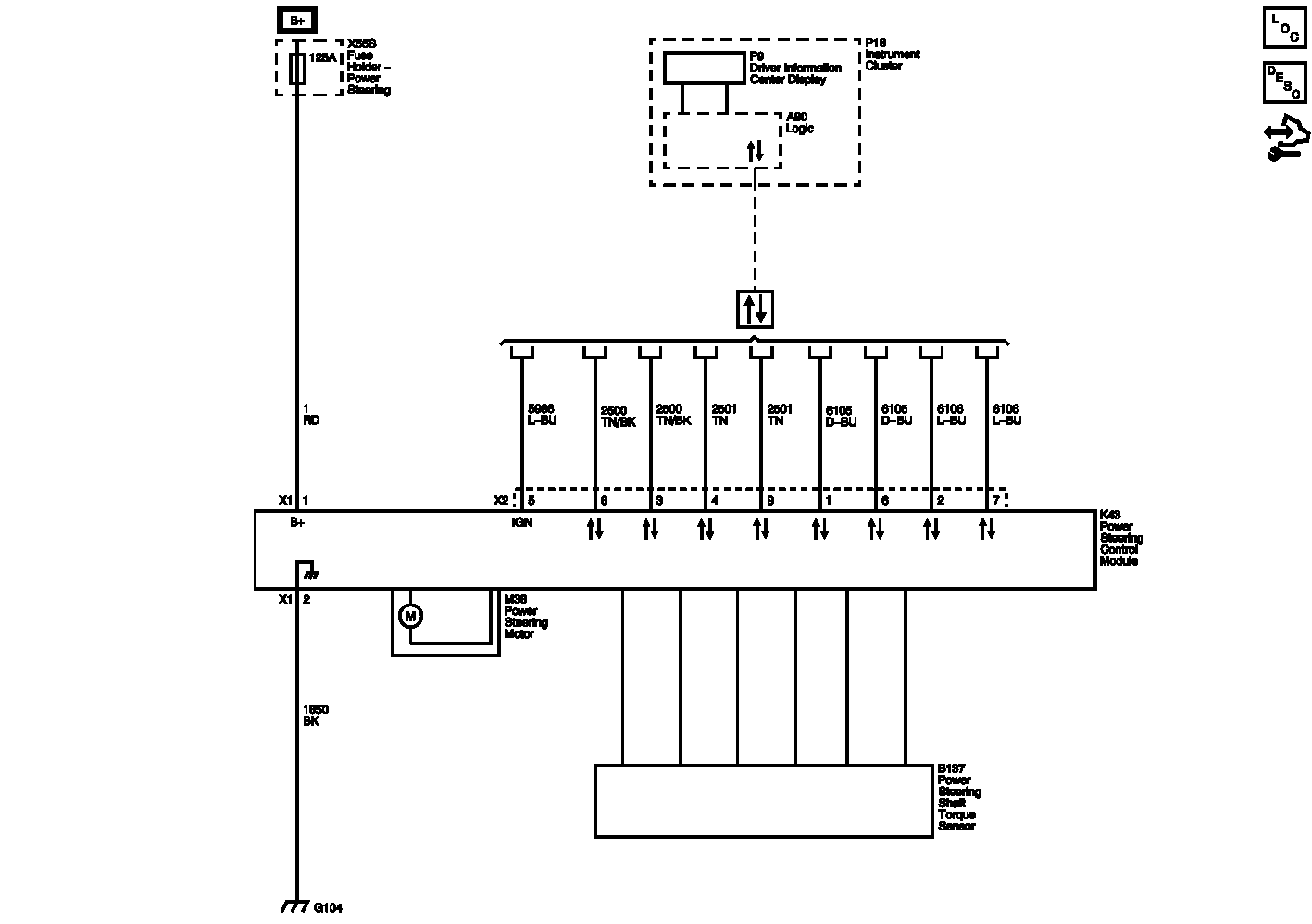

Fig 1: NV9 Wiring Schematic
GM2684523Courtesy of GENERAL MOTORS COMPANY
