Steering Wheel Replacement

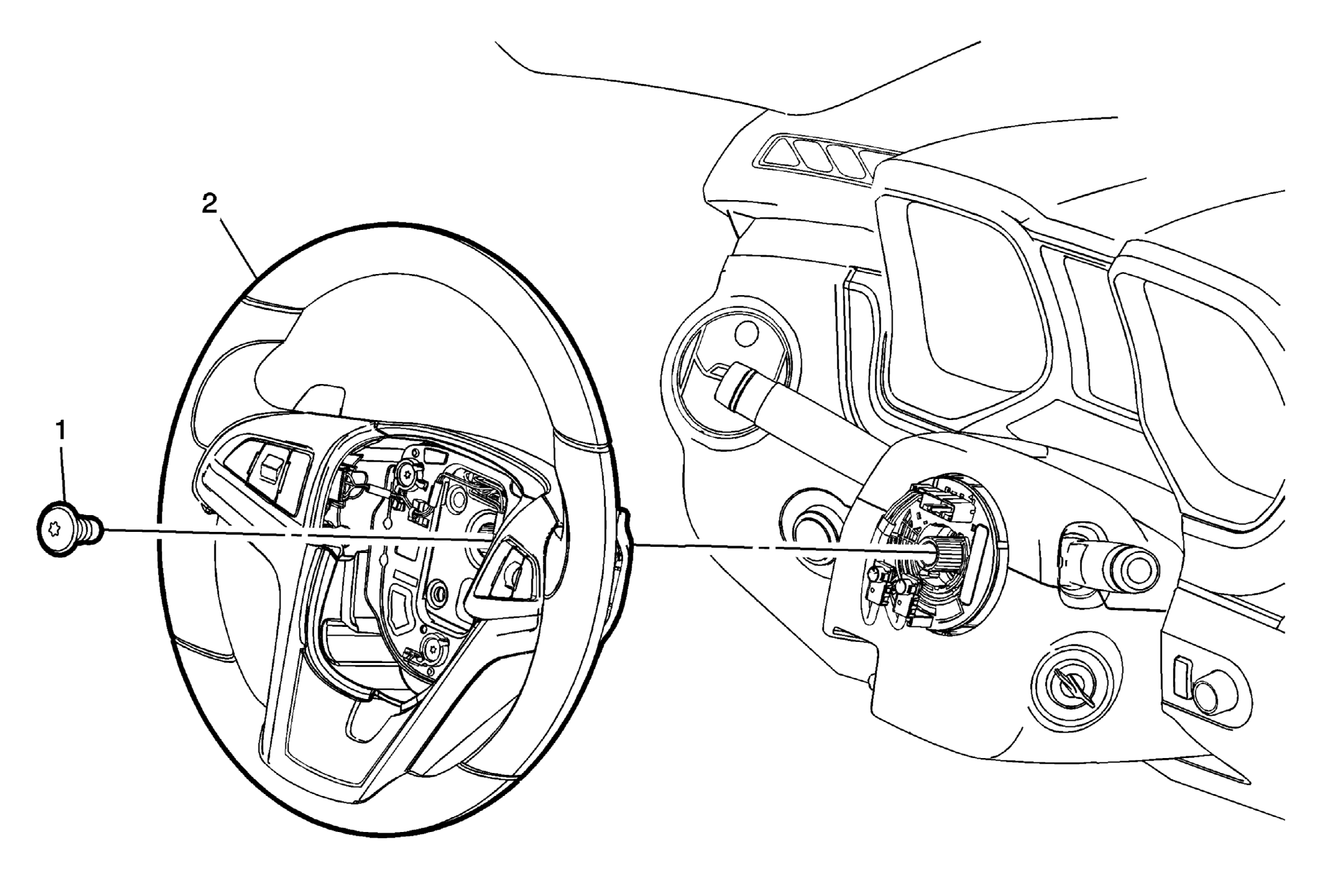

Fig 1: Steering Wheel & Bolt

GM2726961

Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Replacement

Callout

Component Name

Preliminary Procedure

Remove the steering wheel airbag. Refer to Steering Wheel Airbag Replacement .
Use paint in order to place match marks on the steering wheel and on the steering column shaft.

1

Steering Wheel Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
30 N.m (22 lb ft)

2

Steering Wheel

Procedure

Disconnect all electrical connectors as needed.
Remove the steering wheel.
Copy the match marks from the old steering wheel to the new steering wheel.
Transfer any parts as needed.
