Installation Procedure

  1. If you are replacing the steering column, copy the match marks from the old column to the new column.
  2. Ensure the tilt and telescope lever is in the locked position with the steering column tilted to the highest position and telescoped to the maximum rearward position.
  3. Position the steering column in the vehicle.

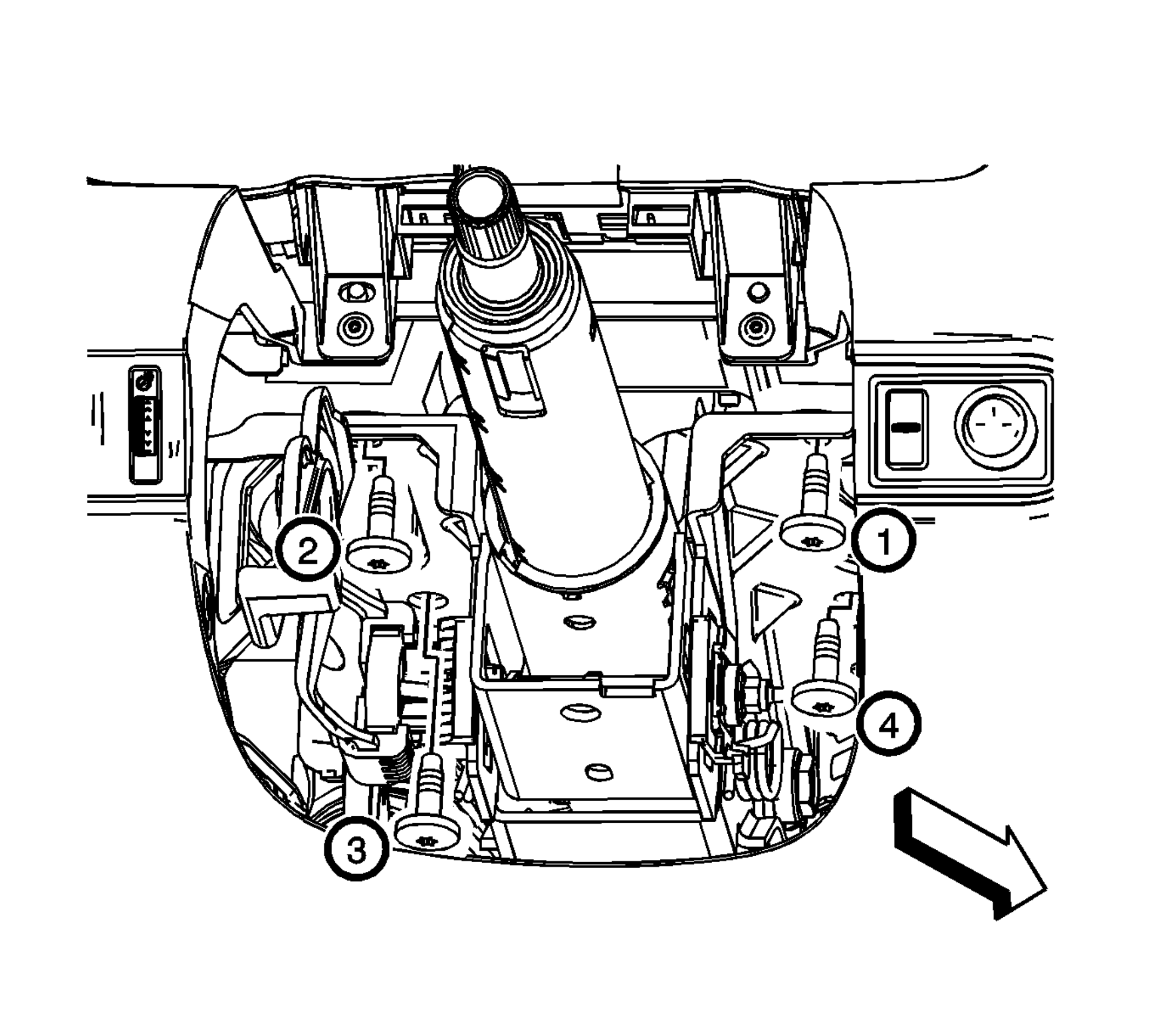

    4. Fig 1: Steering Column Bolt Tightening Sequence
    GM2201538Courtesy of GENERAL MOTORS COMPANY
  4. Support the steering column and install, but DO NOT tighten, the 4 steering column bolts (1, 2, 3, 4).
    5. CAUTION:

    Refer to Fastener Caution .

    NOTE:

    Tighten the bolts in sequence.

  5. Tighten the steering column bolts in sequence to 22 N.m (16 lb ft).

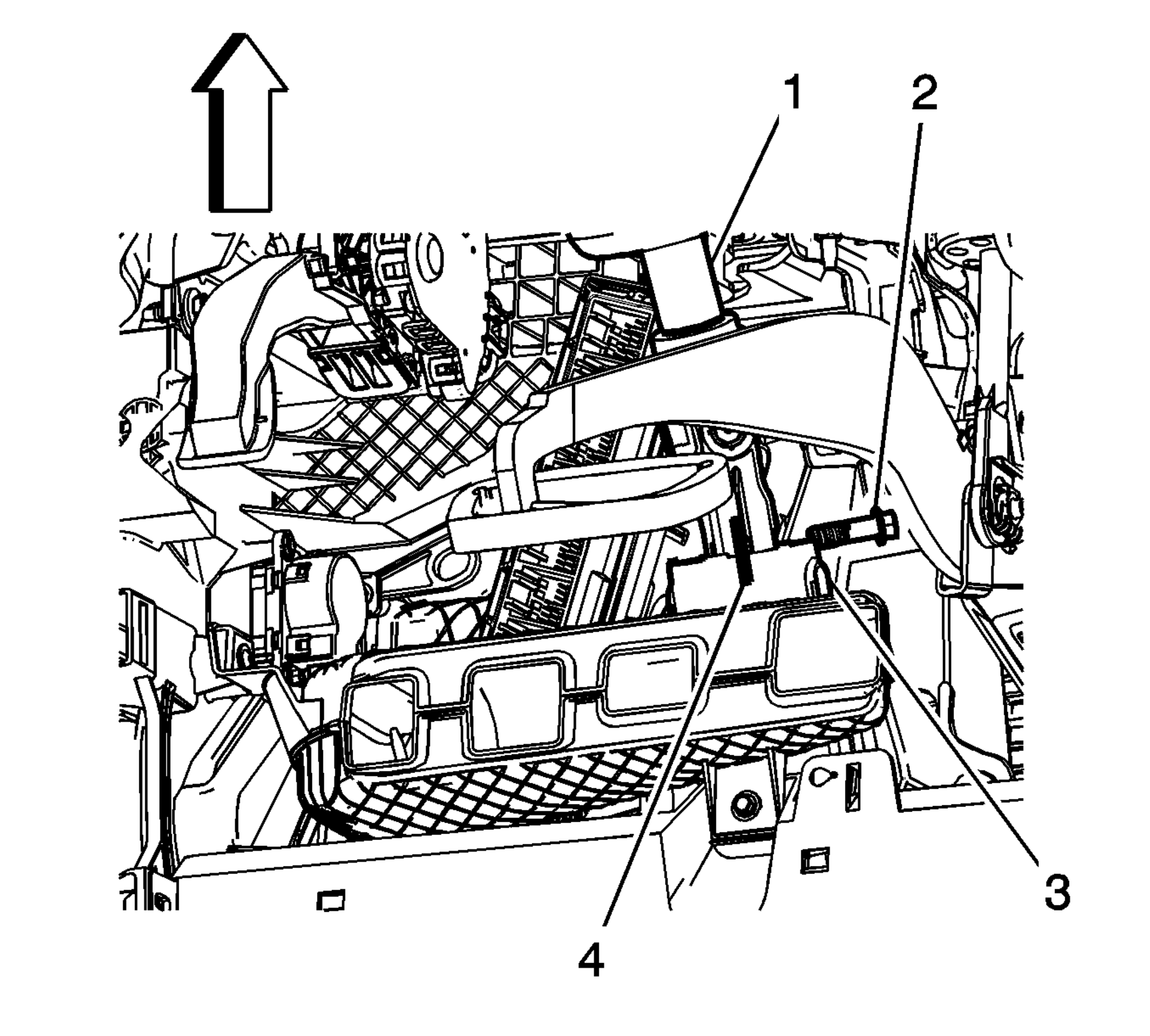

    6. Fig 2: Steering Column Shaft, Intermediate Steering Shaft, Bolt And Match Marks
    GM2201328Courtesy of GENERAL MOTORS COMPANY
  6. Working under the instrument panel, align the match marks (4) and connect the intermediate steering shaft (1) to the steering column shaft (3).
  7. Ensure the intermediate steering shaft upper seal is seated correctly.
  8. Apply thread locking adhesive to the upper intermediate steering shaft bolt (2). Refer to Adhesives, Fluids, Lubricants, and Sealers .
  9. Install the upper intermediate steering shaft bolt and tighten to 36 N.m (26.5 lb ft).
  10. Connect all electrical connectors as necessary.
  11. Install the steering column shroud. Refer to Steering Column Shroud Replacement .
  12. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
