Accelerator Pedal Position Sensor Replacement

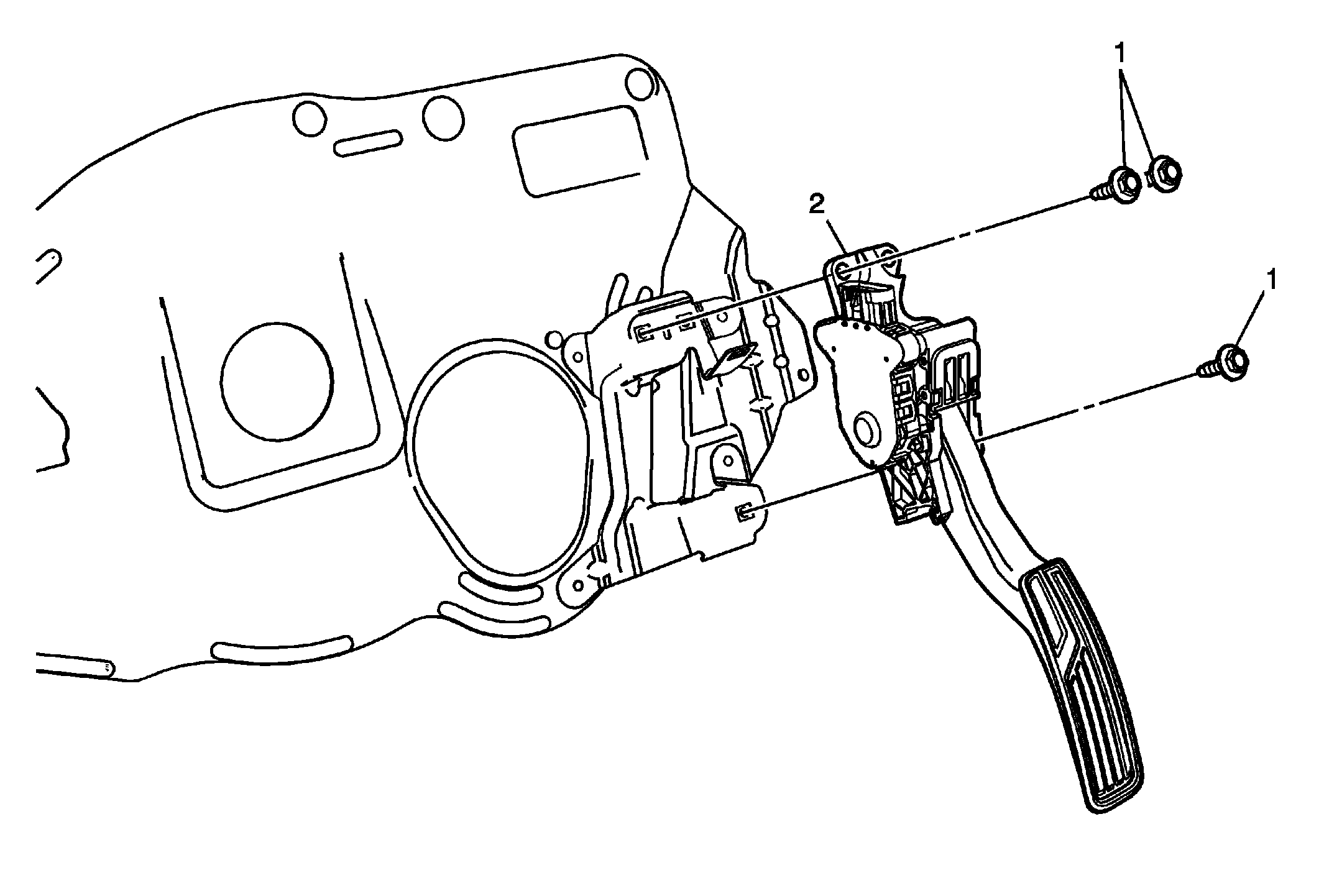

Fig 1: Accelerator Pedal Position Sensor & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Accelerator Pedal Position Sensor Replacement

Callout	Component Name
1	Accelerator Pedal Position Sensor Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Accelerator Pedal Position Sensor Procedure  Disconnect the electrical connector.
