Camaro ZL1, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communications System
›
Wiring Schematics
›
Data Communication Wiring Schematics
›
High Speed GMLAN - Bus 2
High Speed GMLAN - Bus 2

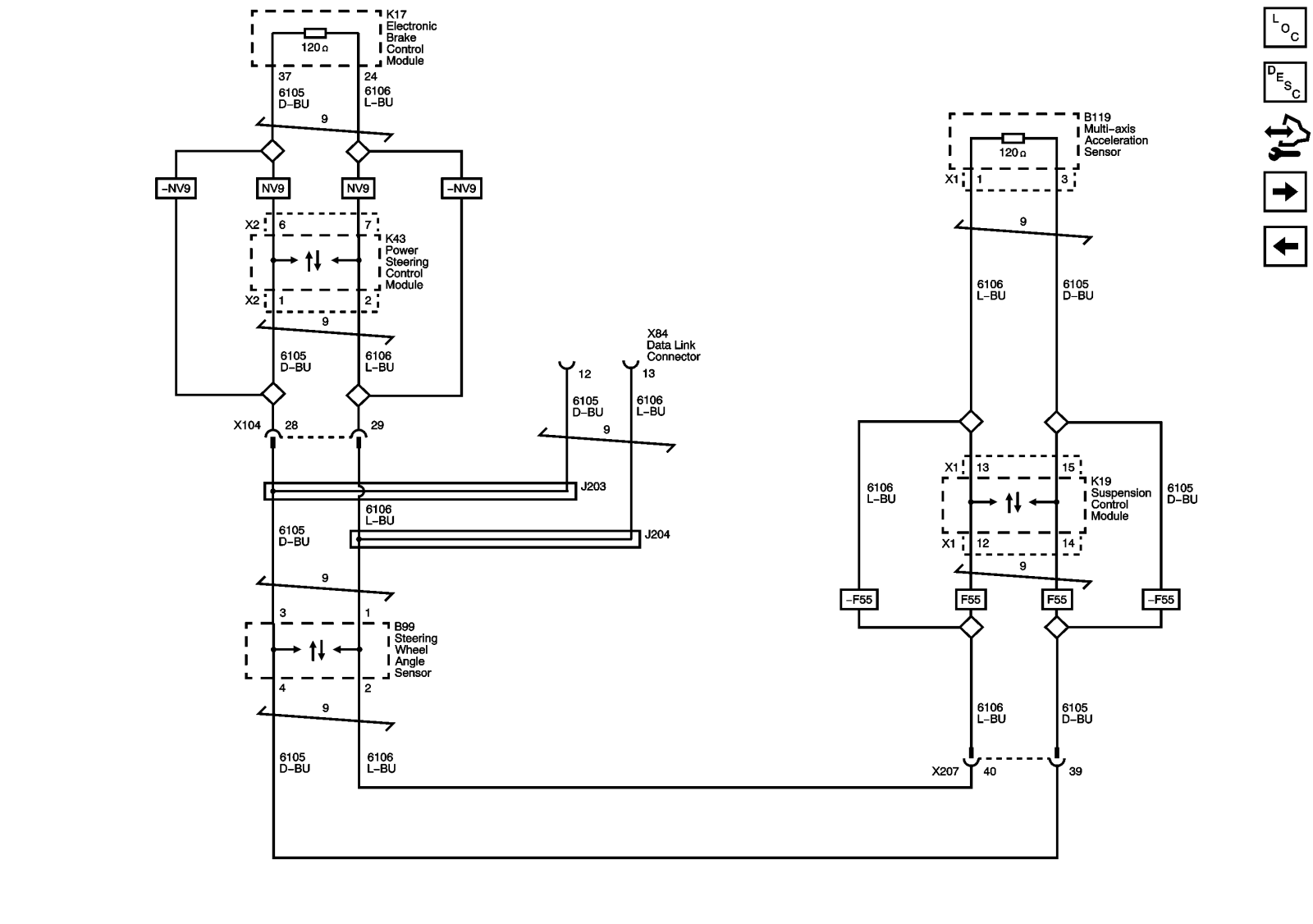

Fig 1: High Speed GMLAN - Bus 2 Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
