Supercharger Air Outlet Pressure Sensor Replacement

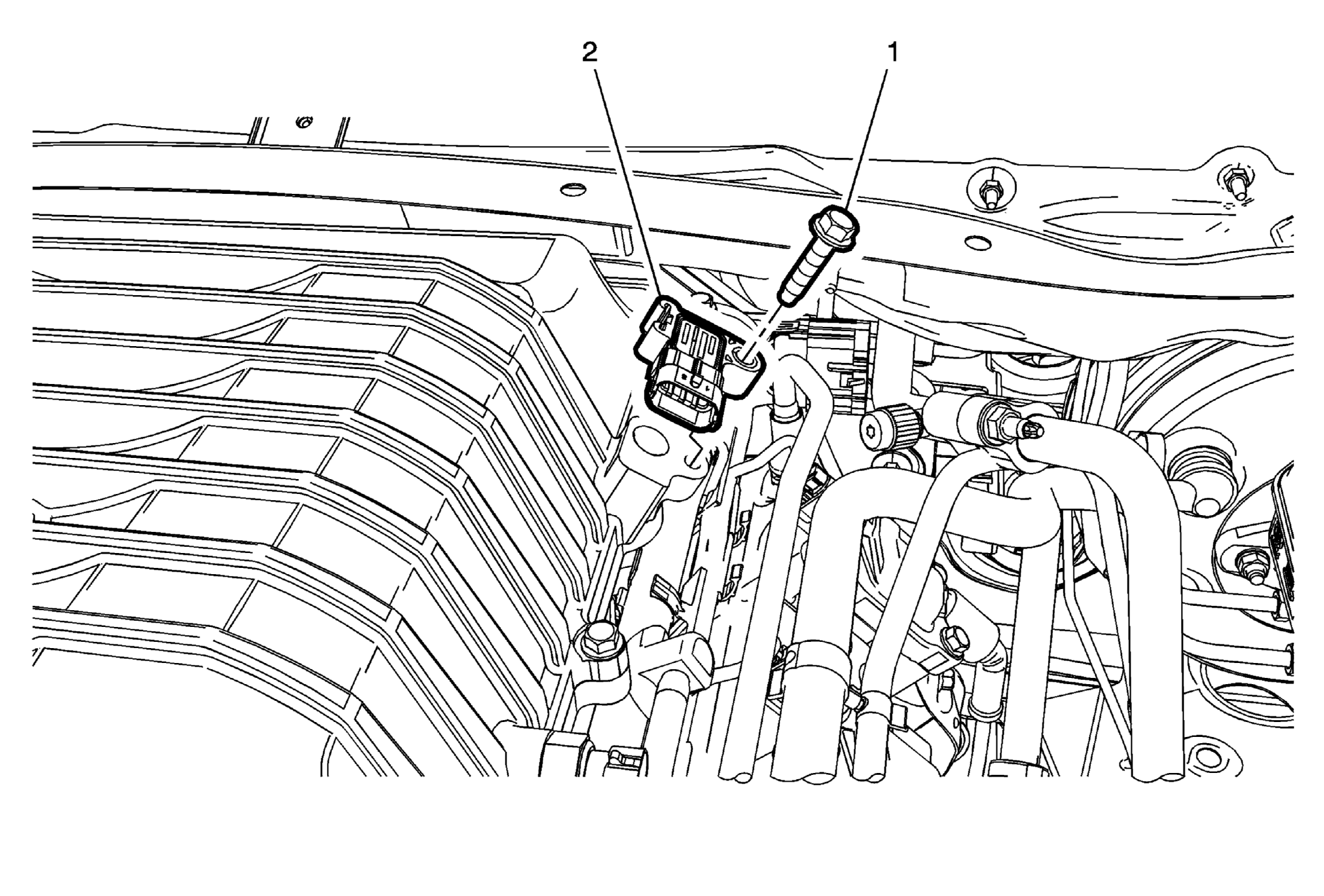

Fig 1: Supercharger Air Outlet Pressure Sensor & Fastener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement - Front .
1	Super Charger Air Outlet Pressure Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Super Charger Air Outlet Pressure Sensor Procedure Disconnect the electrical wiring harness connector from the super charger air outlet pressure sensor. Install the NEW O-ring provided with the sensor.

Callout

Component Name

Preliminary Procedure
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement - Front .

Super Charger Air Outlet Pressure Sensor Fastener

CAUTION:

Tighten
10 N.m (89 lb in)

Super Charger Air Outlet Pressure Sensor

Procedure

Disconnect the electrical wiring harness connector from the super charger air outlet pressure sensor.
Install the NEW O-ring provided with the sensor.
