Module Power, Ground, Serial Data, and Traction Control Wiring Schematics

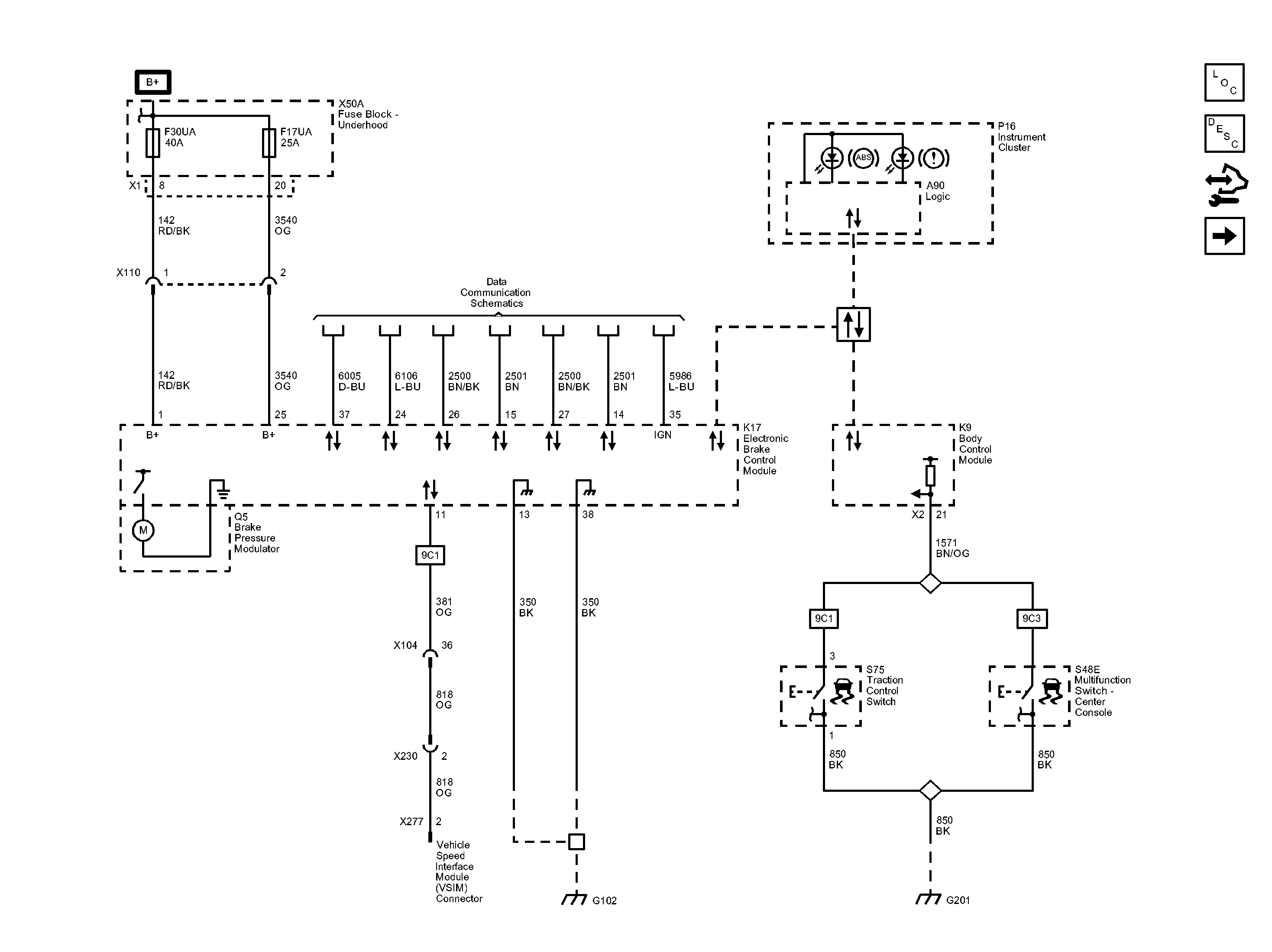

Fig 1: Module Power, Ground, Serial Data, and Traction Control Wiring Schematics
GM2662631Courtesy of GENERAL MOTORS COMPANY
