Installation Procedure

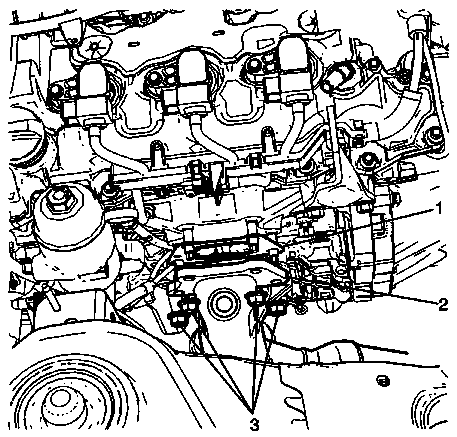

    Fig 1: Exhaust Gasket And Catalytic Convertor
    GM2291215Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not fully tighten the left hand catalytic converter to cylinder head retaining fasteners (3) at this stage.

  1. Ensure that the gasket mating surfaces on the cylinder head and catalytic convertor are flat and free from defects or old gasket material.

    Install a new exhaust gasket (1) to the studs on the cylinder head.

    Install the right hand catalytic convertor (2) to the cylinder head.

    Install the retaining fasteners (3) but do not fully tighten at this stage.

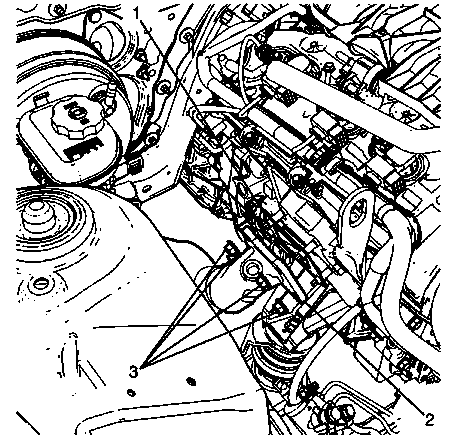

  2. Fig 2: New Exhaust Gasket And Catalytic Convertor
    GM2291224Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not fully tighten the left hand catalytic converter to cylinder head retaining fasteners (3) at this stage.

  3. Ensure that the gasket mating surfaces on the cylinder head and catalytic convertor are flat and free from defects or old gasket material.

    Install a new exhaust gasket (1) to the studs on the cylinder head.

    Install the right hand catalytic convertor (2) to the cylinder head.

    Install the retaining fasteners (3) but do not fully tighten at this stage.

  4. WARNING:

    To avoid any vehicle damage, serious personal injury or death when major components are removed from the vehicle and the vehicle is supported by a hoist, support the vehicle with jack stands at the opposite end from which the components are being removed and strap the vehicle to the hoist.

  5. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

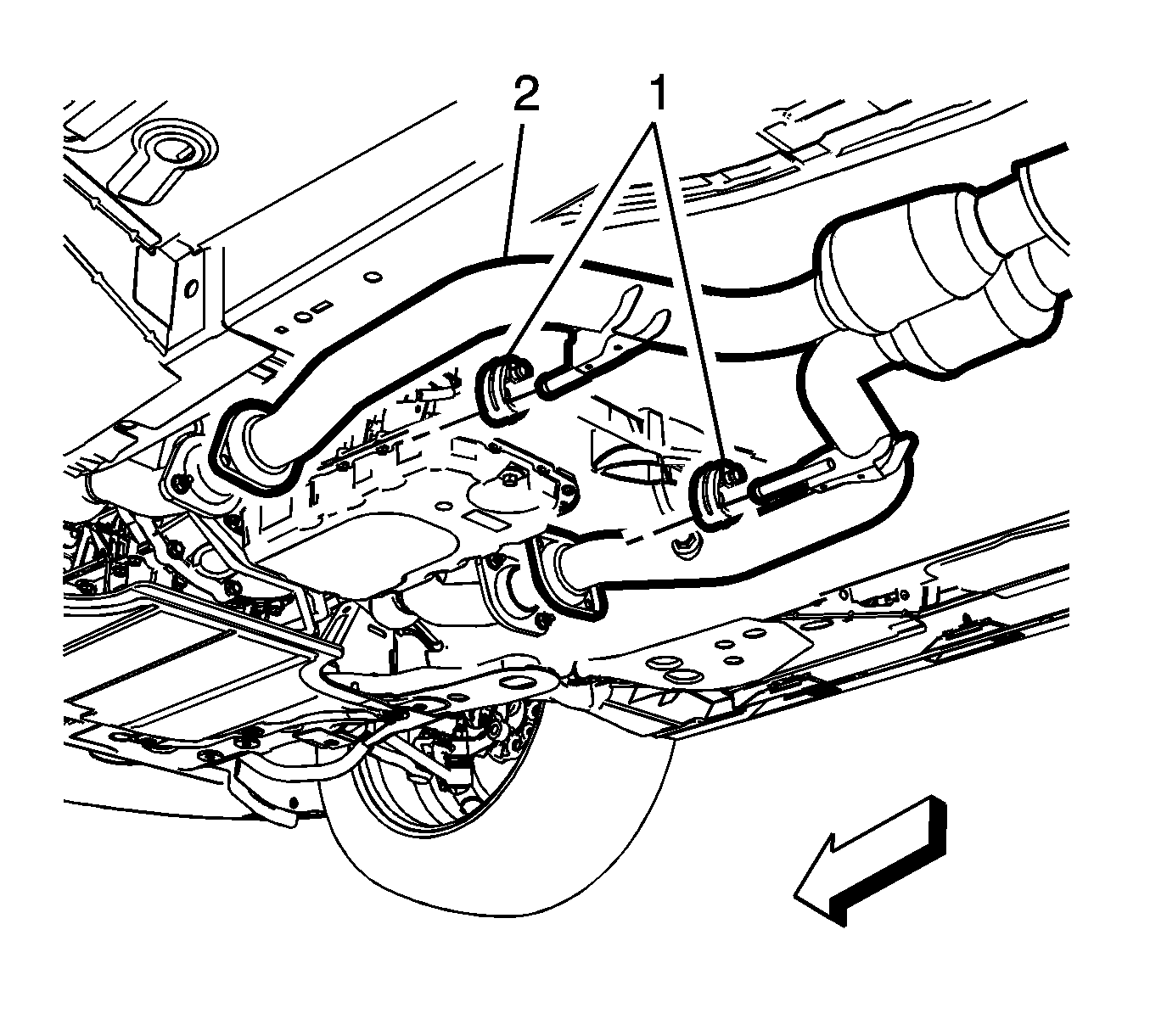

  6. Fig 3: Intermediate Exhaust Assembly And Front Exhaust Isolators
    GM2660734Courtesy of GENERAL MOTORS COMPANY
  7. Install the exhaust crossover pipe (2) into the exhaust isolators (1).

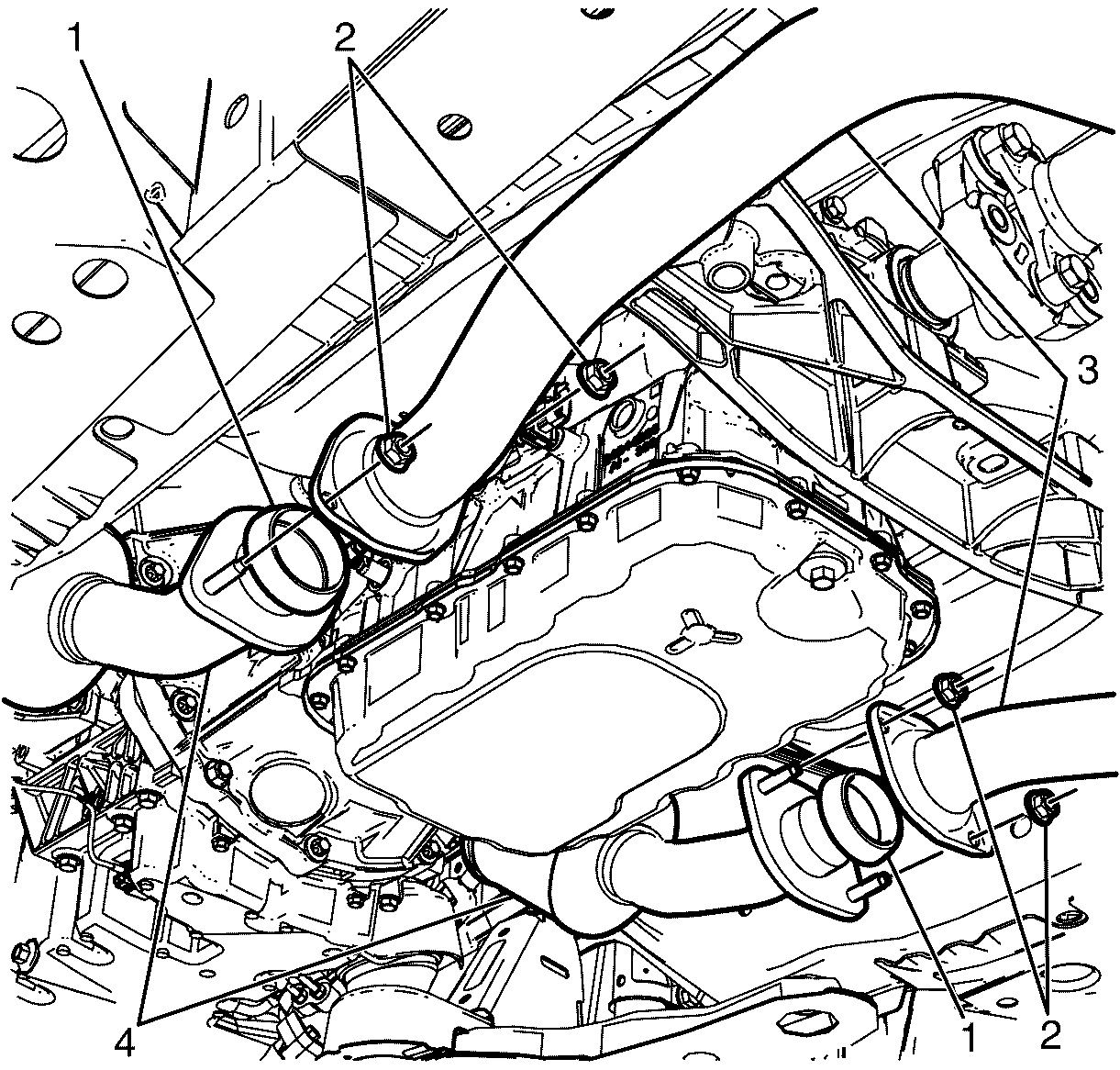

  8. Fig 4: Exhaust Flange Sealing Rings
    GM2293425Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The catalytic converter to exhaust manifold retaining fasteners (2) are single use parts. They must be replaced with new parts on installation.

  9. Install NEW exhaust flange sealing rings (1) to both the left hand and right hand catalytic convertor exhaust flanges.
  10. With the aid of an assistant, install the cross-over pipe assembly (3) to the vehicle. Support the cross-over pipe assembly with a suitable jack.
  11. Install the NEW exhaust crossover pipe assembly to catalytic convertor retaining fasteners (2). Do not fully tighten at this stage.
  12. CAUTION:

    Refer to Fastener Caution .

    Fig 5: Identifying Center Insulator Hanger Bracket To Differential Retaining Bolts
    GM1947047Courtesy of GENERAL MOTORS COMPANY
  13. Install the center insulator hanger bracket and tighten the fastener (1) to 45 N.m (33 lb ft).

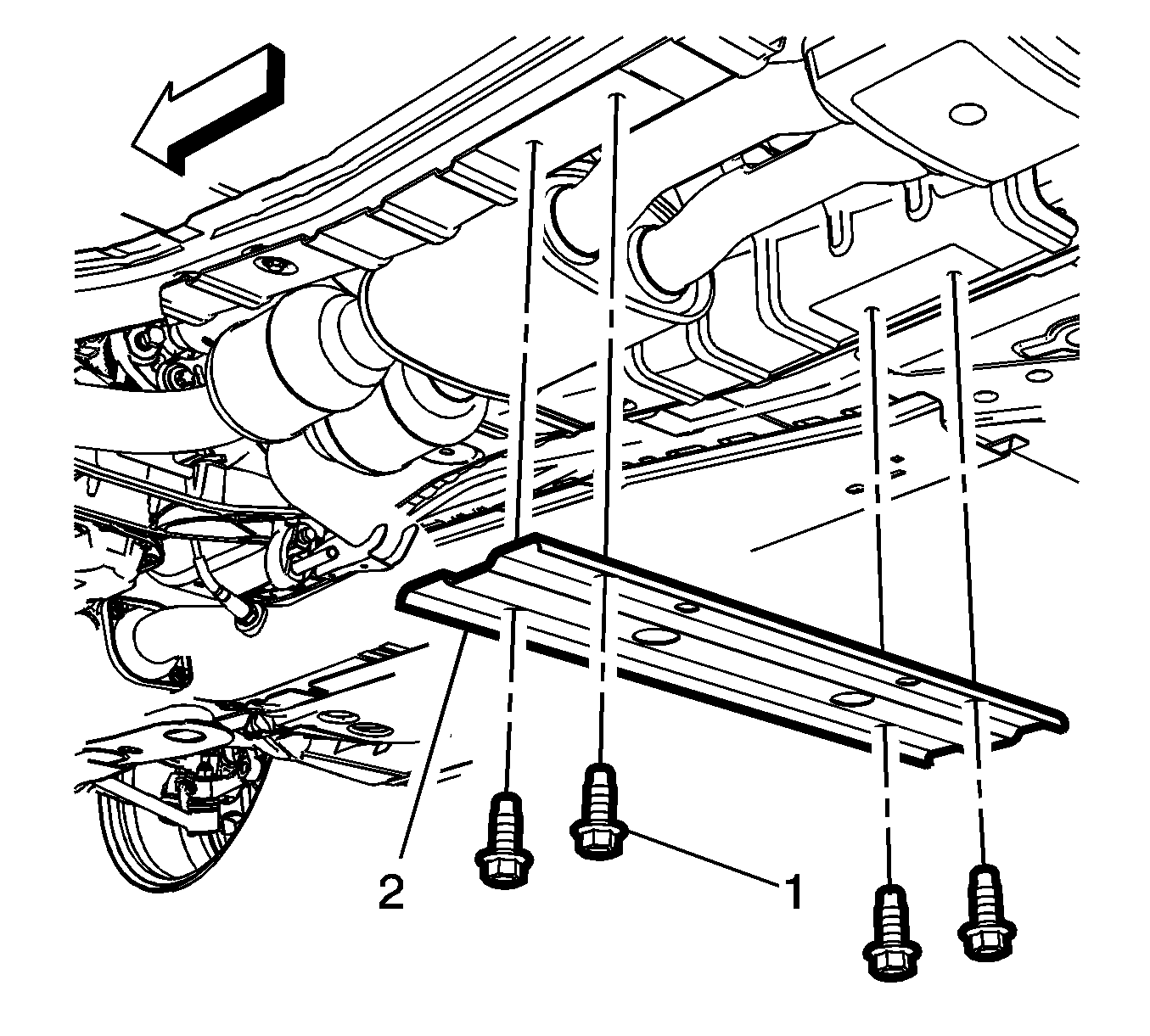

  14. Fig 6: Underbody Brace Fasteners
    GM2660737Courtesy of GENERAL MOTORS COMPANY
  15. Install the underbody brace (2) and tighten the fasteners (1) to 58 N.m (43 lb ft).
  16. Fig 7: View Of Right Rear Muffler
    GM1949730Courtesy of GENERAL MOTORS COMPANY
  17. With the aid of an assistant, install the right rear muffler (1) to the vehicle.
  18. Fig 8: Identifying Right Rear Muffler To Intermediate Exhaust Assembly Retaining Bolts
    GM1949729Courtesy of GENERAL MOTORS COMPANY
  19. Connect the right rear muffler (1) to the exhaust crossover pipe assembly (3) and tighten the fasteners (2) to 45 N.m (33 lb ft).
  20. Fig 9: View Of Left Rear Muffler
    GM1949728Courtesy of GENERAL MOTORS COMPANY
  21. With the aid of an assistant, install the left rear muffler (1) to the vehicle.
  22. Fig 10: Identifying Intermediate Exhaust Assembly To Rear Muffler Retaining Bolts
    GM1947045Courtesy of GENERAL MOTORS COMPANY
  23. Connect the left rear muffler (1) to the exhaust crossover pipe assembly (2) and tighten the fasteners (3) to 45 N.m (33 lb ft).

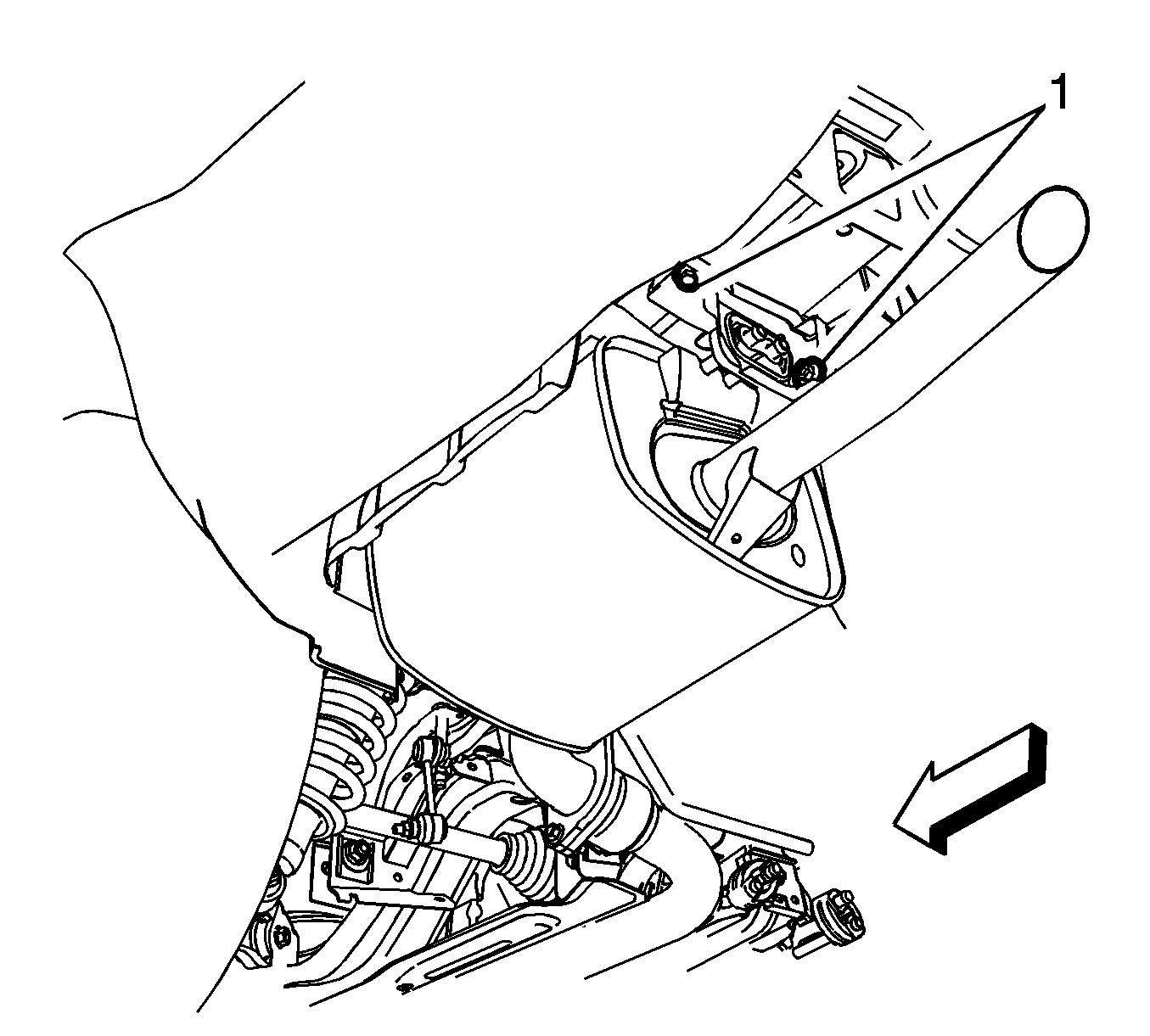

  24. Fig 11: Left Rear Hanger Bracket Fasteners
    GM2660985Courtesy of GENERAL MOTORS COMPANY
  25. Install the left rear hanger bracket fasteners (1) and tighten to 26 N.m (19 lb ft).

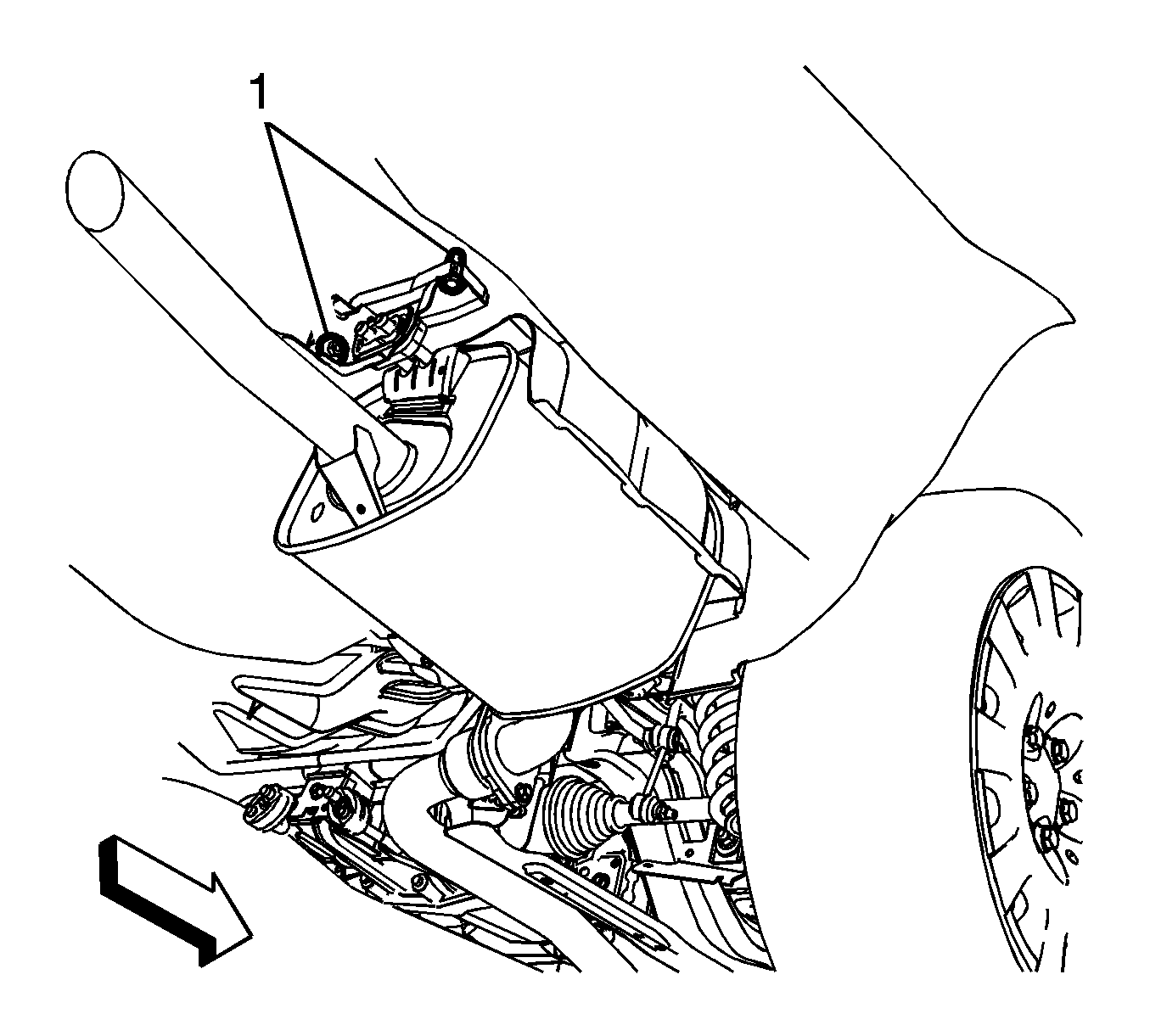

  26. Fig 12: Right Rear Hanger Bracket Fasteners
    GM2660984Courtesy of GENERAL MOTORS COMPANY
  27. Install the right rear hanger bracket fasteners (1) and tighten to 26 N.m (19 lb ft).
  28. Lower the vehicle.

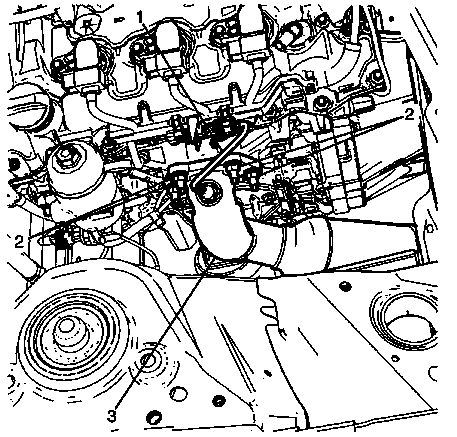

  29. Fig 13: Cylinder Head Retaining Fasteners
    GM2291209Courtesy of GENERAL MOTORS COMPANY
  30. Install the left hand catalytic convertor to cylinder head retaining fasteners (2) and tighten to 45 N.m (33 lb ft).

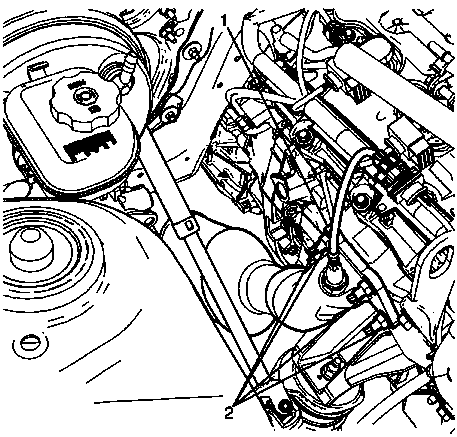

  31. Fig 14: Cylinder Head Retaining Fasteners
    GM2291217Courtesy of GENERAL MOTORS COMPANY
  32. Install the left hand catalytic convertor to cylinder head retaining fasteners (2) and tighten to 45 N.m (33 lb ft).
  33. WARNING:

    To avoid any vehicle damage, serious personal injury or death when major components are removed from the vehicle and the vehicle is supported by a hoist, support the vehicle with jack stands at the opposite end from which the components are being removed and strap the vehicle to the hoist.

  34. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

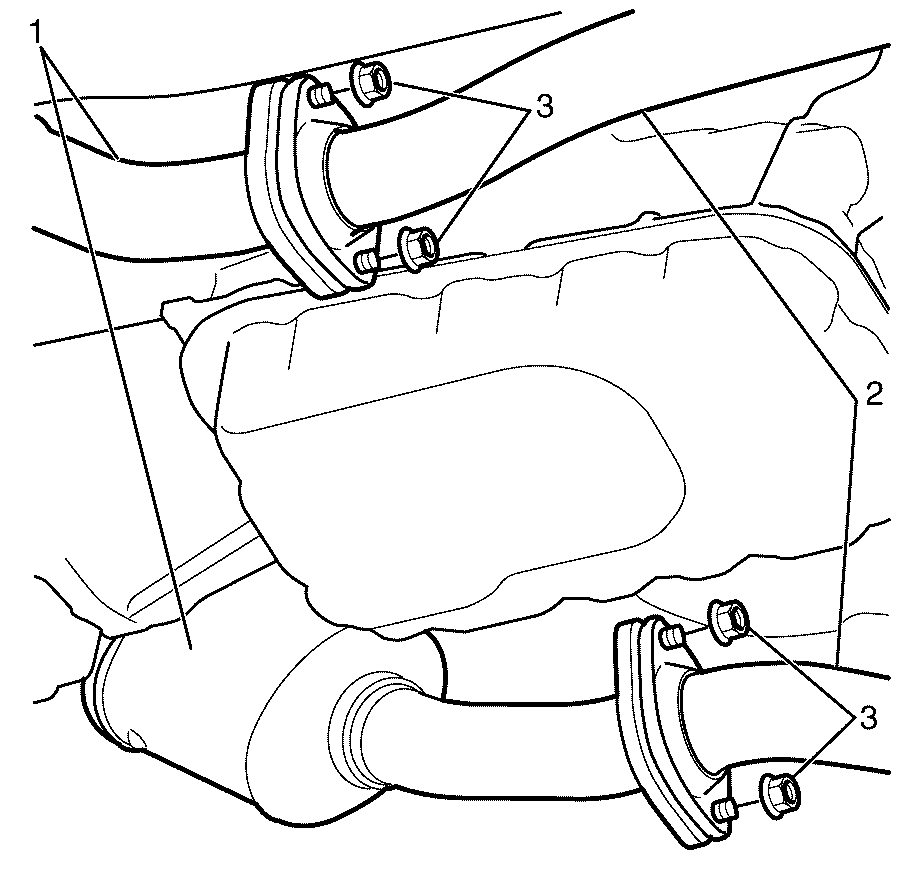

  35. Fig 15: Exhaust Crossover Pipe Assembly To Catalytic Converter Retaining Nuts
    GM2179318Courtesy of GENERAL MOTORS COMPANY
  36. Install the catalytic convertor (1) to cross-over pipe (2) and tighten the fasteners (3) to 45 N.m (33 lb ft).
  37. Make sure that the exhaust system is clear of all other components and chassis. If the exhaust system is not clear of all the other components loosen all retaining fasteners and re-align.
  38. Install the right post-catalytic converter HO2S. Refer to Heated Oxygen Sensor Replacement - Bank 1 Sensor 2 .
  39. Install the left post-catalytic converter HO2S. Refer to Heated Oxygen Sensor Replacement - Bank 2 Sensor 2 .
  40. Lower the vehicle.
  41. Install the right exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement - Right Side .
  42. Install the right pre-catalytic convertor HO2S sensor. Refer to Heated Oxygen Sensor Replacement - Bank 1 Sensor 1 .
  43. Install the oil level indicator tube. Refer to Oil Level Indicator and Tube Removal .
  44. Install the left exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement - Left Side .
  45. Install the left pre-catalytic convertor HO2S. Refer to Heated Oxygen Sensor Replacement - Bank 2 Sensor 1 .
  46. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .
