Module Power, Ground, Serial Data, and Transmission System References Wiring Schematics

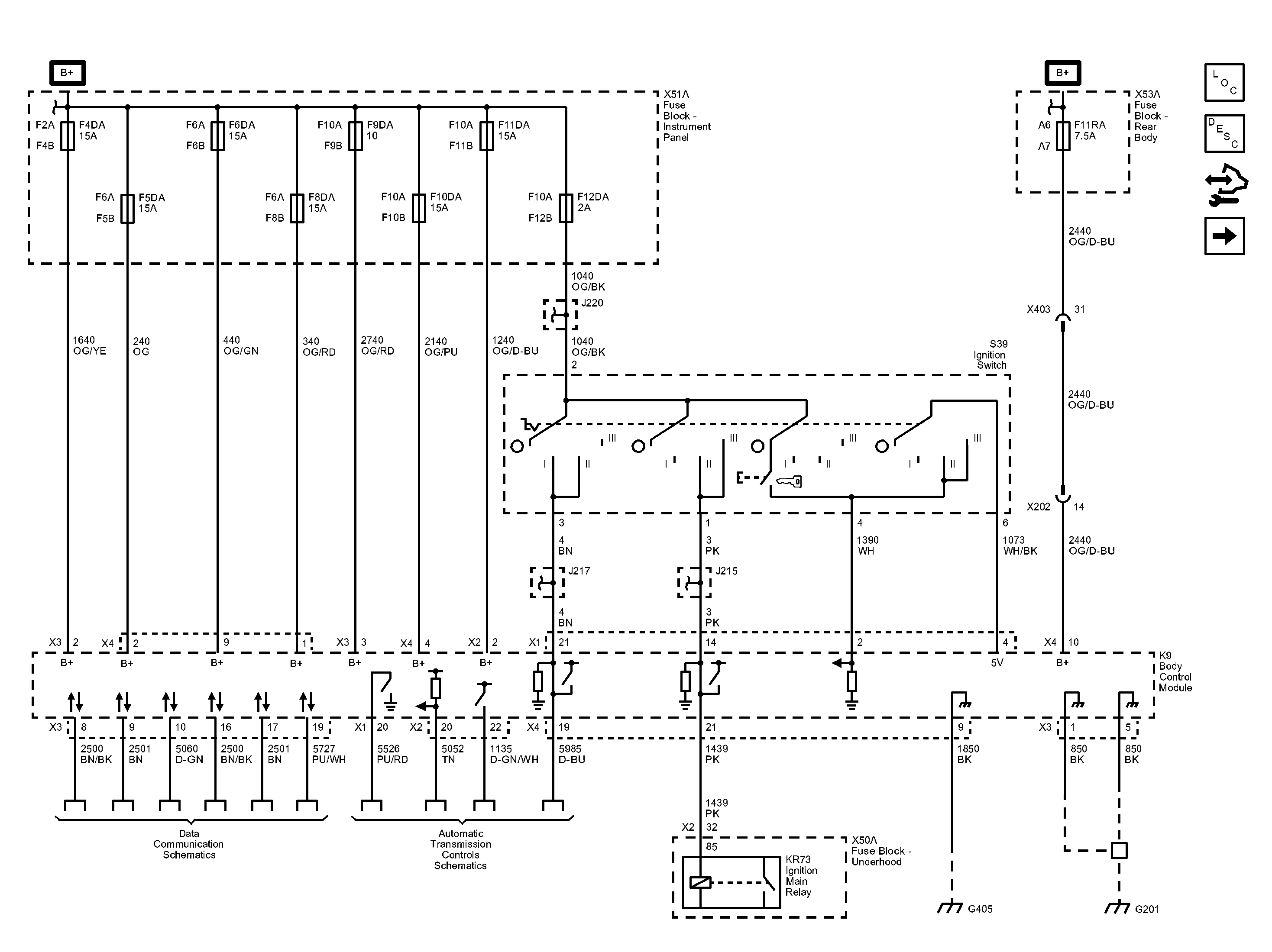

Fig 1: Module Power, Ground, Serial Data, and Transmission System References Wiring Schematic
GM2662711Courtesy of GENERAL MOTORS COMPANY
